Touchthink Medical S Series Windows Vehicle Mounted All-In-One Panel PC

TPC101-W20

TPC101-W20
TPC101-W20
TPC101-W20
TPC101-W20
TPC101-W20





  • Professionally Designed For Heavy-duty Special Vehicles.
  • Excellent In Shockproof, Dustproof, and Waterproof.
  • Wide voltage up to 12-36V with multiple power supply options
  • Self-developed motherboard, independent molded appearance
  • ACC delay switch, power-on delay for 5S, shutdown delay for 40S
  • CAN port is available for better connection with the vehicle
 tpc-w2 industrial monitor features image

Quick Inquiry
Touchthink Medical S Series Windows Vehicle Mounted All-In-One Panel PC:
TPC101-W20








    Required fields are marked *, We’ll respond within 12 hours.

    Product View

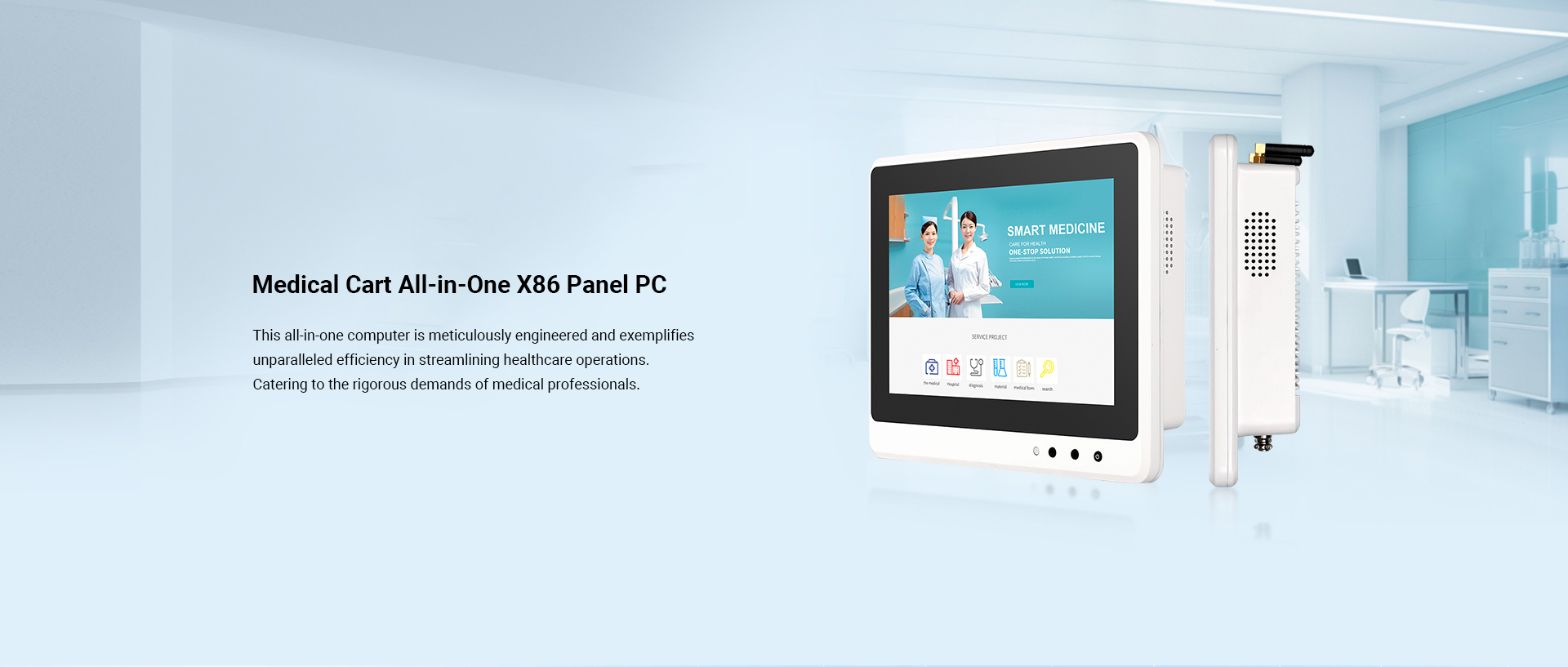

    Medical vehicle series products are intelligent terminal series devices specially developed for complex medical environments. This series of products are made of aluminum alloy. The front panel is IP65 waterproof, the back
    cover is dust-proof and the interface is waterproof. They are compact and durable. Capacitive touch screen, with the function of display key panel, makes the operation more intuitive; The shockproof structure layout inside the
    fuselage is specially designed for the requirements of anti vibration, anti-interference, anti-static, radiation protection, waterproof and dust-proof of medical mobile carts. It is compatible with 99% medical industry software and
    can meet various needs of medical mobile carts.

     tpc101 a2
     tpc101 a2
     tpc101 a2
     tpc101 a2
     tpc101 a2
     tpc101 a2

    General Info
    ManufacturerTouth Think
    Product Manualpdf iconTPC101-W20.pdf
    Screen Size10.1 inch
    Hardware Configuration
    CPUIntel Celeron J1900 quad-core 1.99GHz
    Memory4GB DDR3 1333/1600M(Optional:8GB)
    Storage64GB SSD (Optional:128GB/256GB/512GB)
    ChipsetIntel Bay trail SOC

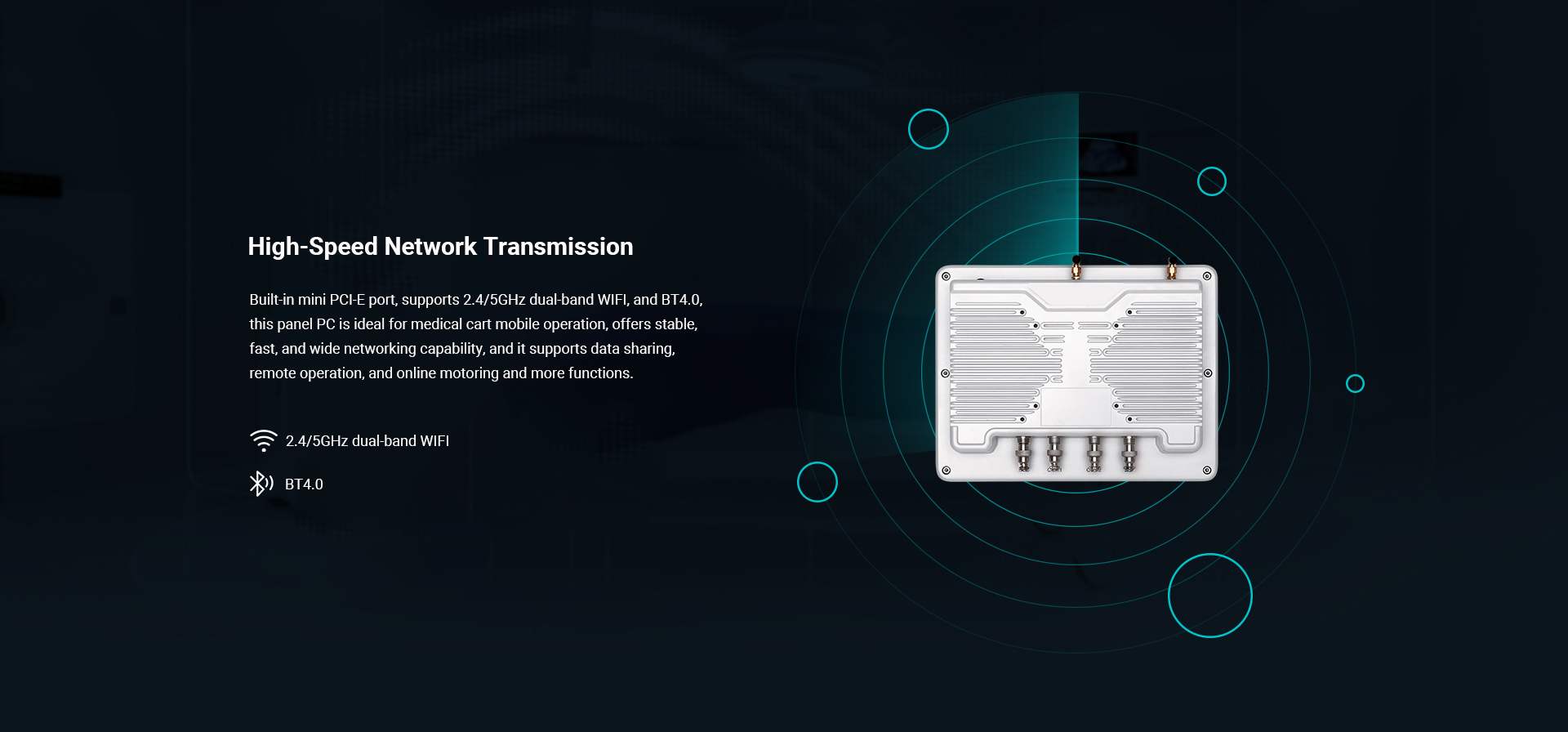

    WiFi2.4GHz/5GHz, Dual frequencyWiFi
    BluetoothBT4.0(Optional)
    GPSSupport (optional)
    Operating SystemWin7/10/Ubuntu/Centos/Redhat/Debian/Linux
    SpeakerSupport (8Ω3W *2)
    Product Model
    Capacitive TouchTPC101-W2012
    Physical Characteristics
    Overall Dimensions W271.5x H209.3x D55mm
     tpc101 m2 dimensions

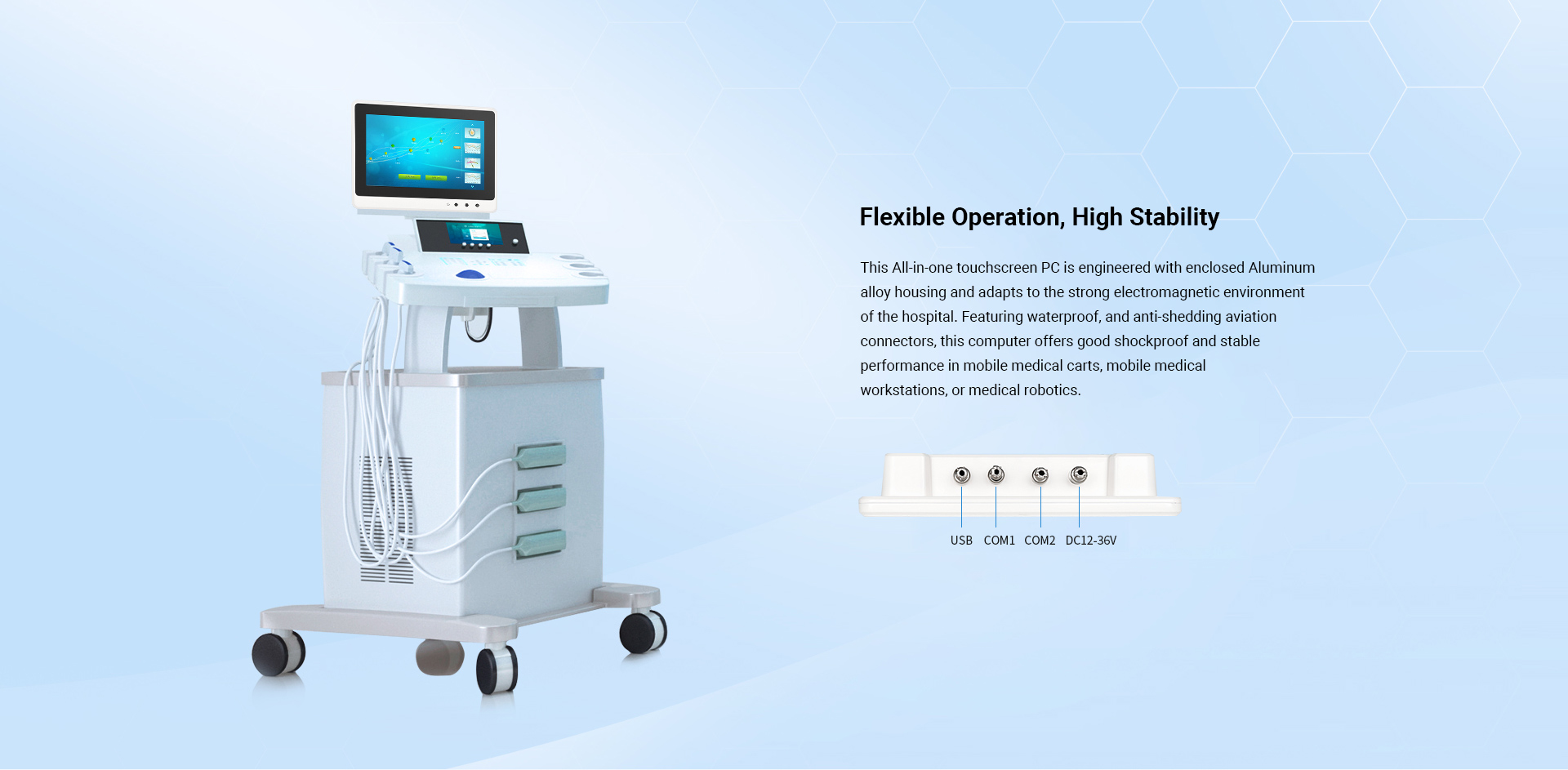

    Interface Parameters
    Power interface 1 * Waterproof aviation head interface (GX12-3 pin), Support 12V-36V wide voltage power supply
    USB 1 * Waterproof aviation head interface (GX12-4 pin)
    COM 2 * Waterproof aviation head interface (GX12-4 pin)
     tpc101 m2 interface
    Screen Parameters
    LCD Size10.1″ TFT LCD
    Resolution 800*1280
    Aspect Ratio 16:10
    Viewing Angle 85/85/85/85 (L/R/U/D)
    Colour 16.7M
    Brightness 300 cd/m2
    Contrast Ratio 1000:1

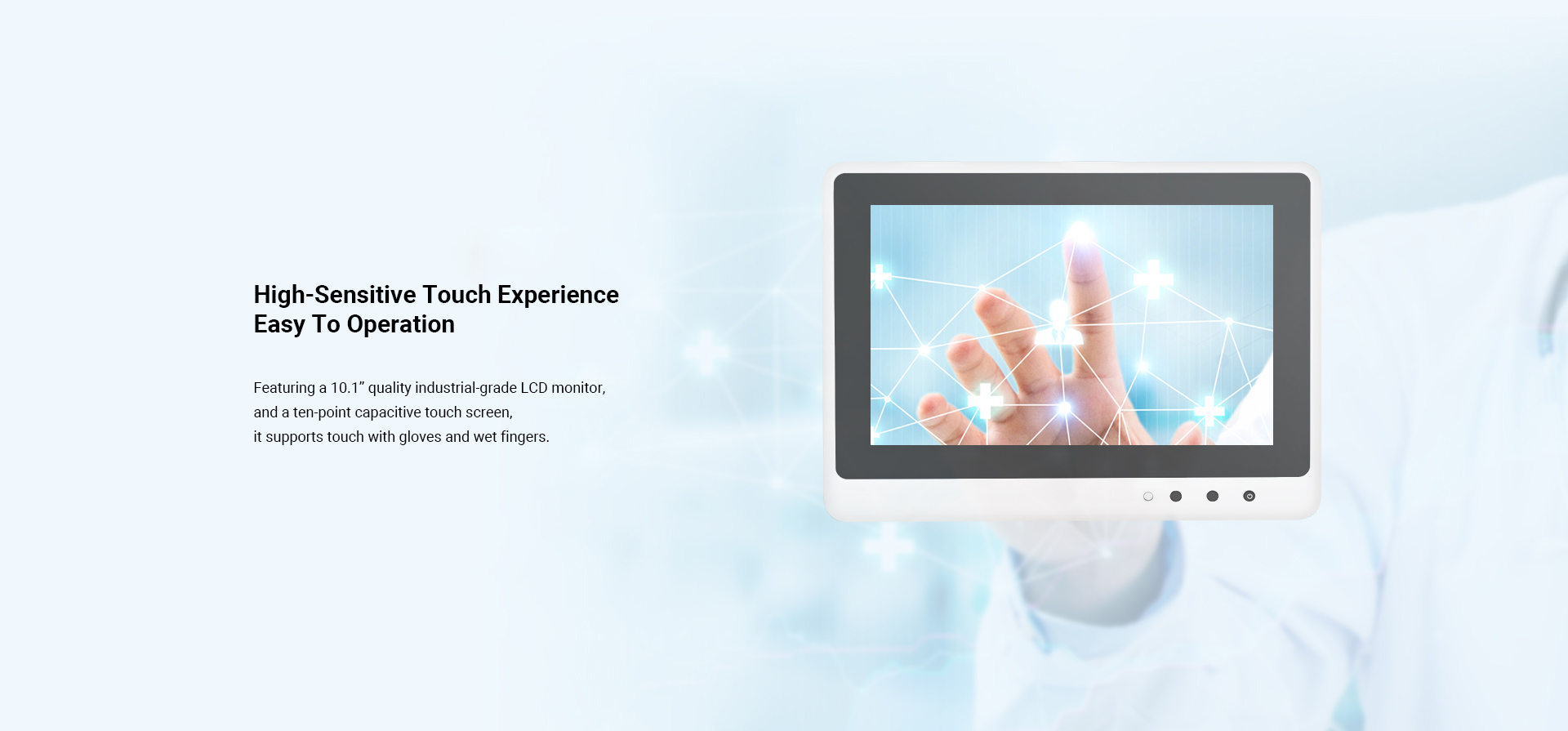

    Touch Parameters
    Touch Type Capacitive touch screenResistance touch screenNon-touch
    Touch Point10-point Touch ProjectionSingle Point/
    Transmittance≥88%≥78%≥92%
    Input ModeHandwriting or
    Capacitance pen
    Fingertip or stylus/
    Controller communicationUSBUSB/
    Reliability Parameters
    Working Temperature-10°C~60°C
    Storage Temperature-20°C~70°C
    Relative HumidityHumidity: 95% Non-Condensing
    Vibration ProtectionIEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis
    Impact ProtectionIEC 60068-2-27, Half sine wave, Lasting for 11ms
    Product CertificationCCC/CE/FCC/EMC/CB/ROHS
    Waterproof GradeThe front panel reaches IP65 protection level
    Power Parameters
    Power inputDC 12V~36V
    Static power18W
    Installation Method


    Packing List
     machine packing list
    Other Items
    Warranty3-Year
    ColorBlack(Silver Optional)
    After-sales ServiceCall Center and on-line Technical Support
    Place of OriginGuangdong, China
    ExpressUPS/DHL/Fedex/EMS,etc
    Delivery Time1-3 Working Days
    Packaging DetailsPacked in Standard EXPORT Cartons
    Delivery PortShenzhen/Hongkong
    CustomizationLogo,Packaging,Graphic
