Touchthink Outdoor High Brightness A Series Touch Screen Monitor
TPC101-M8
- UV anti-UV touch screen
- Optical bonding process can prevent screen fogging effectively

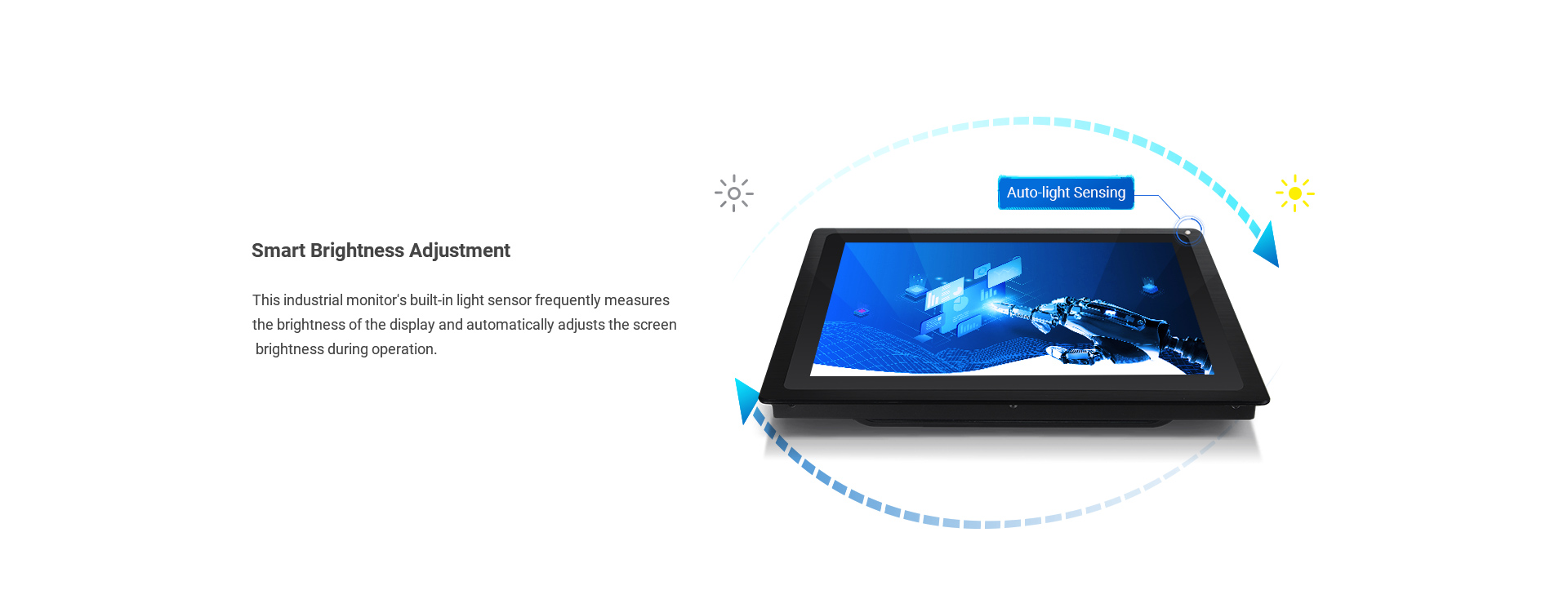

- The screen brightness can be adjusted, supporting automatic sensitivity adjustment and manual key adjustment.
- Comply with EMC anti-electromagnetic interference standard
- Industrial protection, and adapt to various harsh environments
Quick Inquiry
Touchthink Outdoor High Brightness A Series 10.1 Inch Touch Screen Monitor:
TPC101-M8
TPC101-M8
Required fields are marked *, We’ll respond within 12 hours.
Product View

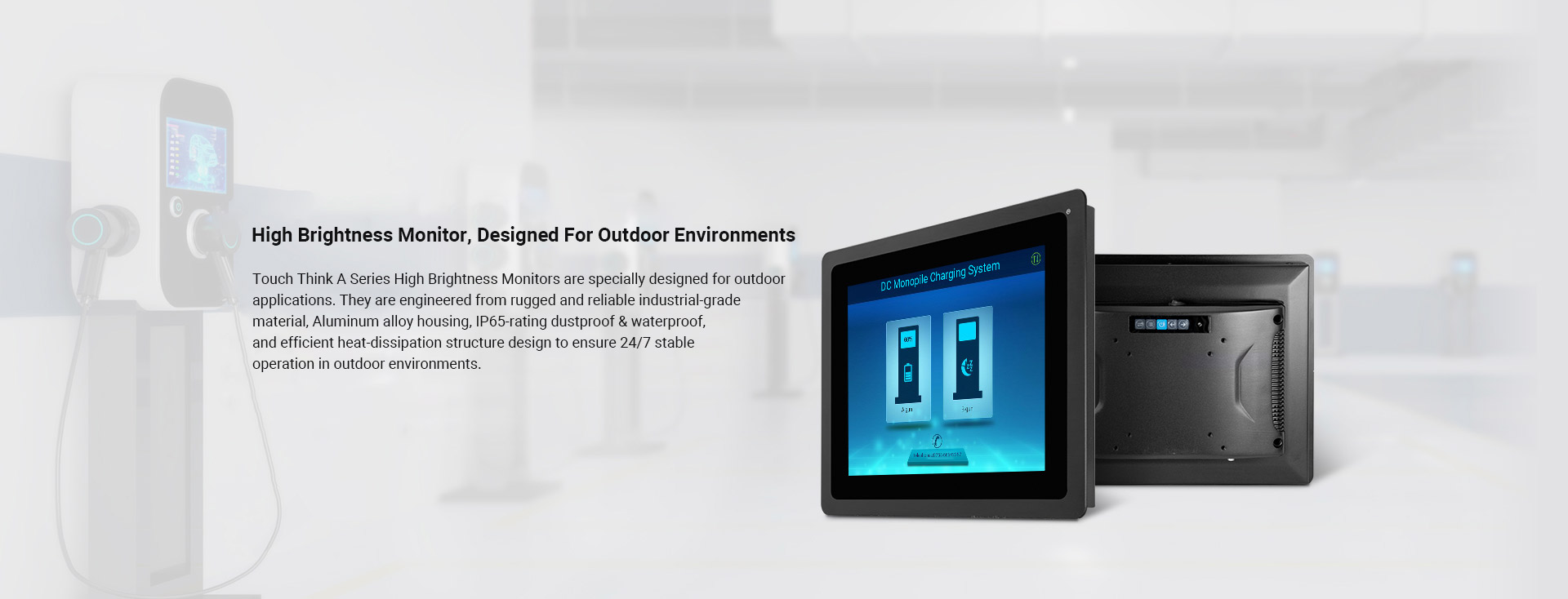

It adopts optical bonding to prevent screen fogging, and has an automatic photosensitive probe built in, which supports automatic photosensitive adjustment and manual key adjustment. The LCD screen has a wide temperature and high brightness function, and the flat front panel is up to IP65 dustproof and waterproof, which can cope
with the harsh outdoor environment with large temperature difference and high humidity.
| General Info | |
|---|---|
| Manufacturer | Touth Think |
| Product Manual |  TPC101-M8.pdf |
| Screen Size | 10.1 inch |
| Product Model | |
|---|---|
| Non-Touch | TPC101-M800 |
| Capacitive Touch | TPC101-M810 |
| Resistive Touch | TPC101-M820 |
| Hardware Configuration | |
|---|---|
| CPU | RTD2513 |
| Key Function | AUTO/MENU/POWER/LEFT/RIGHT |
| System Language | Multilingual (default: English) |
| Video Input | PC-RGB:Format Up to 1920*1080@60HZ Color 16bit/24bit/32bit |
| Physical Characteristics | |
|---|---|
| Overall Dimensions | W293.6x H193.6x D53.5mm |
| Size of Opening | W276.5 x H176.5mm |

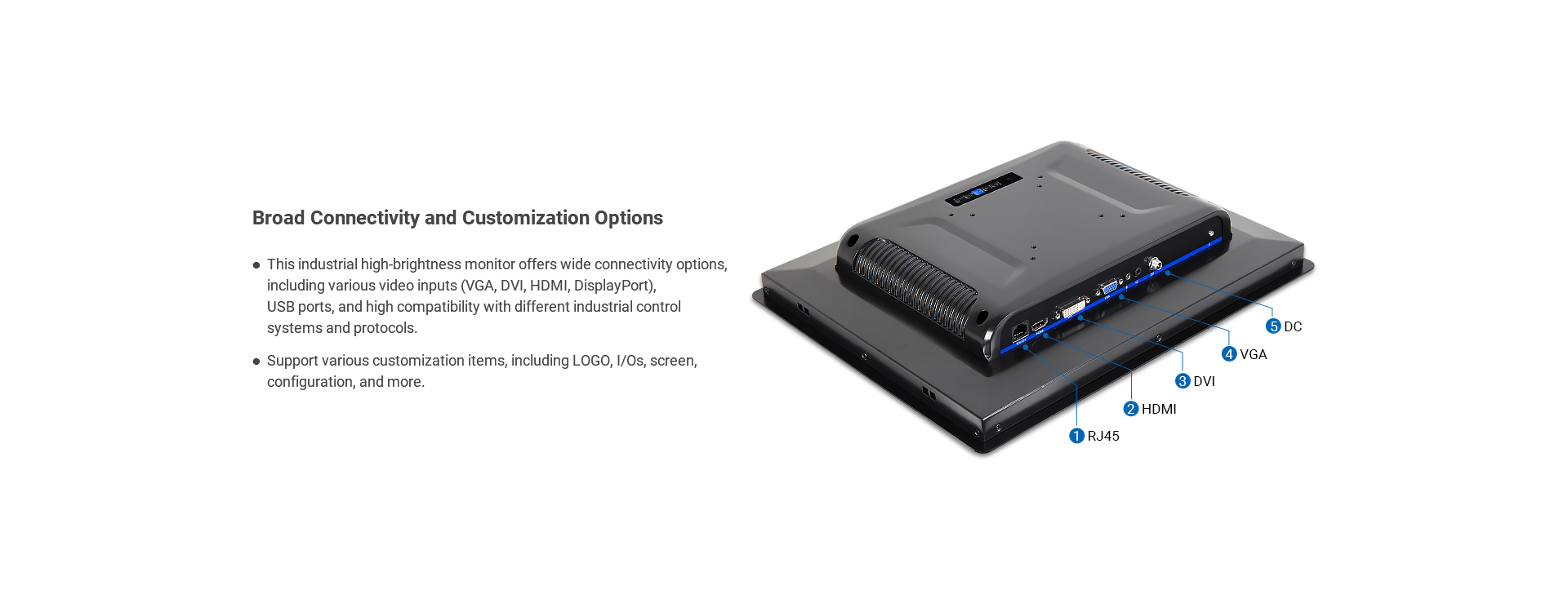

| Interface Parameters | |
|---|---|
| Power interface1 | 1*Industrial terminal Support 12-36V wide voltage power supply |
| Power interface2 | 1*DC2.1, Support 12V-36V wide voltage power supply |
| Touch interface | 1*TOUCH RJ45 |
| Network interface | 1*LAN, 10M/100M/1000M adaptive Ethernet |
| VGA | 1*VGA, Analog signal transmission |
| Audio Interface | 1* Audio output, support audio output |
| HDMI | 1*HDMI, Support HDMI data input, With a maximum of 1080P |
| DVI | 1*DVI, Digital signal transmission |
| Brightness switch | Manual brightness and automatic brightness switch button |
| Ground column | Support(1*GND) |
| Screen Parameters | |
|---|---|
| LCD Size | 10.1″ TFT LCD |
| Resolution | 1280*800 |
| Aspect Ratio | 16:10 |
| Viewing Angle | 80/80/80/80 (L/R/U/D) |
| Colour | 16.7M |

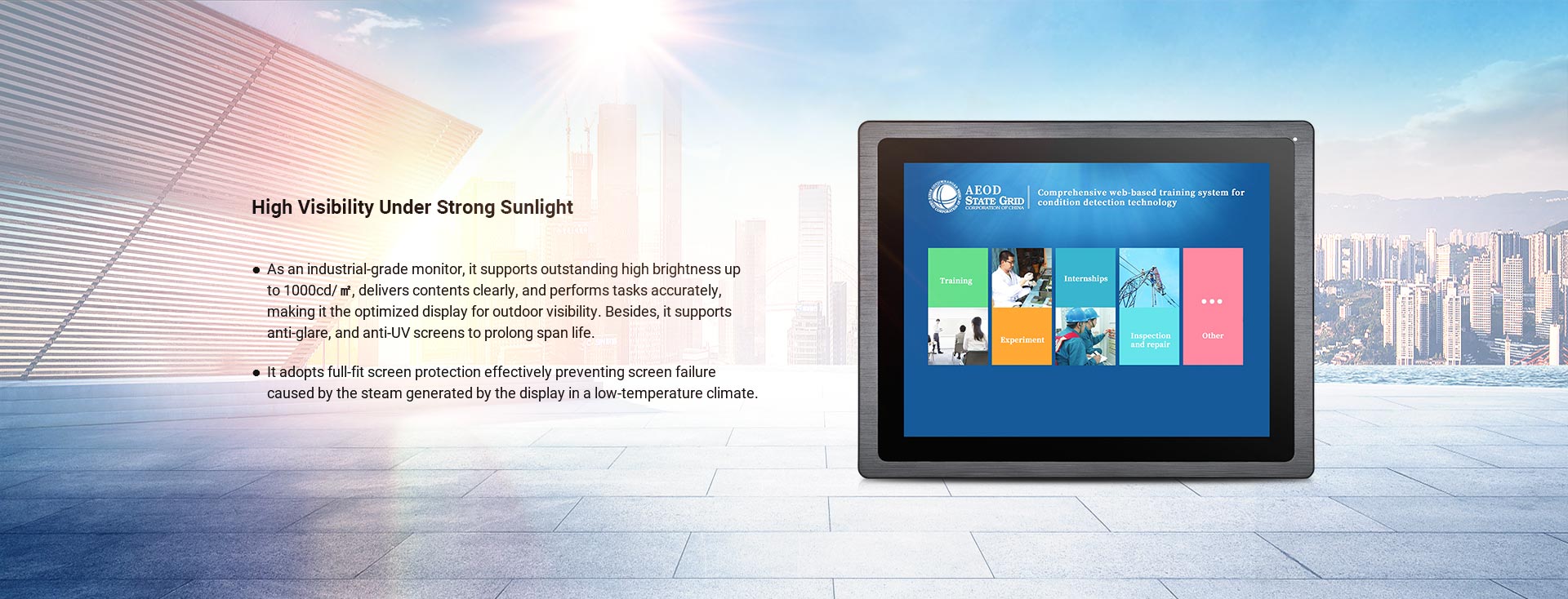

| Brightness | 800 cd/㎡ |
| Contrast Ratio | 1000:1 |
| Touch Parameters | |||
|---|---|---|---|
| Touch Type | Capacitive touch screen | Resistance touch screen | Non-touch |
| Touch Point | 10-point Touch Projection | Single Point | / |
| Transmittance | ≥88% | ≥78% | ≥92% |
| Input Mode | Handwriting or Capacitance pen | Fingertip or stylus | / |
| Controller communication | USB | USB | / |
| Reliability Parameters | |
|---|---|
| Working Temperature | -20°C~70°C |
| Storage Temperature | -30°C~80°C |
| Relative Humidity | Humidity: 95% Non-Condensing |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Product Certification | CCC/CE/FCC/EMC/CB/ROHS |
| Waterproof Grade | The front panel reaches IP65 protection level |
| Power Parameters | |
|---|---|
| Power input | DC 12V~36V |
| Static power | 18W |
| Installation Method |
|---|
| Packing List |
|---|
| Other Items | |
|---|---|
| Warranty | 3-Year |
| Color | Black |
| After-sales Service | Call Center and on-line Technical Support |
| Place of Origin | Guangdong, China |
| Express | UPS/DHL/Fedex/EMS,etc |
| Delivery Time | 1-3 Working Days |
| Packaging Details | Packed in Standard EXPORT Cartons |
| Delivery Port | Shenzhen/Hongkong |
| Customization | Logo,Packaging,Graphic |
