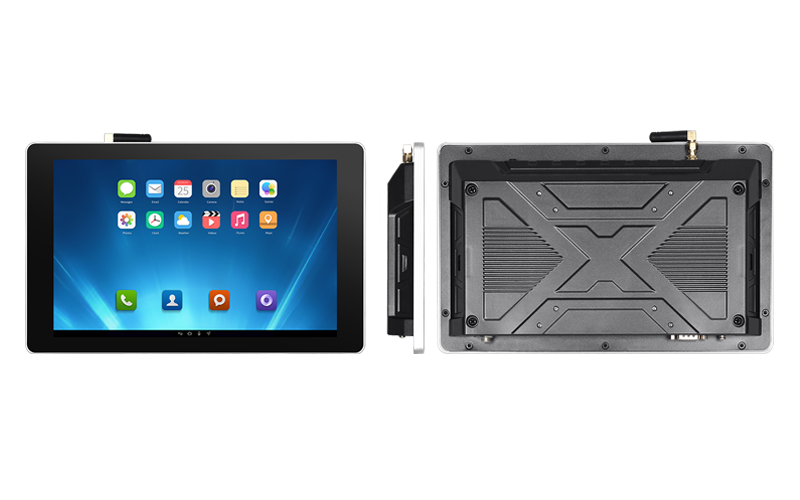

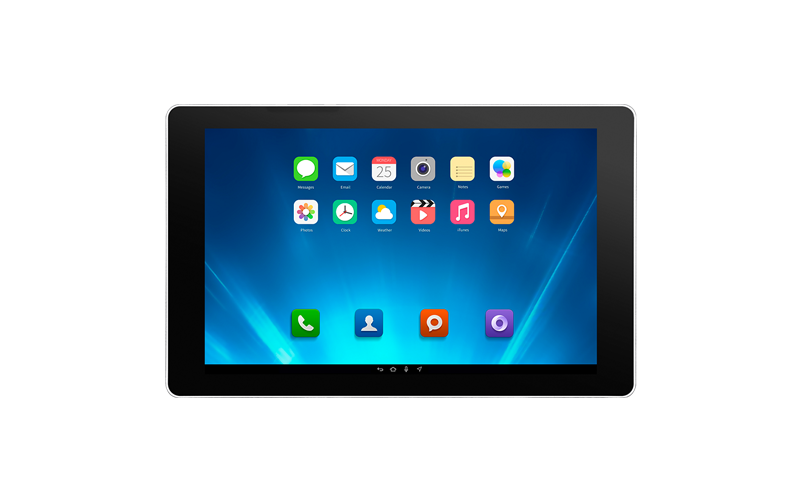

Touch Think 4th Gen RK3588 Android All-In-One Panel PC
TPC101-A26
- Industrial aesthetic design, stylish and simple appearance
- Pure flat panel IP65 dust-proof and waterproof.
- Self-developed ARM architecture industrial motherboard
- RK3588 Octa-core 64-bit: Quad-Core Cortex-A76 + Quad-Core Cortex-A55 architecture, Up to 2.1GHz
- Built-in independent NPU with 1TOPS AI computing power
- Provide SDK package, Support secondary development and upgrade customization
Quick Inquiry
Touch Think 4th Gen Android All-In-One PC:
TPC101-A26
TPC101-A26
Required fields are marked *, We’ll respond within 12 hours.
Product View

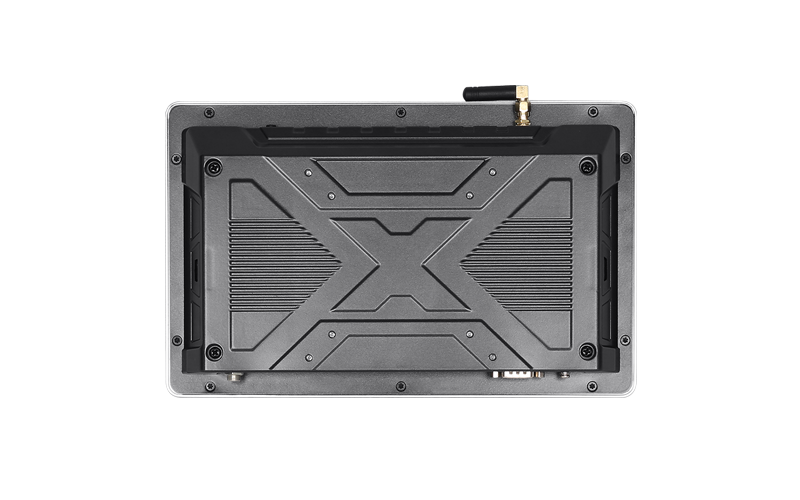

The whole industrial panel PC adopts self-developed industrial motherboard, built-in independent NPU with 1TOPS AI computing power, supporting lightweight AI application development. Aluminium alloy flat panel, fanless fully enclosed integrated design, front IP65 dustproof and waterproof design. The whole industrial panel PC has high scalability, practicality and EMC compatibility.
| General Info | |
|---|---|
| Manufacturer | Touth Think |
| Product Manual |  TPC101-A26.pdf |
| Screen Size | 10.1 inch |
| Hardware Configuration | |
|---|---|
| CPU | RK3588, Octa-core 64-bit Quad-core Cortex-A76 + Quad-core Cortex-A55) architecture, Up to 2.1GHz |
| Memory | 8GB LPDDR4 (Optional 16GB/32GB) |
| Storage | 64GB eMMC (128GB/256GB Optional) |
| GPU | ARM Mali-G610 MP4 |
| NPU | Built-in NPU with 1TOPS AI computing power |
| WiFi | Support WIFI |
| Bluetooth | Bluetooth 5.2 |
| Operating System | Android 12.0/Linux 5.10/Ubuntu 20.04/Debian 11 |
| Product Model | |
|---|---|
| Non-Touch | TPC101-A2600 |
| Capacitive Touch | TPC101-A2610 |
| Resistive Touch | TPC101-A2620 |
| Physical Characteristics | |
|---|---|

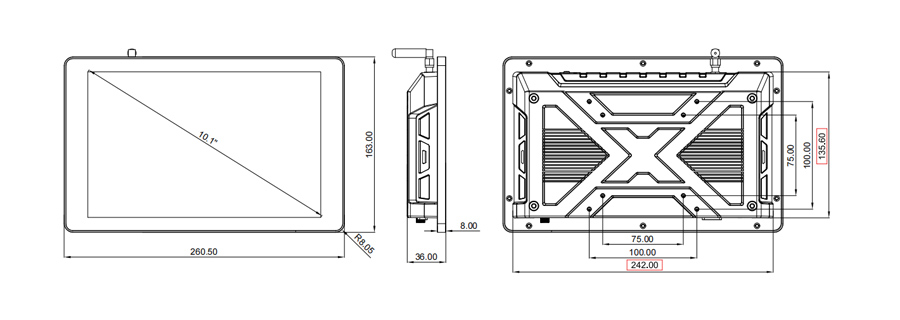

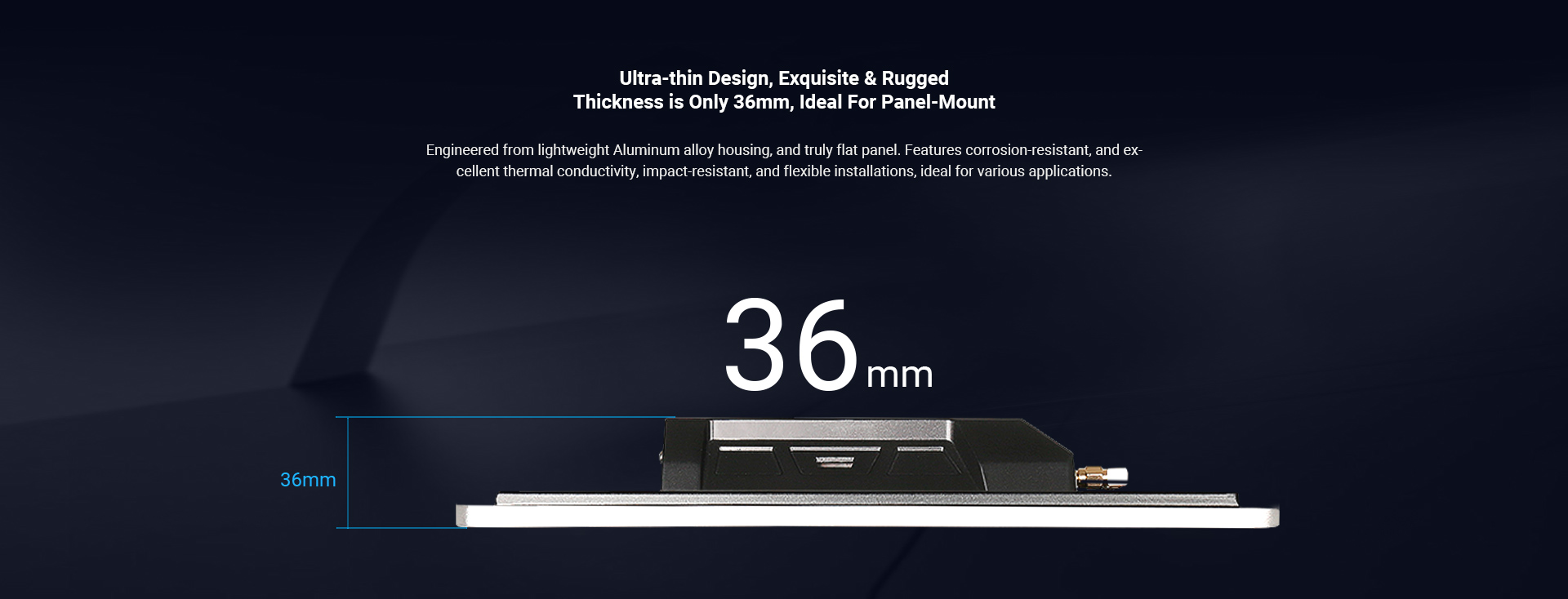

| Overall Dimensions | W260.5x H163x D36mm |
| Size of Opening | W244 x H137.6mm |

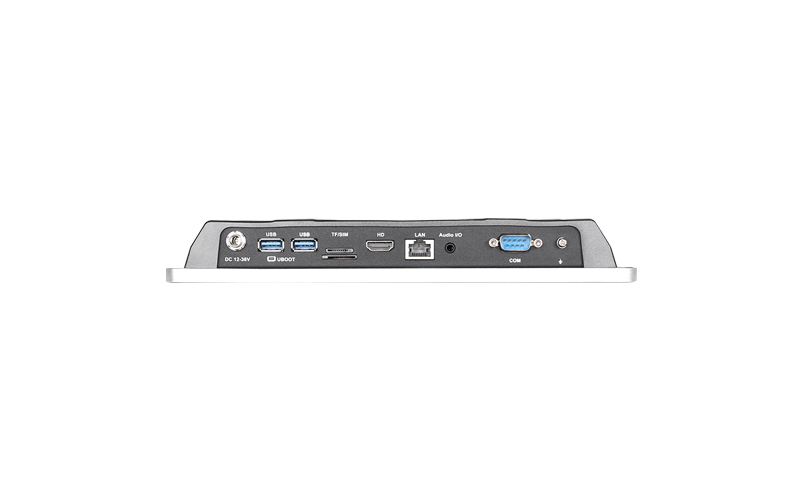

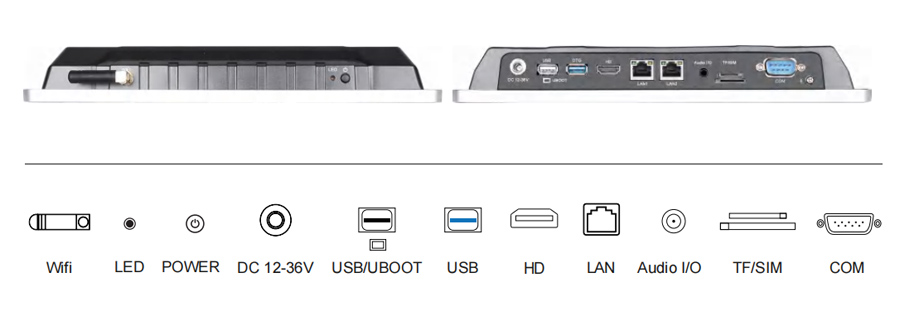

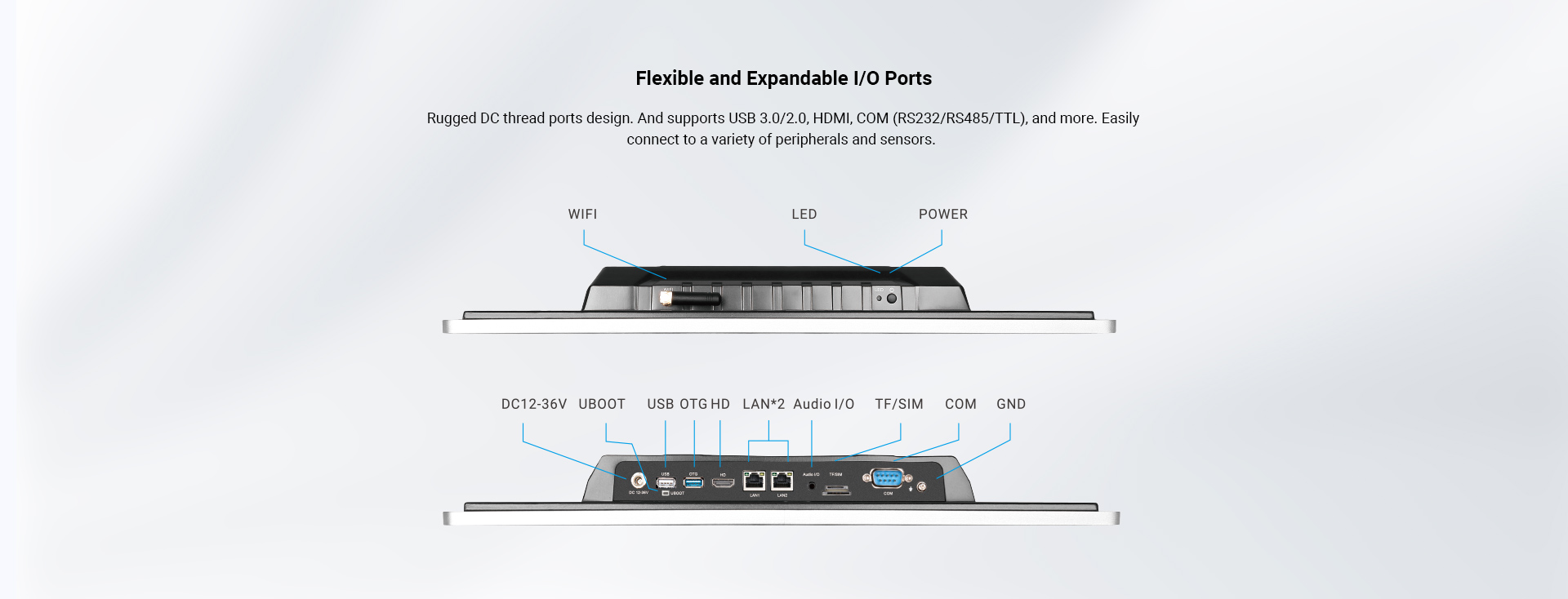

| Interface Parameters | |
|---|---|
| Power interface | 1*DC, Supporting 12V-36V power input |
| USB | 1*USB, 1*OTG |
| TF | 1*TF card standard interface |
| SIM | 1*SIM, Supporting various formats (Depending on 3G/4G module) |
| HDMI | 1*HDMI, Supporting HDMI data output, Up to 4K |
| Network Interface | 1*LAN, 10M/100M/1000M adaptive Ethernet |
| Audio Interface | 1*Audio I/O, Support audio input and output |
| Reset key | Support (1*UBOOT) |
| COM | 1*RS232 |

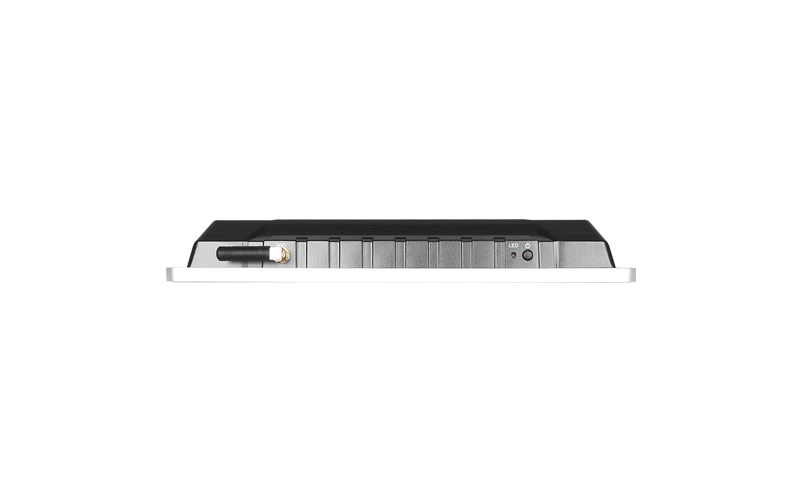

| WiFi Antenna | 1*WiFi antenna |
| Power | 1*Power Button |
| Grounding | 1*GND |
| Screen Parameters | |
|---|---|
| LCD Size | 10.1″ TFT LCD |
| Resolution | 800*1280 |
| Aspect Ratio | 16:10 |
| Viewing Angle | 85/85/85/85 (L/R/U/D) |
| Colour | 16.7M |
| Brightness | 300 cd/m2 |
| Contrast Ratio | 1000:1 |
| Touch Parameters | |||
|---|---|---|---|
| Touch Type | Capacitive touch screen | Resistance touch screen | Non-touch |
| Touch Point | 10-point Touch Projection | Single Point | / |
| Transmittance | ≥88% | ≥78% | ≥92% |
| Input Mode | Handwriting or Capacitance pen | Fingertip or stylus | / |
| Controller communication | USB | USB | / |

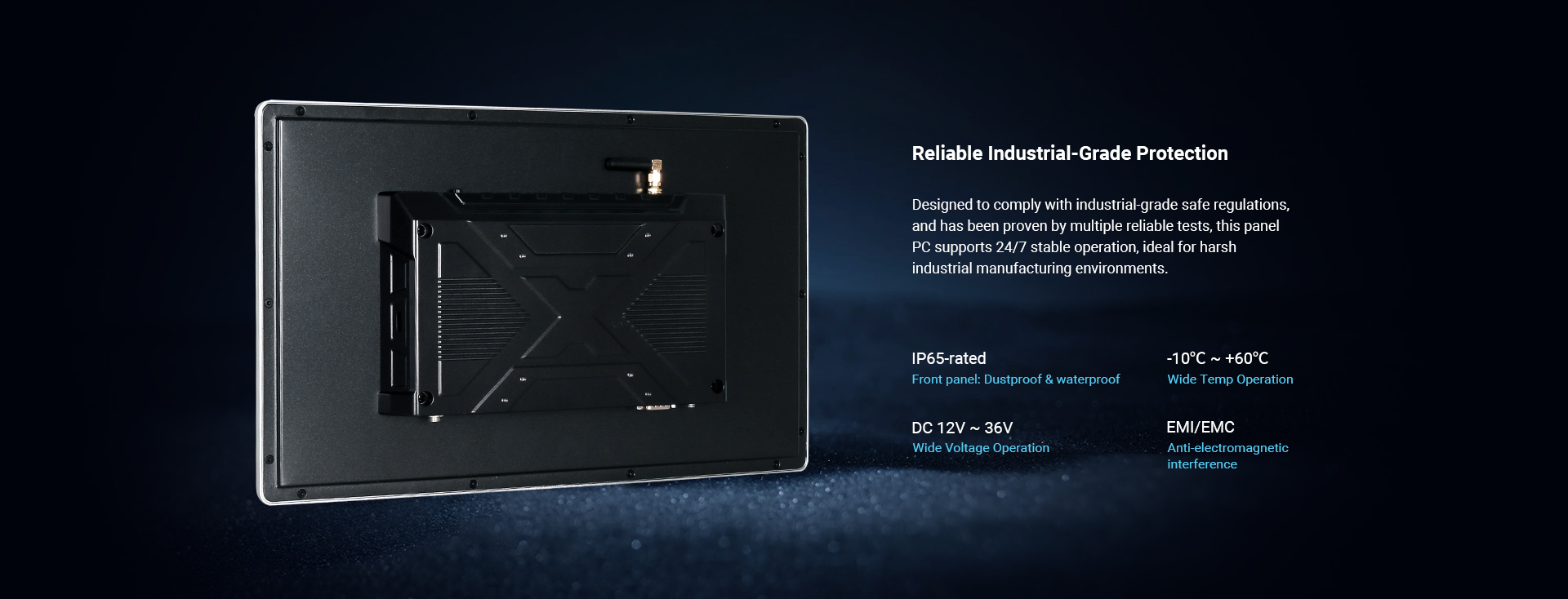

| Reliability Parameters | |
|---|---|
| Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
| Relative Humidity | Humidity: 95% Non-Condensing |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Product Certification | CCC/CE/FCC/EMC/CB/ROHS |
| Waterproof Grade | The front panel reaches IP65 protection level |
| Power Parameters | |
|---|---|
| Power input | DC 12V~36V |
| Static power | 18W |

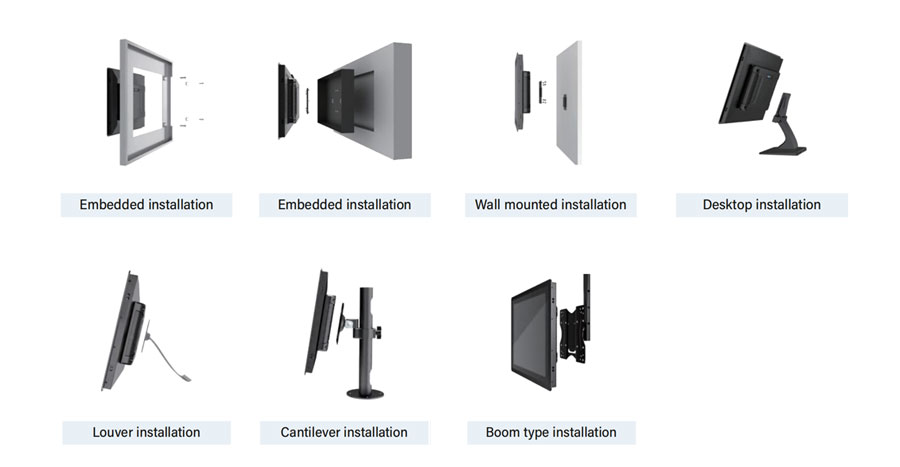

| Installation Method |
|---|

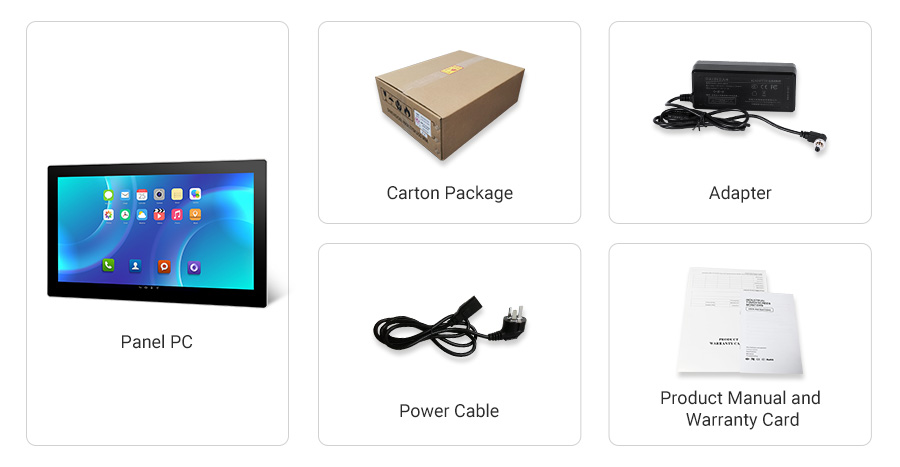

| Packing List |
|---|
| Other Items | |
|---|---|
| Warranty | 3-Year |
| Color | Black / Silver |
| After-sales Service | Call Center and on-line Technical Support |
| Place of Origin | Guangdong, China |
| Express | UPS/DHL/Fedex/EMS,etc |
| Delivery Time | 1-3 Working Days |
| Packaging Details | Packed in Standard EXPORT Cartons |
| Delivery Port | Shenzhen/Hongkong |
| Customization | Logo,Packaging,Graphic |
