Touch Think 4th Gen A Series Android All-In-One Panel PC
TPC116-A4
- Stylish and simple appearance, Independent mold opening
- High precision die-casting aluminum molding, Efficient heat dissipation
- Self-developed ARM architecture industrial motherboard
- Comply with EMC anti-electromagnetic interference standard
- Industrial-grade protection, Suitable for various environments
- Provide SDK package and support secondary development
Quick Inquiry
Touch Think 4th Gen Android All-In-One PC:
TPC116-A4
TPC116-A4
Required fields are marked *, We’ll respond within 12 hours.
Product View
The whole machine is made of aluminum alloy flat panel, fanless and totally enclosed integrated design, and independently developed industrial motherboard. Various configuration schemes meet different application requirements. It supports desktop, wall-mounted, cantilever, cantilever and other installation modes. The whole machine has low power consumption, good scalability, practicability and EMC compatibility.
| General Info | |
|---|---|
| Manufacturer | Touth Think |
| Product Manual |  TPC116-A4.pdf |
| Screen Size | 11.6 inch |
| Hardware Configuration | |
|---|---|

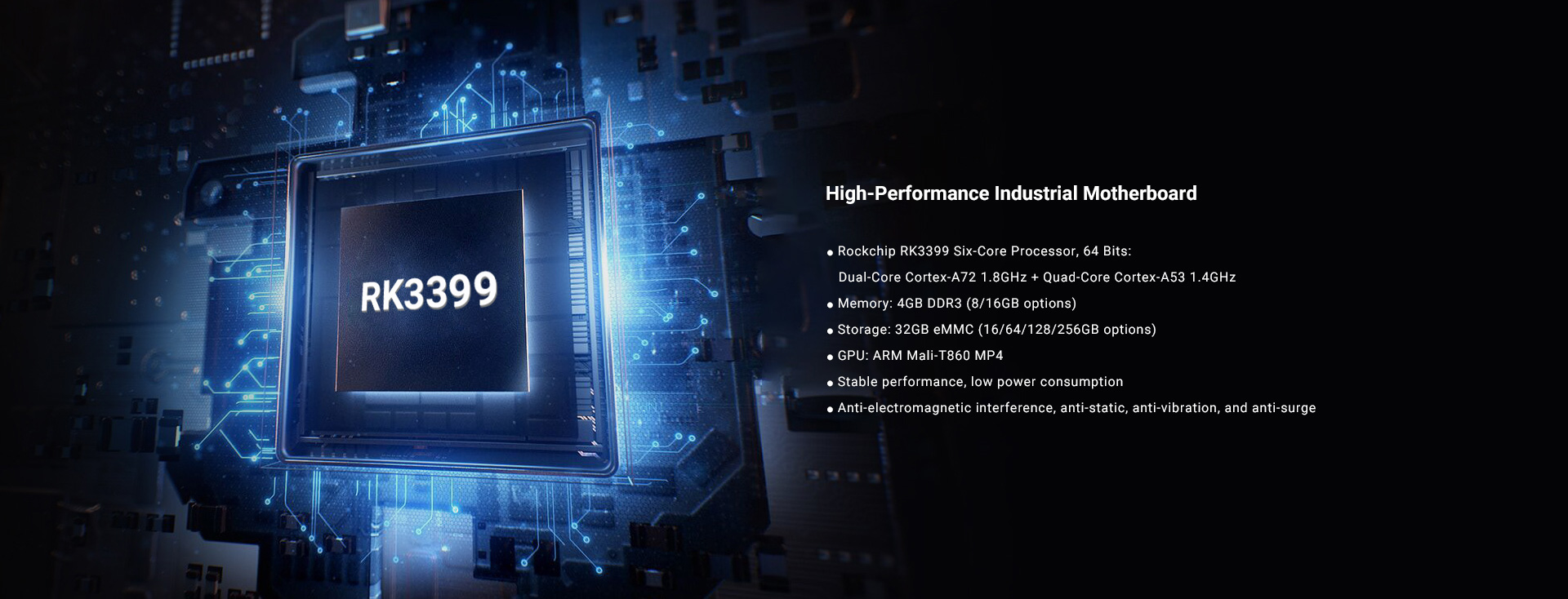

| CPU | RK3399, dual-core Cortex-A72 1.8GHz+quad-core Cortex-A53 1.4GHz |
| Memory | 4G DDR3 (Optional: 8G/16G) |
| Storage | 32G eMMC (Optional: 64G) |
| GPU | Mali-T860MP4 |
| WiFi | Support WIFI |
| Bluetooth | Bluetooth 5.0 |
| Operating System | Android 7.1/9.0/11/Ubuntu18.04/Debian10.0/Linux4.4+QT |
| Other | Support RTC real-time clock and timing switch |
| Product Model | |
|---|---|
| Non-Touch | TPC116-A401 |
| Capacitive Touch | TPC116-A411 |
| Resistive Touch | TPC116-A421 |
| Physical Characteristics | |
|---|---|
| Overall Dimensions | W305.9x H211.2x D48.5mm |
| Size of Opening | W278.51x H184.03mm |
| Interface Parameters | |
|---|---|
| Power interface | 1*DC2.1, Supporting 12V power input |
| USB | 1*USB HOST，1*USB OTG |
| TF | 1*TF card standard interface |
| SIM | 1*SIM, Supporting various formats (Depending on 3G/4G module) |
| HDMI | 1*HDMI, Supporting HDMI data output, Up to 4K |
| Network interface | 1*LAN, 10M/100M/1000M adaptive Ethernet |
| Audio interface | 1*Audio I/O, Support audio input and output |
| Reset key | Support (1*UBOOT) |
| COM | 2*RS232 |
| WiFi antenna | 1*WiFi antenna |
| Grounding column | Support (1*GND) |
| Screen Parameters | |
|---|---|
| LCD Size | 11.6″ TFT LCD |
| Resolution | 1920*1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | 85/85/85/85 (L/R/U/D) |
| Colour | 16.7M |
| Brightness | 300 cd/m2 |
| Contrast Ratio | 1000:1 |
| Touch Parameters | |||
|---|---|---|---|
| Touch Type | Capacitive touch screen | Resistance touch screen | Non-touch |
| Touch Point | 10-point Touch Projection | Single Point | / |
| Transmittance | ≥88% | ≥78% | ≥92% |
| Input Mode | Handwriting or Capacitance pen | Fingertip or stylus | / |
| Controller communication | USB | USB | / |
| Reliability Parameters | |
|---|---|
| Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
| Relative Humidity | Humidity: 95% Non-Condensing |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Product Certification | CCC/CE/FCC/EMC/CB/ROHS |
| Waterproof Grade | The front panel reaches IP65 protection level |
| Power Parameters | |
|---|---|
| Power input | DC 12V~36V |
| Static power | 18W |
| Installation Method |
|---|
| Packing List |
|---|
| Other Items | |
|---|---|
| Warranty | 3-Year |
| Color | Black / Silver |
| After-sales Service | Call Center and on-line Technical Support |
| Place of Origin | Guangdong, China |
| Express | UPS/DHL/Fedex/EMS,etc |
| Delivery Time | 1-3 Working Days |
| Packaging Details | Packed in Standard EXPORT Cartons |
| Delivery Port | Shenzhen/Hongkong |
| Customization | Logo,Packaging,Graphic |
