Touch Think 4th Gen Series A Industrial Monitor
TPC150-M4

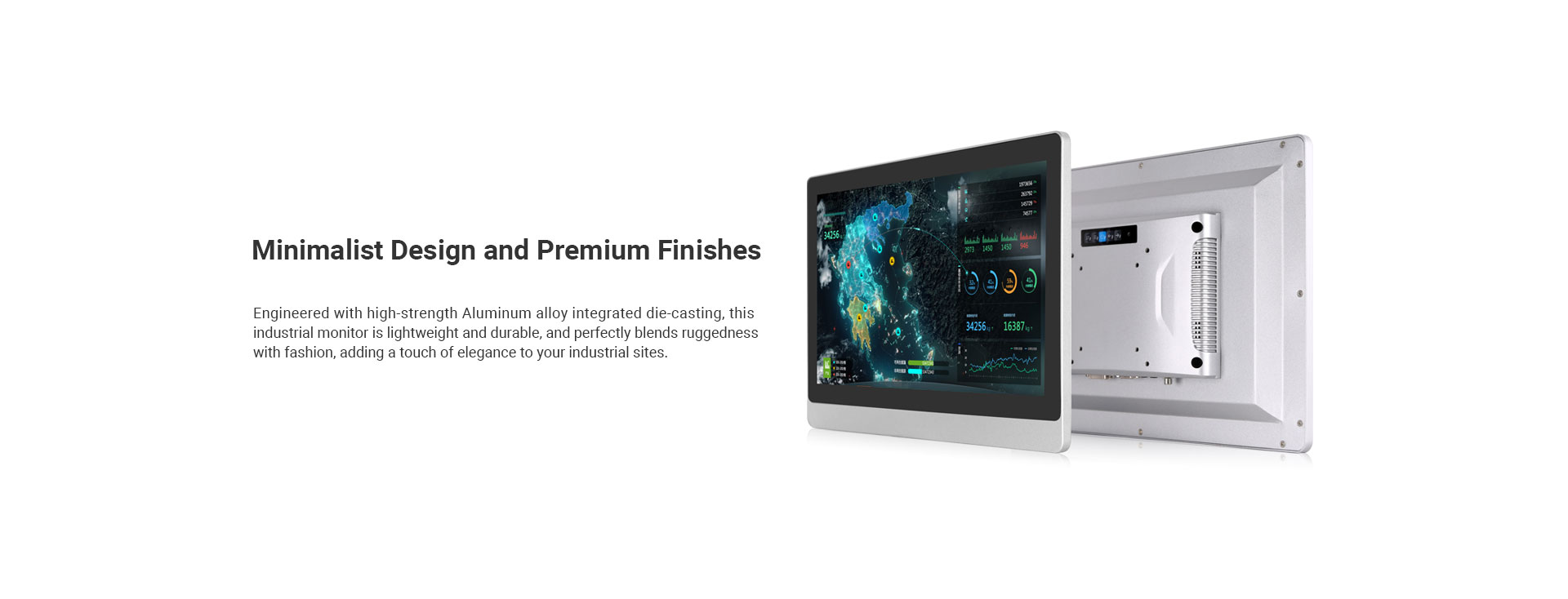

- Sleek, modern, and minimalist appearance. Possess mold-opening capability
- High-precision Aluminum alloy integrated die-casting molding, efficient heat dissipation performance

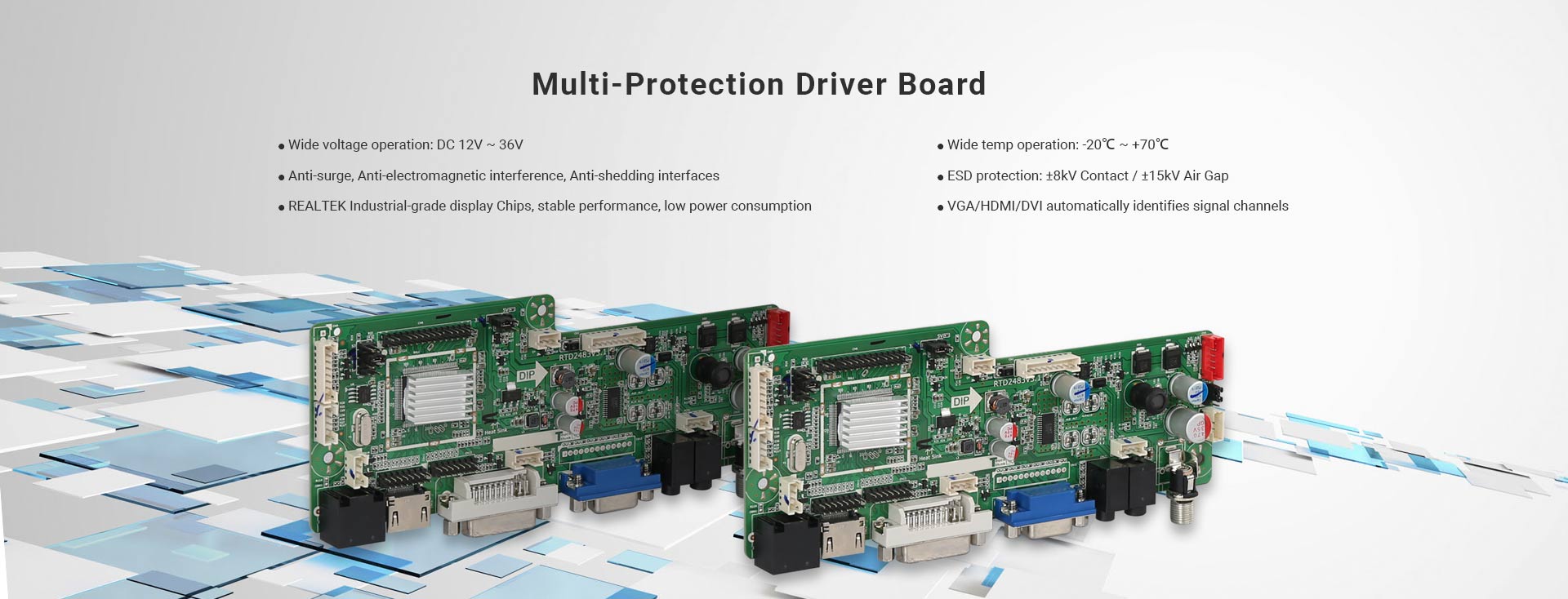

- Self-developed display drive board
- Industrial-grade quality. 24/7 stable operation

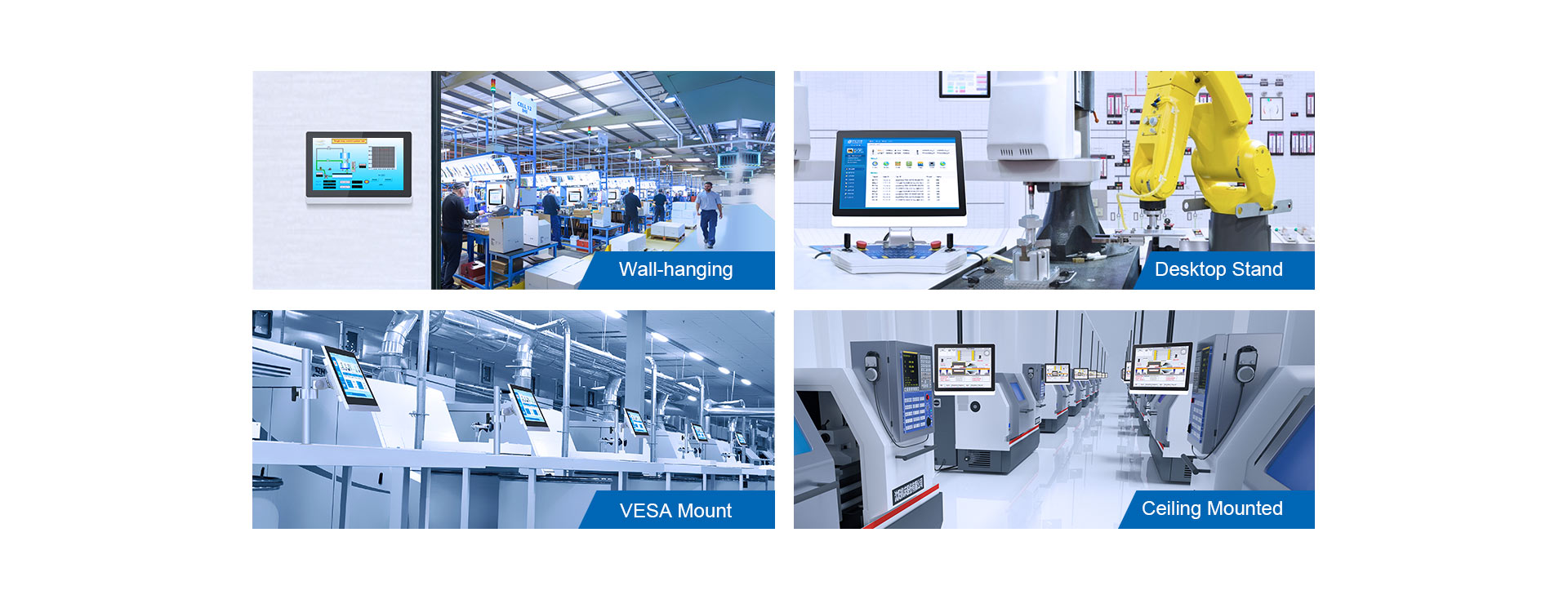

- Support multiple installations: desktop, wall-mounted, VESA, and more
Quick Inquiry
Touch Think 4th Gen Industrial Monitor:
TPC150-M4
TPC150-M4
Required fields are marked *, We’ll respond within 12 hours.
Product View
Touch Think 4th GEN A Series industrial monitor is made of Aluminum alloy housing, a truly flat panel, and a fully enclosed integrated design, supporting desktop, wall-mounted, VESA, and other installation modes. It features low power consumption, high scalability, adaptability, and EMC compatibility. With a sophisticated, and modern look, while rugged and reliable industrial-grade quality, it is widely used in industrial automation, smart retail, and IoT sectors, such as industrial machinery, Poin-of-Sales, Robotics, etc.
| General Info | |
|---|---|
| Manufacturer | Touth Think |
| Product Manual |  TPC150-M4.pdf |
| Screen Size | 15.0 inch |
| Product Model | |
|---|---|
| Non-Touch | TPC150-M401 |
| Capacitive Touch | TPC150-M411 |
| Resistive Touch | TPC150-M421 |
| Physical Characteristics | |
|---|---|
| Overall Dimensions | W350.48x H296.42x D59.7mm |
| Size of Opening | W334.7x H261.6mm |
| Interface Parameters | |
|---|---|
| Grounding column | Support (1*GND) |
| Power interface | 1*DC2.1, Support 12V-36V wide voltage power supply |
| HDMI | 1*HDMI, Support HDMI data input, With a maximum of 1080P |
| Touch interface | 1*TOUCH(RJ45) |
| VGA | 1*VGA, Analog signal transmission |
| DVI | 1*DVI, Digital signal transmission |
| Audio interface | 1*Audio I/O, Support audio input and output |
| Screen Parameters | |
|---|---|
| LCD Size | 15.0″ TFT LCD |
| Resolution | 1024*768 |
| Aspect Ratio | 4:3 |
| Viewing Angle | 85/85/85/85 (L/R/U/D) |
| Colour | 16.7M |
| Brightness | 300 cd/㎡ |
| Contrast Ratio | 1000:1 |
| Touch Parameters | |||
|---|---|---|---|
| Touch Type | Capacitive touch screen | Resistance touch screen | Non-touch |
| Touch Point | 10-point Touch Projection | Single Point | / |
| Transmittance | ≥88% | ≥78% | ≥92% |
| Input Mode | Handwriting or Capacitance pen | Fingertip or stylus | / |
| Controller communication | USB | USB | / |
| Hardware Configuration | |
|---|---|
| CPU | RTD2513 |
| Key Function | AUTO/MENU/POWER/LEFT/RIGHT |
| System Language | Multilingual (default: English) |
| Video Input | PC-RGB:Format Up to 1920*1080@60HZ Color 16bit/24bit/32bit |
| Reliability Parameters | |
|---|---|
| Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
| Relative Humidity | Humidity: 95% Non-Condensing |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Product Certification | CCC/CE/FCC/EMC/CB/ROHS |

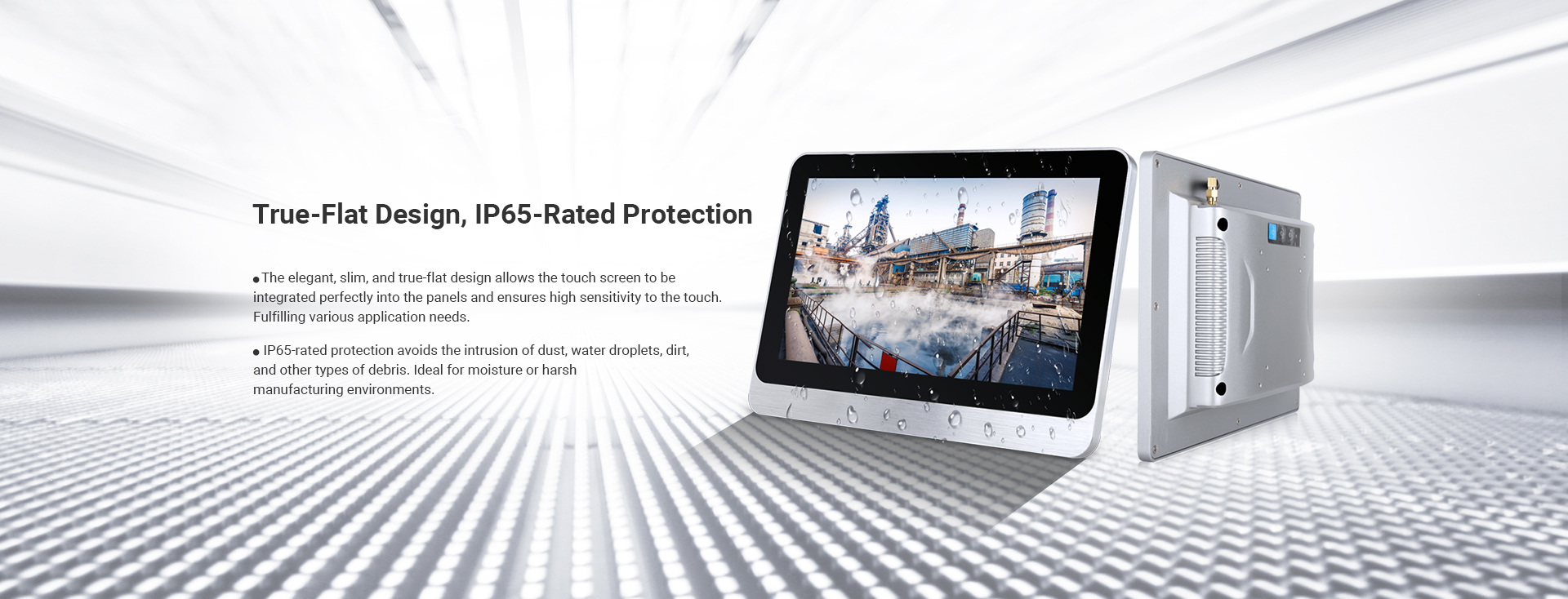

| Waterproof Grade | The front panel reaches IP65 protection level |
| Power Parameters | |
|---|---|
| Power input | DC 12V~36V |
| Static power | 18W |
| Installation Method |
|---|

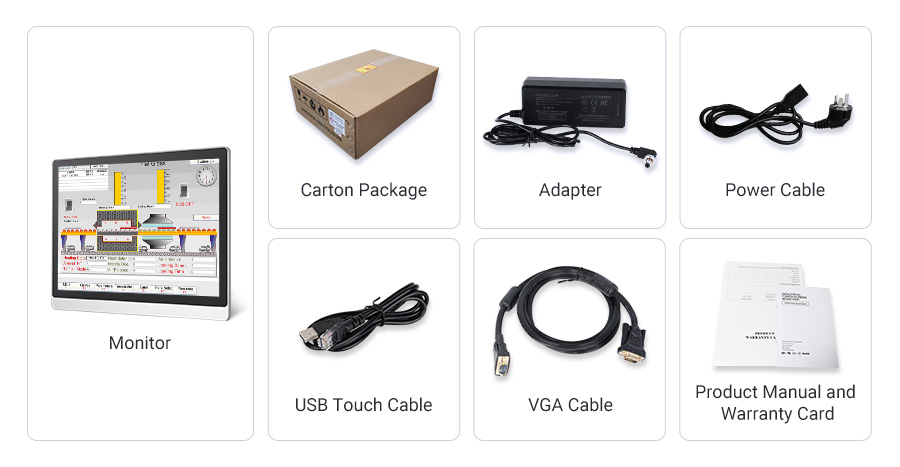

| Packing List |
|---|
| Other Items | |
|---|---|
| Warranty | 3-Year |
| Color | Black |
| After-sales Service | Call Center and on-line Technical Support |
| Place of Origin | Guangdong, China |
| Express | UPS/DHL/Fedex/EMS,etc |
| Delivery Time | 1-3 Working Days |
| Packaging Details | Packed in Standard EXPORT Cartons |
| Delivery Port | Shenzhen/Hongkong |
| Customization | Logo,Packaging,Graphic |
