Touch Think 5th Gen Series A Industrial Monitor
TPC150-M5
- Appearance independent die, front panel narrow frame design
- Strong structure design, anti-vibration, dust-proof, waterproof
- Independently developed high-performance display driver board
- Industrial quality, support diversified customization
- Adapt to dust oil pollution, water mist, strong electromagnetic and high
- Frequency vibration and other complex heavy industry environment
Quick Inquiry
Touch Think 5th Gen Industrial Monitor:
TPC150-M5
TPC150-M5
Required fields are marked *, We’ll respond within 12 hours.
Product View

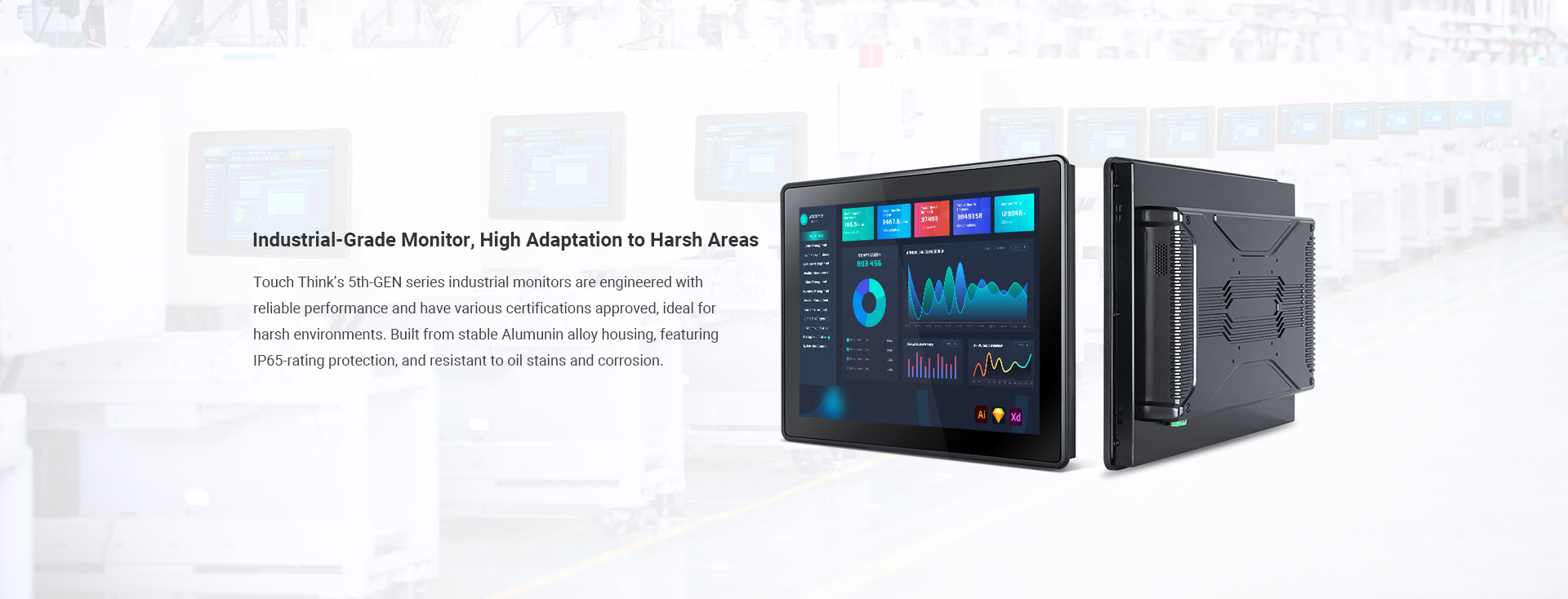

The whole aluminum alloy material, strong structure layout, no fan fully closed design, low power consumption, good scalability, practicability and EMC compatibility performance, designed for a variety of complex environment. It can support embedded, wall-mounted, cantilever and other installation modes, and is widely used in industrial control, military, communication, power and network automation fields.
| General Info | |
|---|---|
| Manufacturer | Touth Think |
| Product Manual |  TPC150-M5.pdf |
| Screen Size | 15.0 inch |
| Product Model | |
|---|---|
| Non-Touch | TPC150-M500 |
| Capacitive Touch | TPC150-M510 |
| Resistive Touch | TPC150-M520 |
| Physical Characteristics | |
|---|---|
| Overall Dimensions | W365.5x H289.5x D64.5mm |
| Size of Opening | W355.5x H279.5mm |
| Interface Parameters | |
|---|---|
| Grounding column | Support (1*GND) |
| Power interface1 | 1*Industrial terminals, Support 12V-36V wide voltage power supply |
| Power interface2 | 1*DC2.1, Support 12V-36V wide voltage power supply |
| HDMI | 1*HDMI, Support HDMI data input, and supports 1080P at most |
| Touch interface | 1*TOUCH(RJ45) |
| VGA | 1*VGA, Analog signal transmission |
| DVI | 1*DVI, Digital signal transmission |
| Audio interface | 1*Audio I/O, Support audio input and output |
| Screen Parameters | |
|---|---|
| LCD Size | 15.0″ TFT LCD |
| Resolution | 1024*768 |
| Aspect Ratio | 4:3 |
| Viewing Angle | 85/85/85/85 (L/R/U/D) |
| Colour | 16.7M |
| Brightness | 300 cd/㎡ |
| Contrast Ratio | 1000:1 |
| Touch Parameters | |||
|---|---|---|---|
| Touch Type | Capacitive touch screen | Resistance touch screen | Non-touch |
| Touch Point | 10-point Touch Projection | Single Point | / |
| Transmittance | ≥88% | ≥78% | ≥92% |
| Input Mode | Handwriting or Capacitance pen | Fingertip or stylus | / |
| Controller communication | USB | USB | / |
| Hardware Configuration | |
|---|---|
| CPU | RTD2513 |
| Key Function | AUTO/MENU/POWER/LEFT/RIGHT |
| System Language | Multilingual (default: English) |
| Video Input | PC-RGB:Format Up to 1920*1080@60HZ Color 16bit/24bit/32bit |
| Reliability Parameters | |
|---|---|
| Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C |
| Relative Humidity | Humidity: 95% Non-Condensing |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Product Certification | CCC/CE/FCC/EMC/CB/ROHS |
| Waterproof Grade | The front panel reaches IP65 protection level |
| Power Parameters | |
|---|---|
| Power input | DC 12V~36V |
| Static power | 18W |
| Installation Method |
|---|

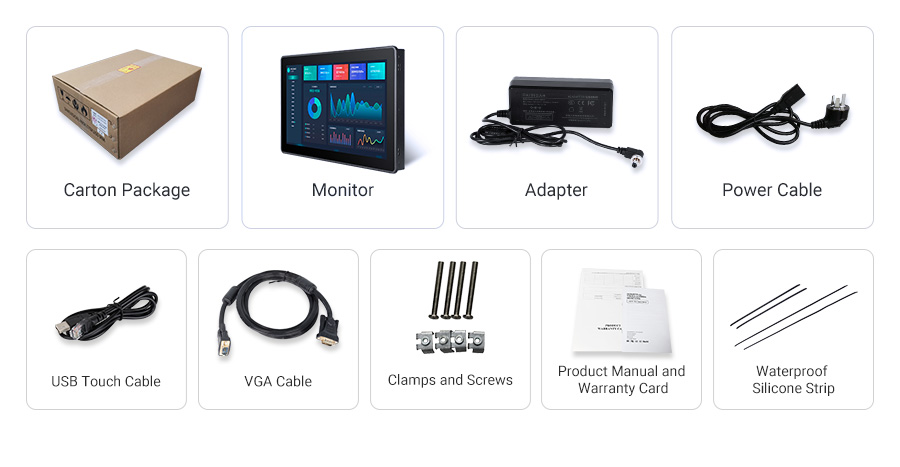

| Packing List |
|---|
| Other Items | |
|---|---|
| Warranty | 3-Year |
| Color | Black / Silver |
| After-sales Service | Call Center and on-line Technical Support |
| Place of Origin | Guangdong, China |
| Express | UPS/DHL/Fedex/EMS,etc |
| Delivery Time | 1-3 Working Days |
| Packaging Details | Packed in Standard EXPORT Cartons |
| Delivery Port | Shenzhen/Hongkong |
| Customization | Logo,Packaging,Graphic |
