Touchthink Vehicle Mounted S Series 10.1 Inch Windows All-In-One Panel PC

TPC101-W7

Technical Specifications
TPC101-W7
TPC101-W7
TPC101-W7
TPC101-W7
TPC101-W7

❮
❯




  • Anti-drop aviation connector design, shockproof and anti-drop, dustproof and waterproof
  • Support ACC time delay shutdown, avoiding the impact of sudden power failure on the device
  • Self-developed motherboard, quad-core powerful processor
  • Optional CAN interface for easy connection with vehicles
tpc-w2 industrial monitor features image

Quick Inquiry
Touchthink Vehicle Mounted S Series 10.1 Inch Windows All-In-One Panel PC :
TPC101-W7








    Required fields are marked *, We’ll respond within 12 hours.

    Product View

    Made of aluminium alloy, the front panel is IP65 waterproof, the back cover is dustproof and the interface is water-proof. Capacitive touch screen, increased front panel button function, more intuitive operation; internal shockproof
    structure layout, specially designed for special vehicles, can meet the needs of industrial special vehicles, high speed rail dispatching platform, agricultural vehicles and other models of matching.

    Vehicle Mounted Windows All-In-One Panel PC
    Vehicle Mounted Windows All-In-One Panel PC
    Vehicle Mounted Windows All-In-One Panel PC
    Vehicle Mounted Windows All-In-One Panel PC
    Vehicle Mounted Windows All-In-One Panel PC
    Vehicle Mounted Windows All-In-One Panel PC

    General Info
    ManufacturerTouch Think
    Product Manualpdf iconTPC101-W7.pdf
    Screen Size10.1 inch
    Hardware Configuration
    CPUIntel Celeron J1900 quad-core 1.99GHz (Maximum 2.4GHz);Upgradeable to I3/I5/I7
    Memory4GB DDR3 1333/1600M（Optional：8GB）
    Storage64GB SSD (Optional：128GB/256GB/512GB)
    Integrated GraphicsIntel HD Graphics
    WiFi2.4GHz/5GHz, Dual frequencyWiFi
    BluetoothBT4.0（Optional）
    Operating SystemWin7/10/Ubuntu/Centos/Redhat/Debian/Linux
    Broad pressureSupport 12V-36V wide voltage
    Product Model
    Non-touchTPC101-W700
    Capacitive TouchTPC101-W710
    Resistive touchTPC101-W720

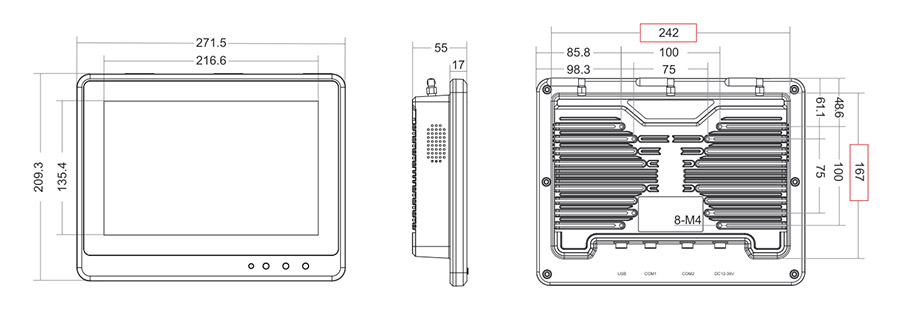

    Physical Characteristics
    Overall Dimensions W271.5x H209.3x D55mm
    tpc101 m2 dimensions

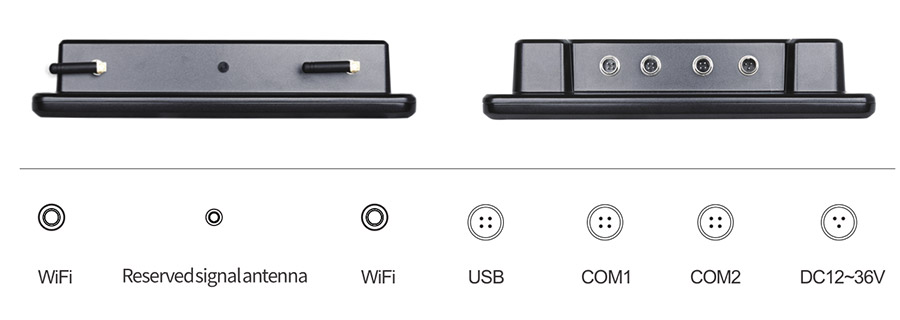

    Interface Parameters
    Power interface 1*waterproof airhead connector (GX12-3 pin), supports 12V~36V wide voltage power supply
    USB 1*waterproof airline head connector (GX12-4 pin)
    COM 2*waterproof airline head connector (GX12-4 pin)
    tpc101 m2 interface
    Screen Parameters
    LCD Size10.1″ TFT LCD
    Resolution 800*1280
    Aspect Ratio 16:10
    Viewing Angle 85/85/85/85 (L/R/U/D)
    Colour 16.7M
    Brightness 300 cd/m2
    Contrast Ratio 1000:1
    Touch Parameters
    Touch Type Capacitive touch screenResistance touch screenNon-touch
    Touch Point10-point Touch ProjectionSingle Point/
    Transmittance≥88%≥78%≥92%
    Input ModeHandwriting or
    Capacitance pen    		Fingertip or stylus/
    Controller communicationUSBUSB/
    Reliability Parameters
    Working Temperature-10°C~60°C
    Storage Temperature-20°C~70°C
    Relative HumidityHumidity: 95% Non-Condensing
    Vibration ProtectionIEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis
    Impact ProtectionIEC 60068-2-27, Half sine wave, Lasting for 11ms
    Product CertificationCCC/CE/FCC/EMC/CB/ROHS
    Waterproof GradeThe front panel reaches IP65 protection level
    Power Parameters
    Power inputDC 12V~36V
    Static power18W
    Installation Method

    Packing List
    machine packing list
    Other Items
    Warranty3-Year(1yr free, 2-3yr paid)
    ColorBlack(Silver Optional)
    After-sales ServiceCall Center and on-line Technical Support
    Place of OriginGuangdong, China
    ExpressUPS/DHL/Fedex/EMS,etc
    Delivery Time1-7 Working Days
    Packaging DetailsPacked in Standard EXPORT Cartons
    Delivery PortShenzhen/Hongkong
    CustomizationAppearance,Screen,Interfaces,Environmental
