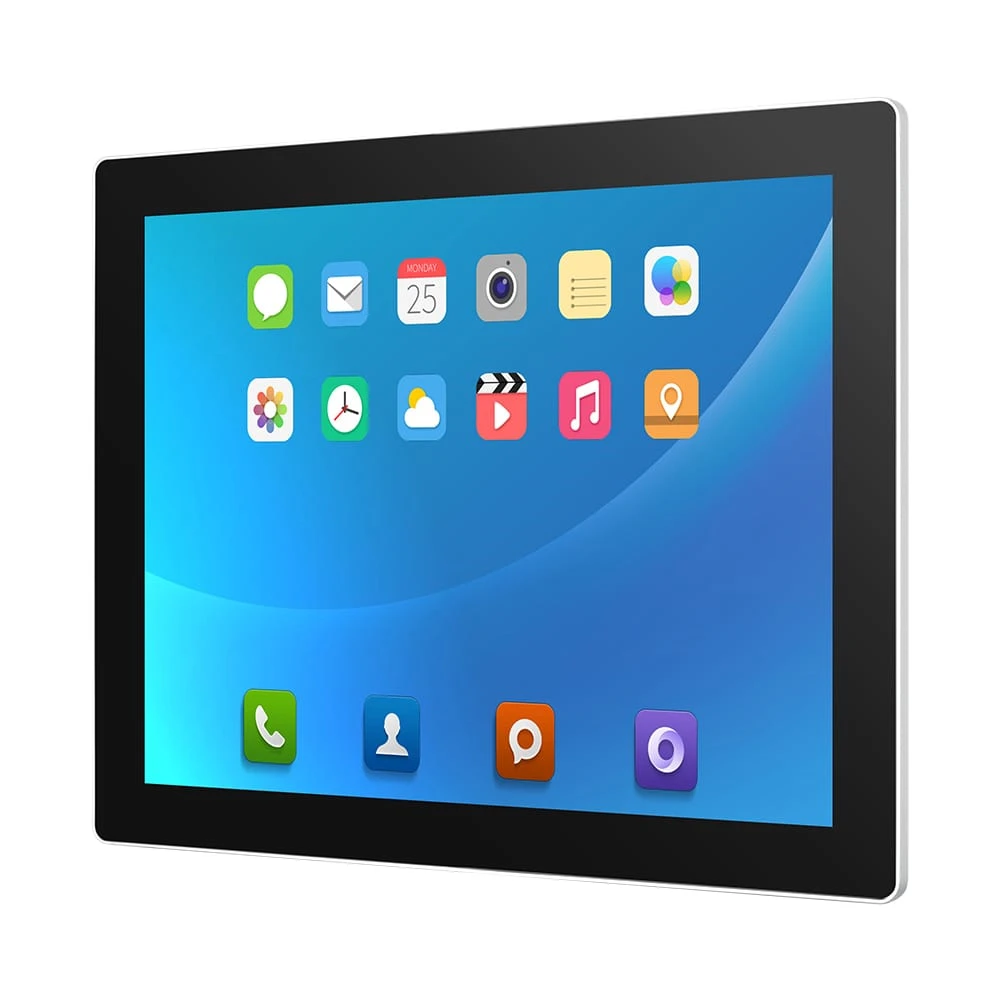

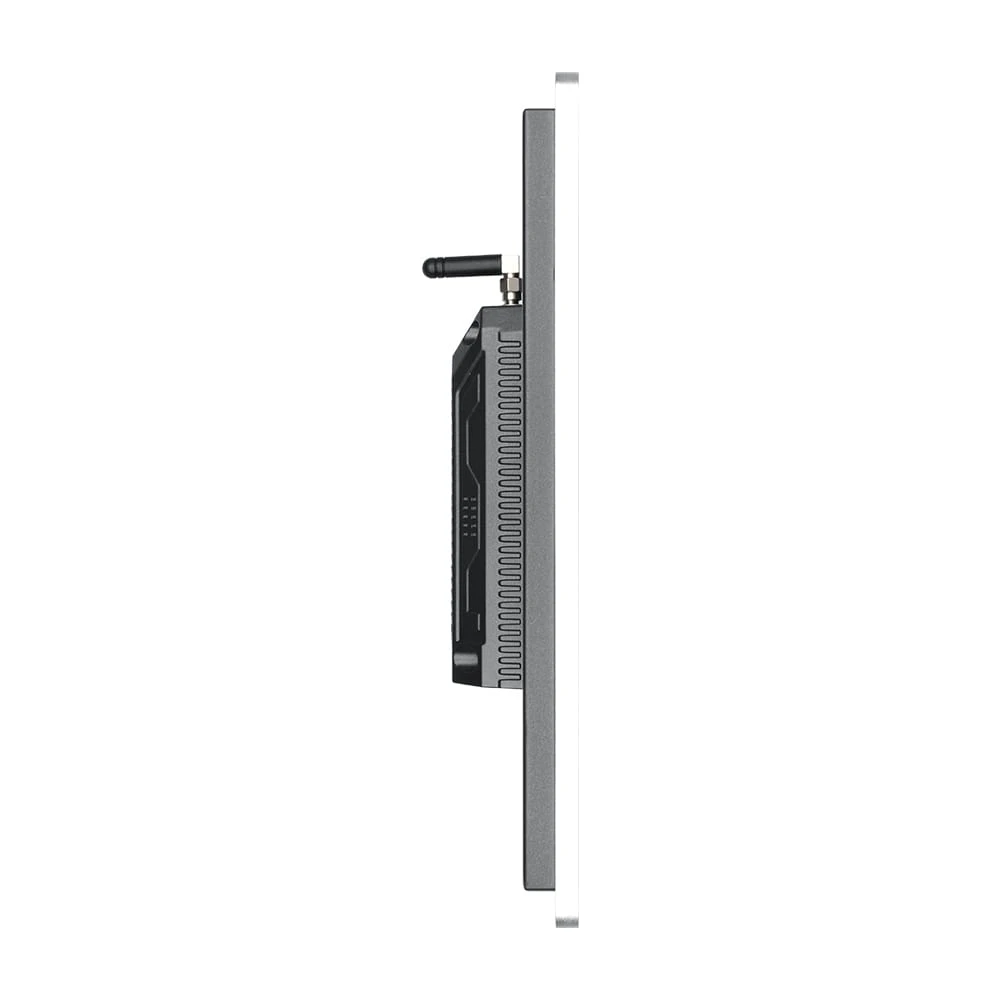

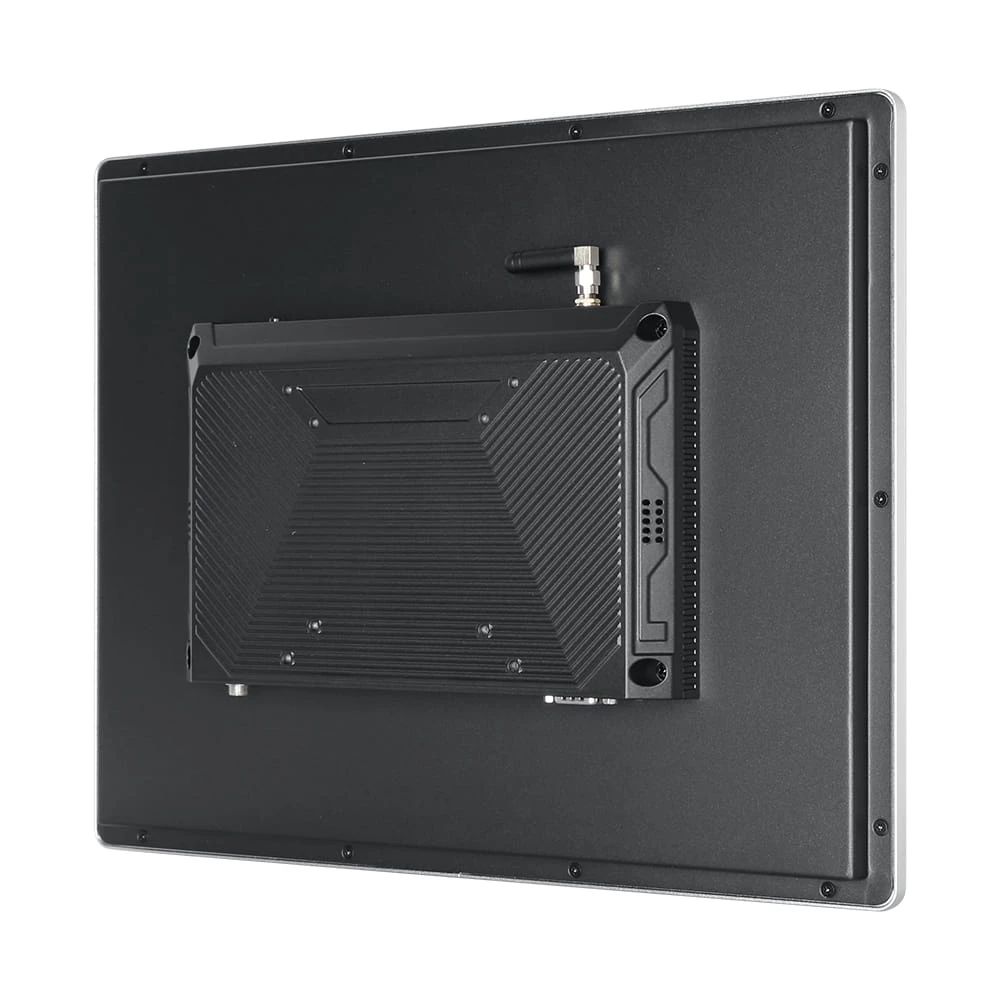

The device features an ultra-slim bezel and an integrated front panel and backplate design. The front panel is dust- and water-resistant, and the unit boasts a compact form factor. It is equipped with an Allwinner A133 motherboard, delivering high performance and low power consumption. It is widely used in industrial control, defense, telecommunications, power, networking, and automated applications for smart self-service terminals.

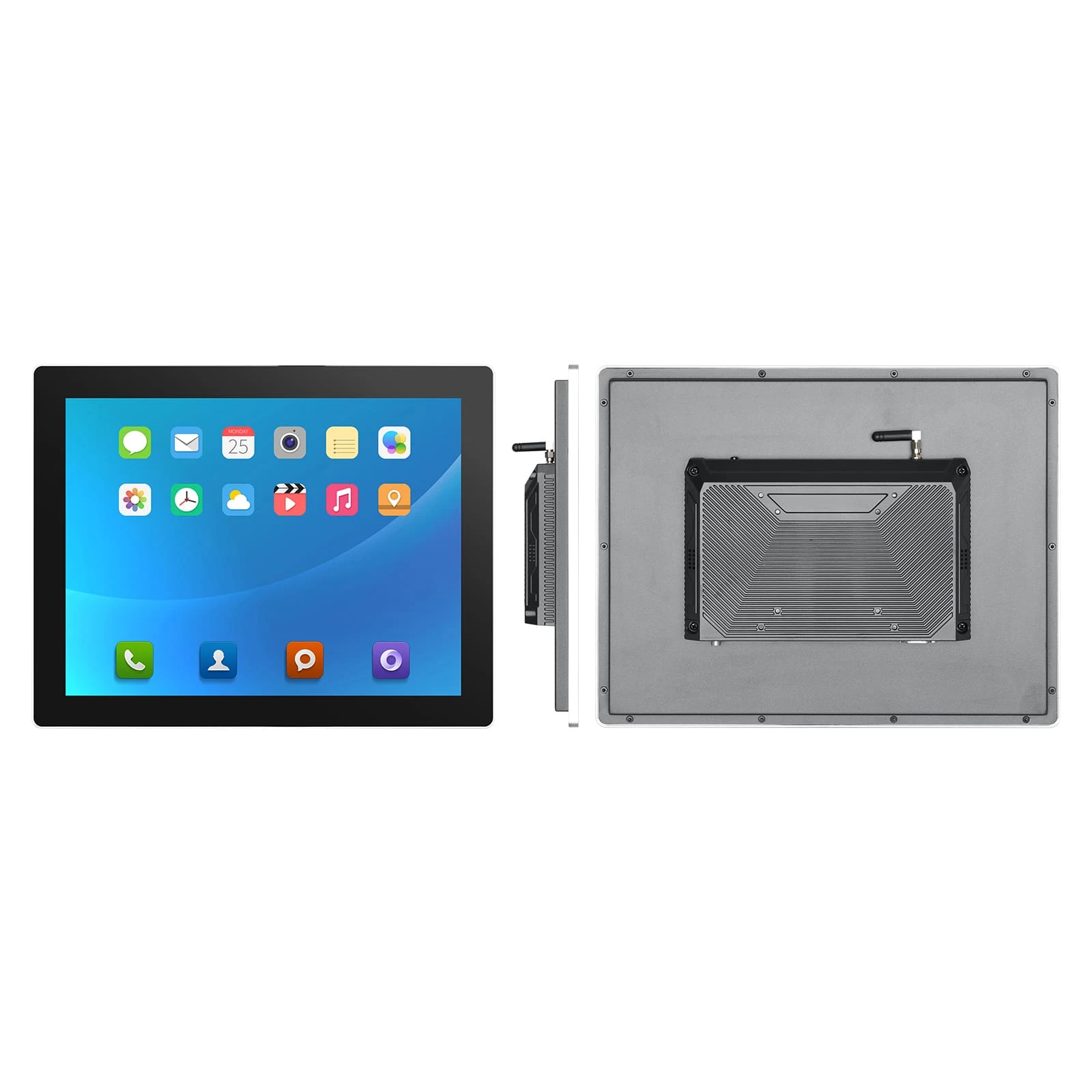

Only 15″ shown, contact us for full size options (10.1″–27″).
Hardware Configuration
CPU
Allwinner A133, 4-core 64-bit Cortex-A53 architecture, with a clock speed of up to 1.5 GHz
Memory
2GB (Optional 4GB)
Storage
8GB eMMC (Optional 16GB/32GB/64GB/128GB)
GPU
GE8300 Graphics Processing Unit
Operating system
Android 10.0
Wi-Fi
Wi-Fi 6, Dual Band 2.4GHz+5GHz
Bluetooth
BT5.4
Watchdog Timer
Support
RTC real time clock
Support
Timer switch
Support
Product specifications
Power input
DC 12V-36V
Power adapter
24V/2.5A
Fuselage Properties
Body material: aluminum alloy, body color: Classic black, Technical silver
Warranty
Three years (1-year free warranty, 2-year paid warranty)
Installation
Support Wall-mounted, Desktop, VESA mount, Suspended mounting, Folding mounting, Back hanging etc.

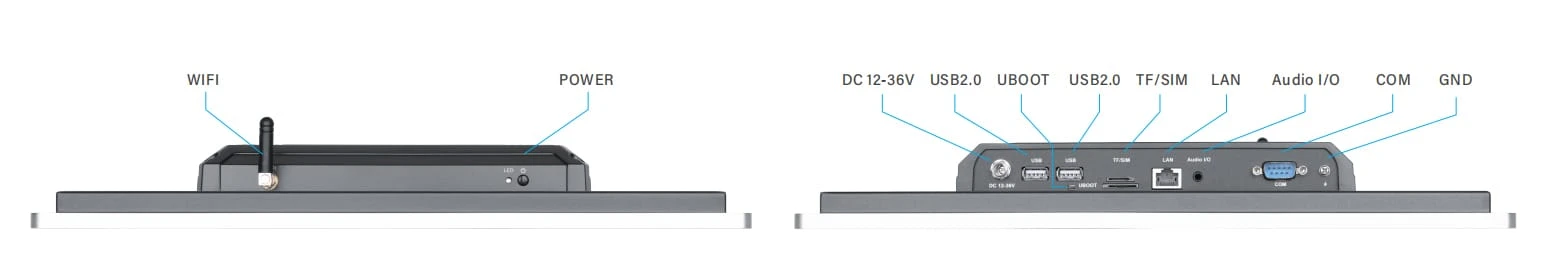

Interface parameters
PowerSw
1*PowerSW
Power supply
1*Threaded DC connector (diameter 5.5*2.1mm)
USB
2*USB 2.0
Ethernet
1*100M adaptive Ethernet
TF
1*Standard TF card slot
SIM
1*SIM, SIM card interface standard interface supports various formats (depending on 3G / 4G module)
AUDIO
1*Audio I/O, Support audio input and output, Headphone: 3.5mm standard interface
Speaker
2*(802W)
UBOOT
1*UBOOT
Serial port
1*COM (The default is RS232, Optional RS485/TTL)
Wi-Fi antenna
1*Wi-Fi antenna
Grounding
1*GND
Touch Parameters
Touchscreen
Projection capacitive, touch 10-point multi touchsingle point
