Vending Machine PC
TouchThink Smart Founded in 2013 is an outstanding manufacturer of Vending Machine PC. Produces automated touch display tablets including industrial automation displays, ARM architecture, and X86 architecture tablets, which are suitable for automated computer needs in harsh environments and 7×24 hours of continuous operation…
Get Best Quote
TouchThink Vending Machine PC:
Factory Price: $150~$450
Factory Price: $150~$450
Required fields are marked *, We’ll respond within 12 hours.

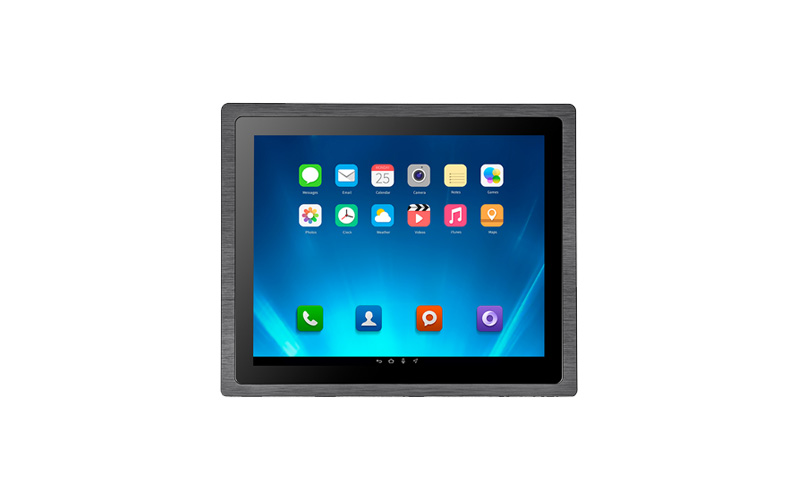

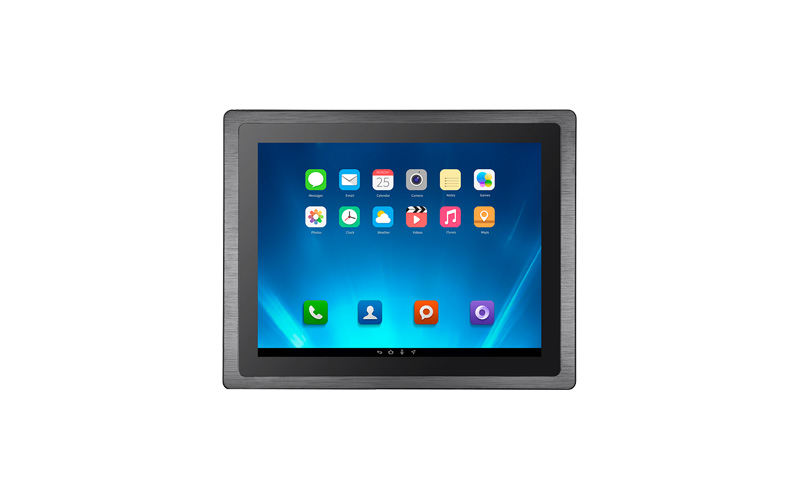

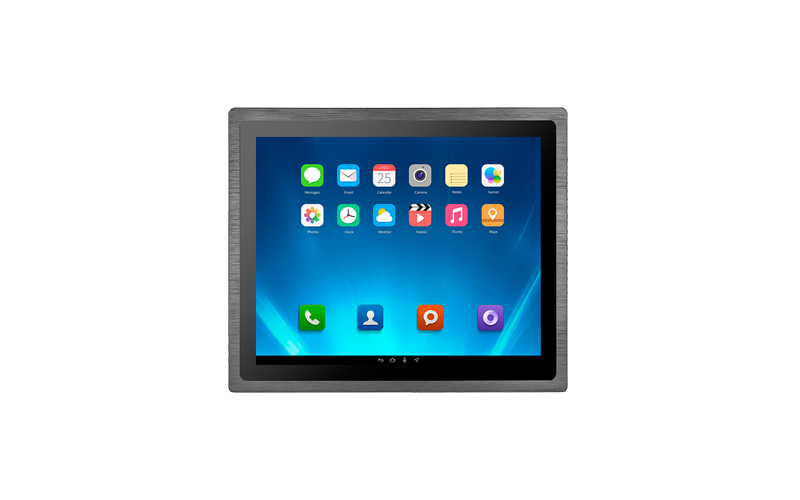

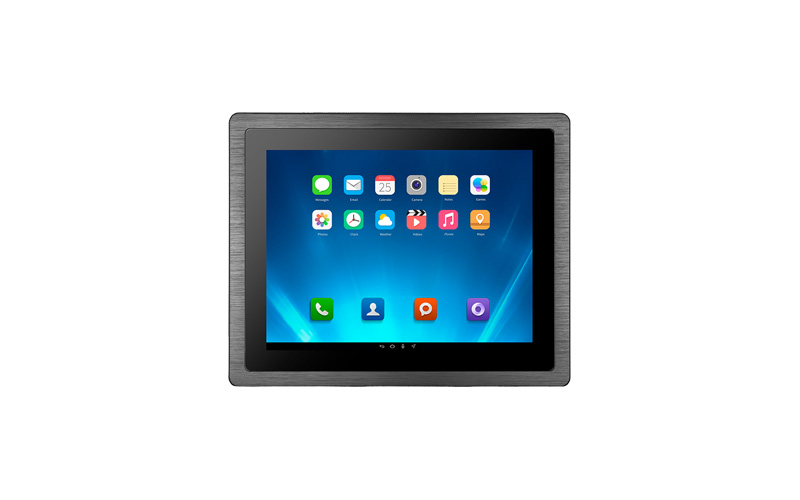

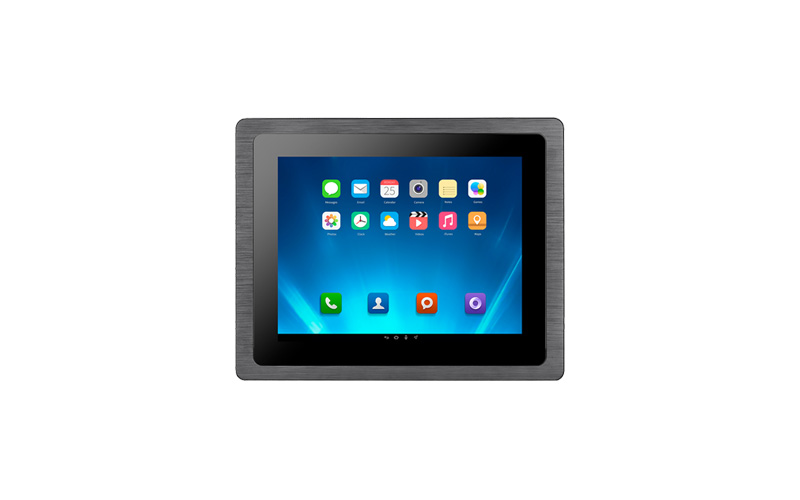

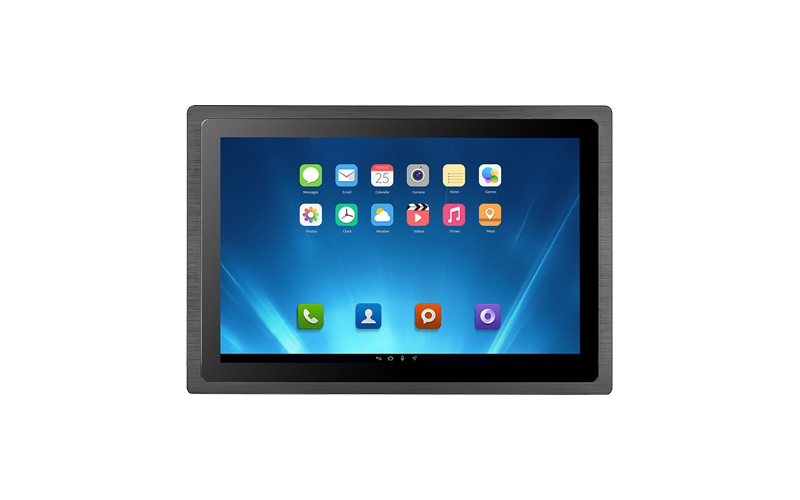

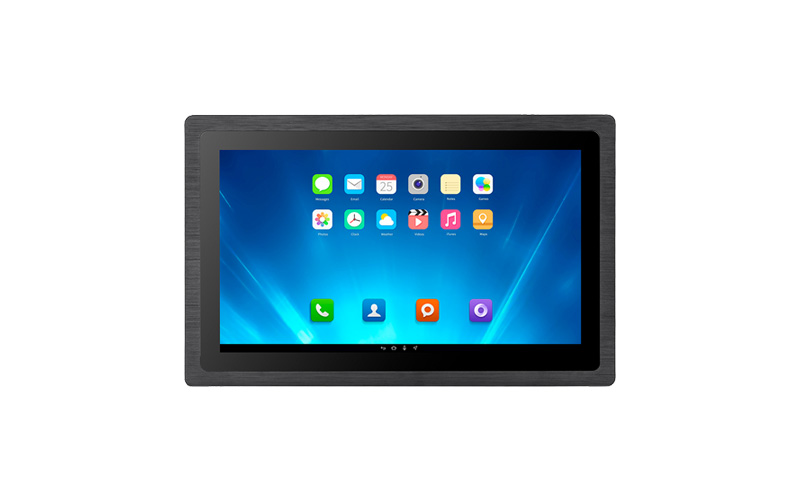

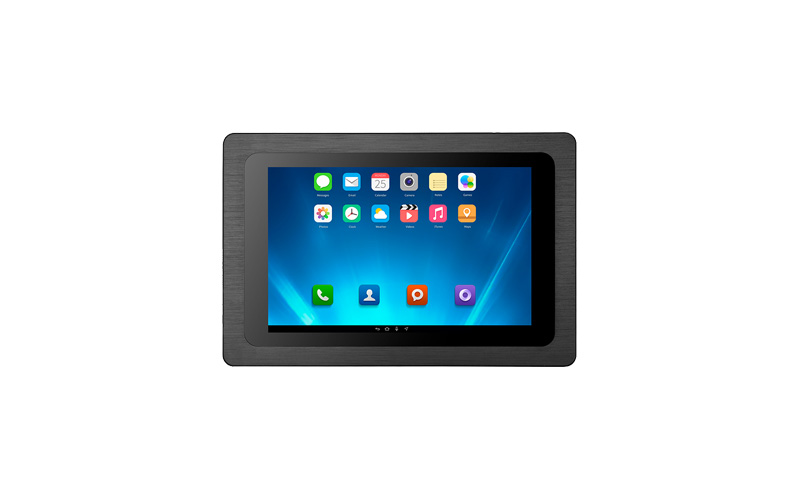

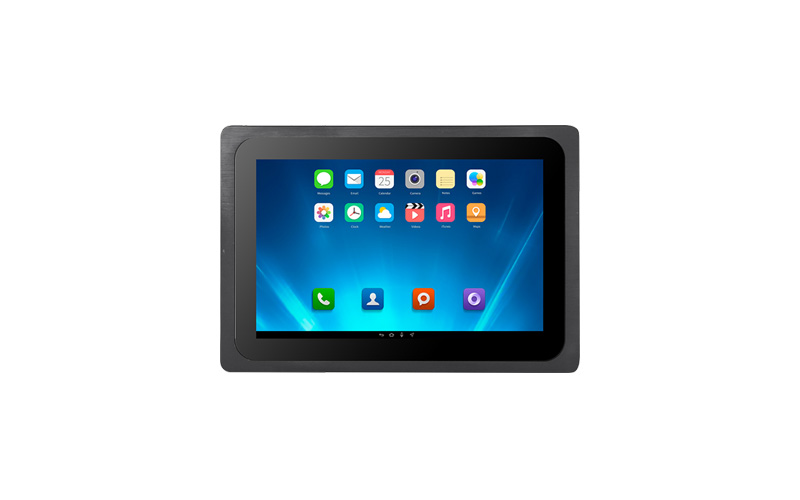

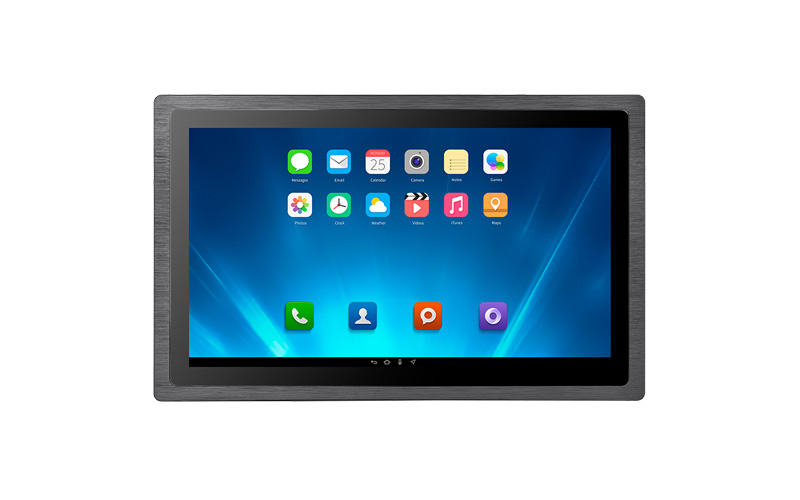

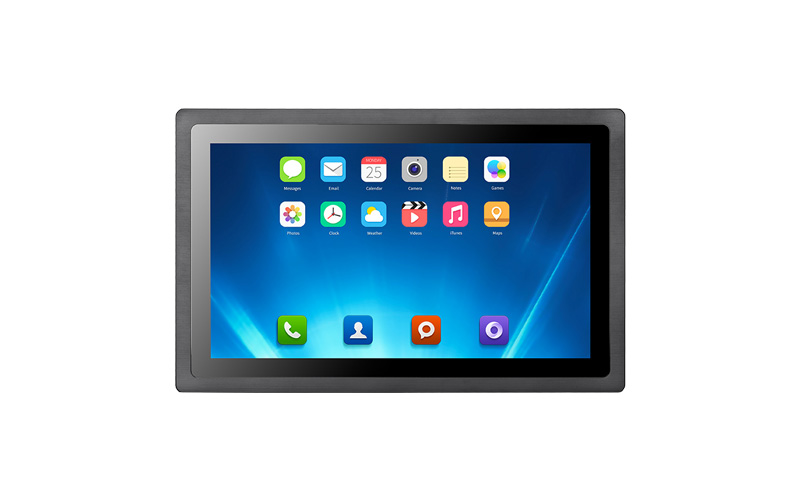

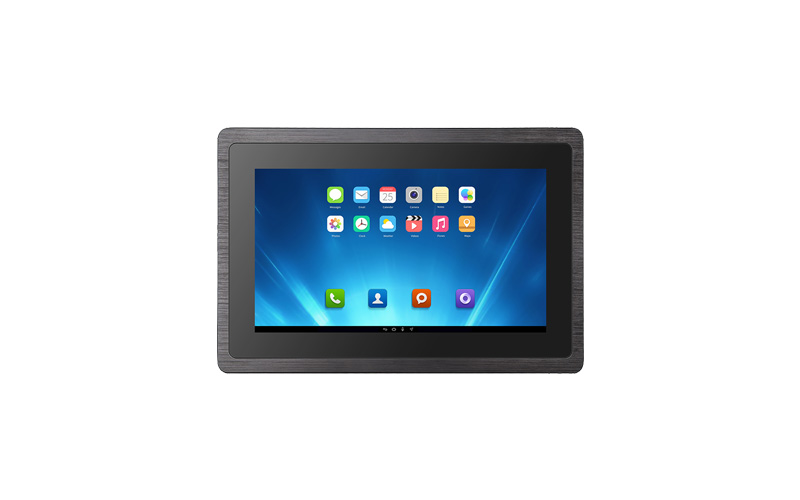

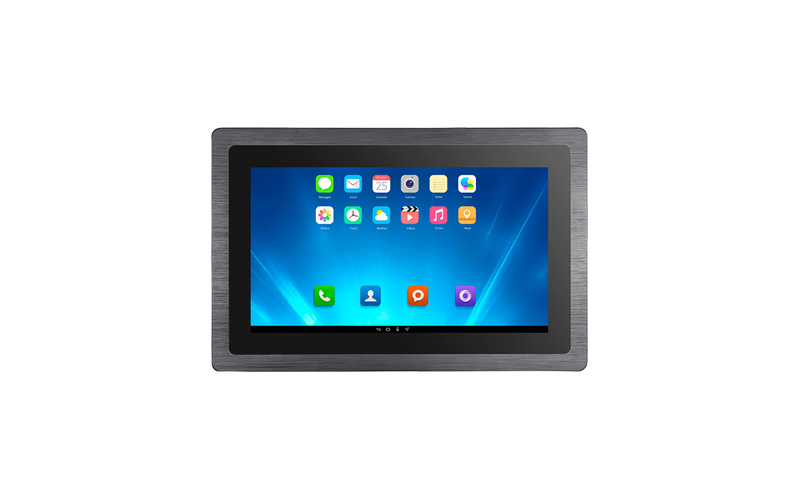

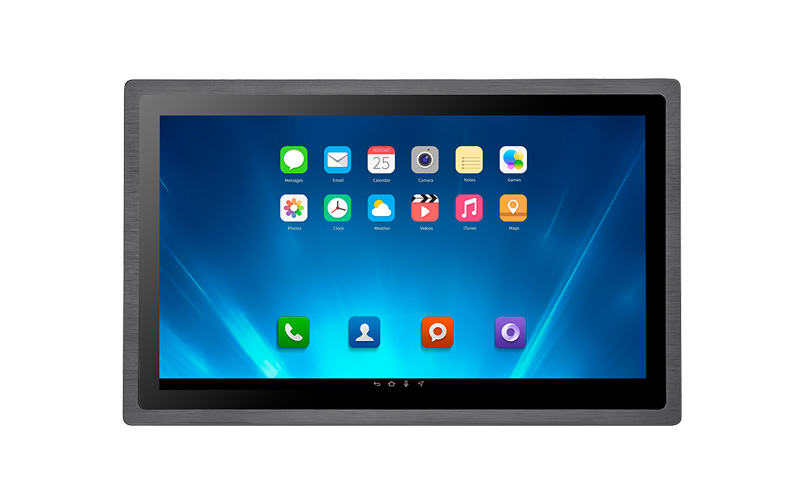

Vending Machine Android Panel PC
TouchThink Vending Machine Android Panel PC with 3mm front panel, based on ARM architecture, supports up to Octa-Core 64-bit 2.4GH, providing powerful Al computing capability, and SDK for secondary development. Their compact design and fanless operation make them ideal for space-constrained environments and applications where noise and maintenance requirements must be minimized. Commonly used for machine control, data acquisition, human-machine interface (HMI), process monitoring, and automation.
Vending Machine Android Panel PC Size
10.1 inchVending Machine Android Panel PC- 10.4 inchVending Machine Android Panel PC
- 11.6 inchVending Machine Android Panel PC
- 12.0 inchVending Machine Android Panel PC
- 12.1 inchVending Machine Android Panel PC
- 13.3 inchVending Machine Android Panel PC
- 15.0 inchVending Machine Android Panel PC
- 15.6 inchVending Machine Android Panel PC
- 17.0 inchVending Machine Android Panel PC
- 17.3 inchVending Machine Android Panel PC
- 18.5 inchVending Machine Android Panel PC
- 19.0 inchVending Machine Android Panel PC
- 19.1 inchVending Machine Android Panel PC
- 21.5 inchVending Machine Android Panel PC
- 23.8 inchVending Machine Android Panel PC
| Vending Machine Android Panel PC Product Features |
|---|

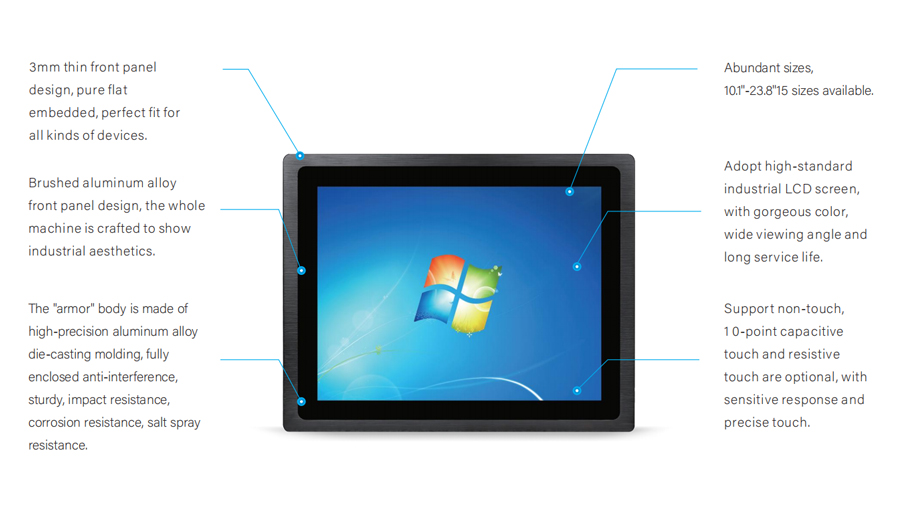

Ultra-thin Frame Design

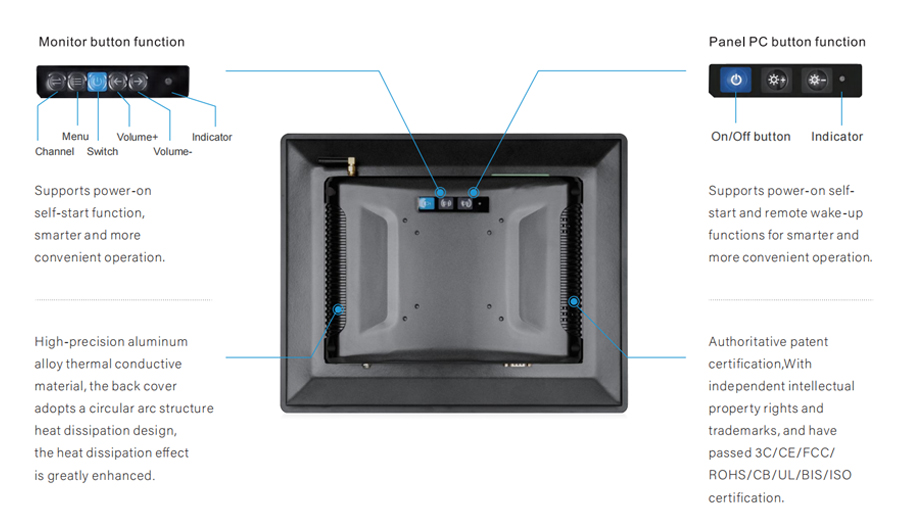

Industrial Technology Design
| Vending Machine Android Panel PC Product Parameters | ||
|---|---|---|
| Hardware Parameters | CPU: RK3588 Octa-Core 64bit 2.4GHz | Android 12.0 |
| CPU: RK3568 Quad-Core 64bit 2.0GHz | Android 12.0/Ubuntu5.10 | |
| CPU: RK3399 Six-Core 64bit 1.8GHz | Android 7.1/9.0/11, Ubuntu18.04, Debian10.0, Linux4.4+QT | |
| CPU: RK3288 Cortex-A17 Quad-Core 1.8GHz | Android 7.1/10.0/12.0, Ubuntu18.04, Debian10.0, Linux4.4 | |
| CPU: A64 Cortex-A53 Quad-Core 1.5GHz | Android 6.0 | |
| Memory | 2G/4G/8G/16G/32G Optional | |
| Storage | 8G/16G/32G/64G/128G/256G eMMC Optional | |
| Decoding Resolution | Support up to 4K/60HZ | |
| Network Support | 4G, Ethernet, WiFi/Bluetooth support, wireless peripheral expansion | |
| Screen Parameters | Panel Type | Industrial control screen |
| Viewing Angle | Wide view / full view | |
| Backlight Type | LED, use time >=50000H | |
| Brightness | 300cd/m2 (can be customized =< 1500cd/m2) | |
| Display Color | 16.7M | |
| Contrast Ratio | 1000:1 |
| Touch Parameters | Projection capactivite touch Touch Point: 10-point Light Transmittance: >=88% Input Mode: handwriting or capactivite pen Standard Protocol:USB | Resistive touch 4-5wire/5 Wire Touch Point: single point Light Transmittance: >=78% Input Mode: Fingertip or stylus Standard Protocol:USB | Non-touch Light Transmittance: >=92% | ||
| Interface Parameters | DC Port | 1*DC2.1(DC 12-36V) |
| HDMI | High-definition audio digital signal transmission, support HDMI data input. | |
| SIM | 1*SIM, Supporting various formats (Depending on 3G/4G module) | |
| Network interface | 1*LAN, 10M/100M/1000M adaptive Ethernet | |
| COM | 2*RS232 | |
| Audio interface | 1*Audio I/O, Support audio input and output |
| Environment Parameters | Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C | |
| Relative Humidity | Humidity: 95% Non-Condensing | |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis | |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Other Parameters | Power input | DC 12V~36V |
| Static power | 18W | |
| Installation Method | Supports snap-embedded,wall edbedded,wall mounted,desktop,louvered,cantilever-mounted,boom-mounted,etc. | |
| Warranty Policy | Three years ( one year free warranty ) |

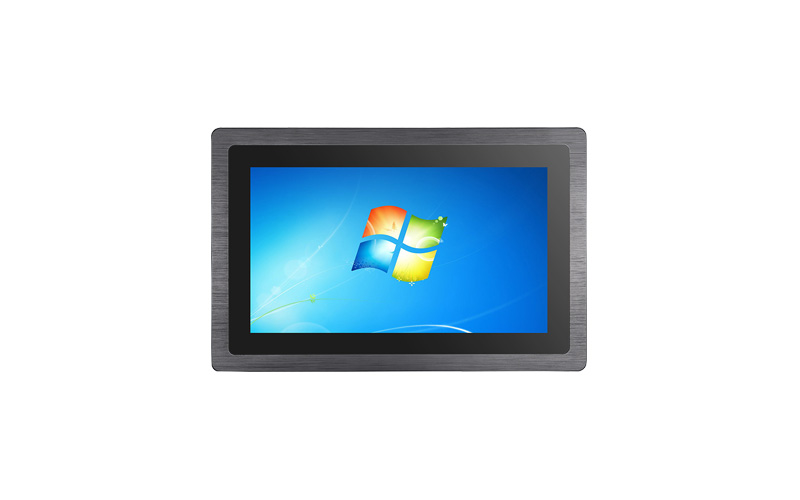

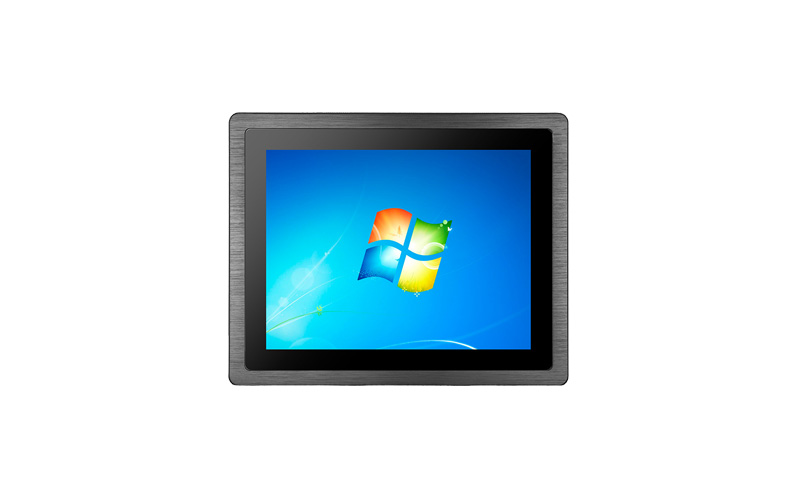

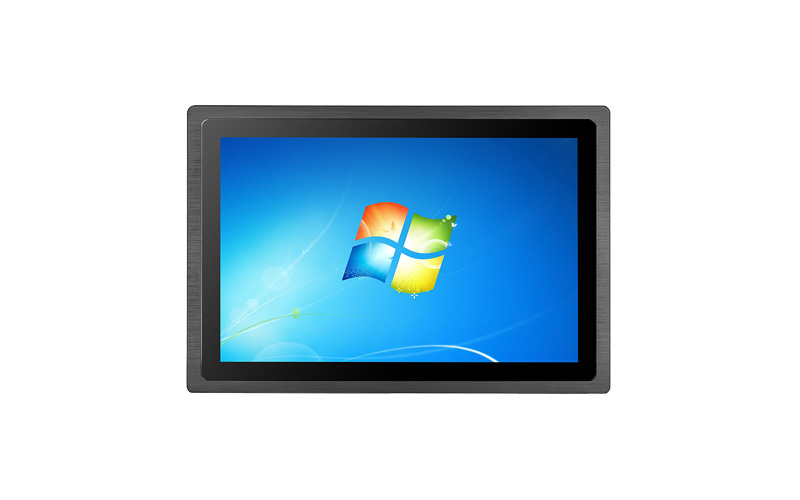

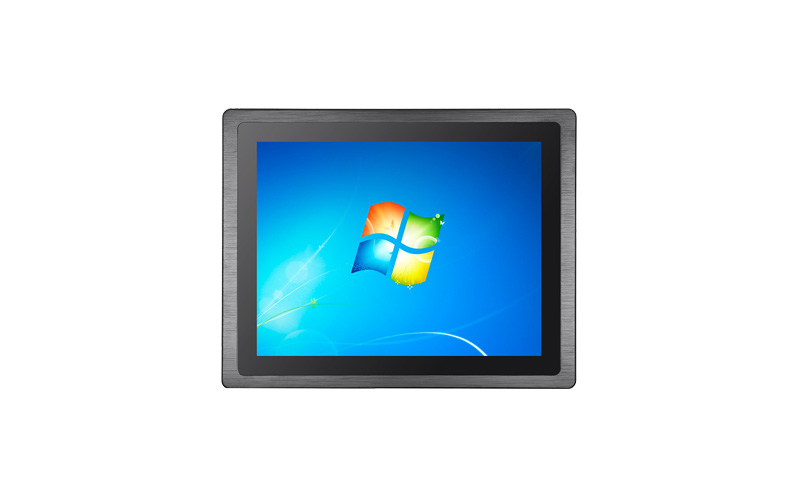

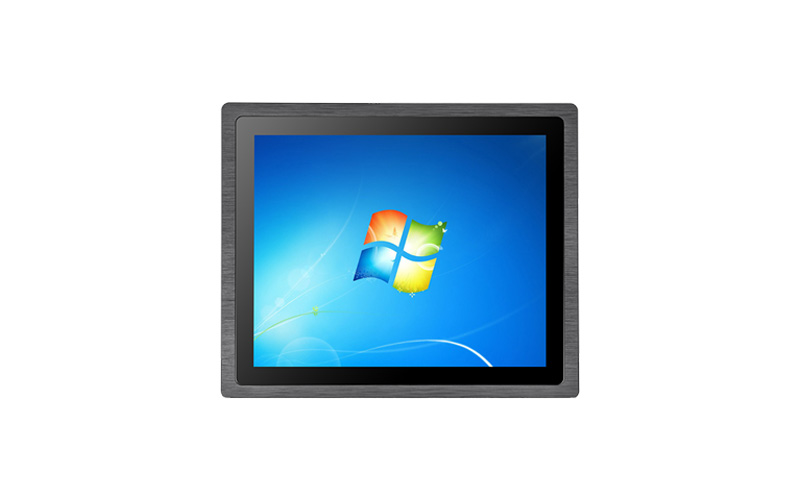

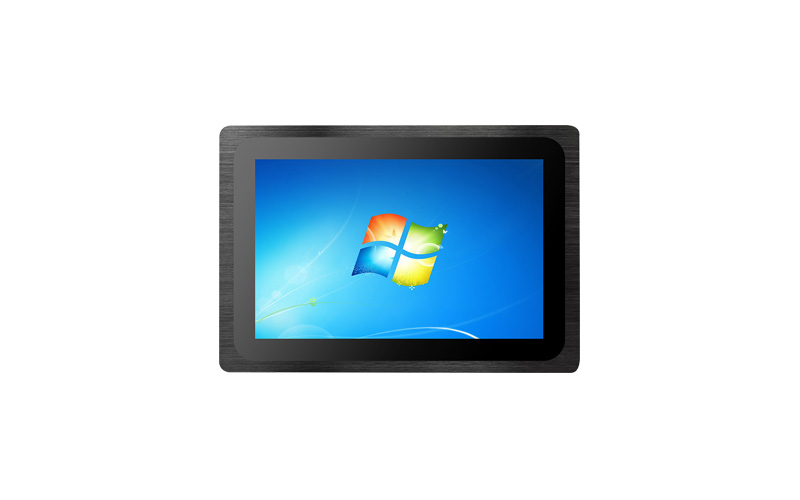

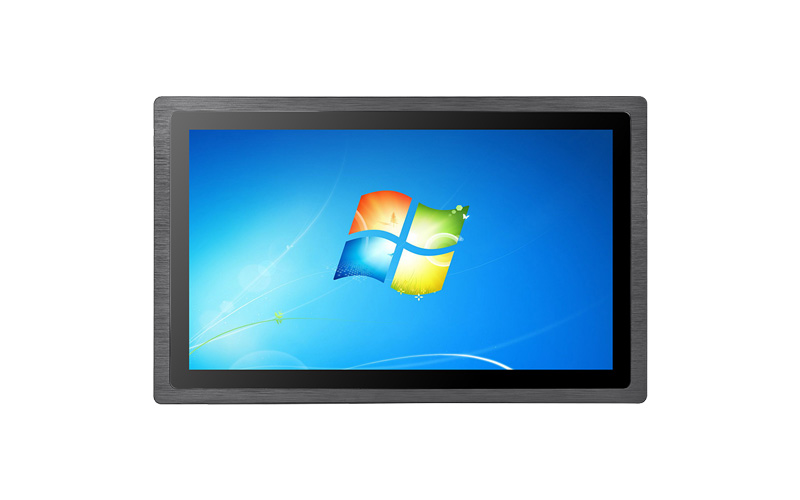

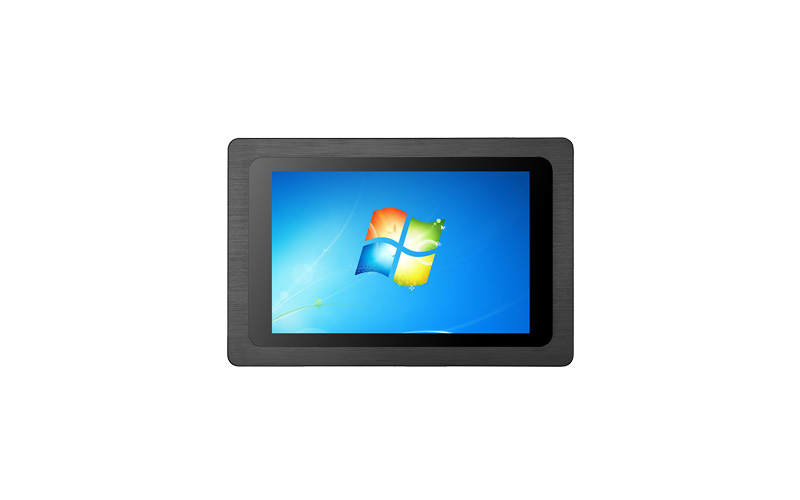

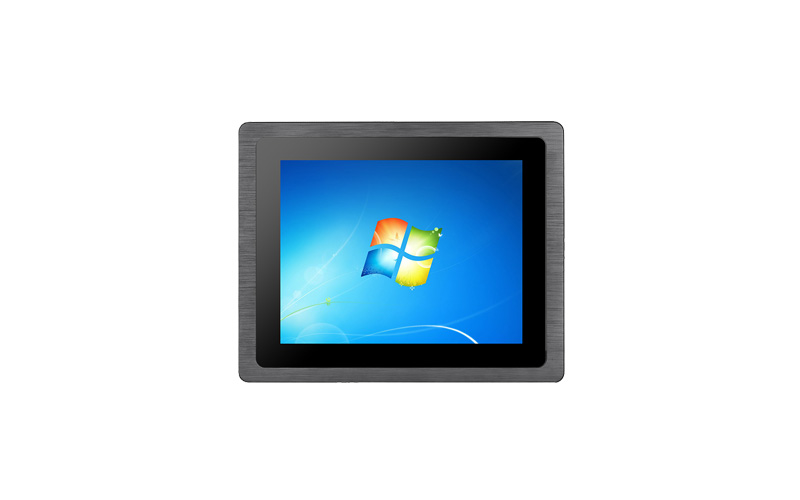

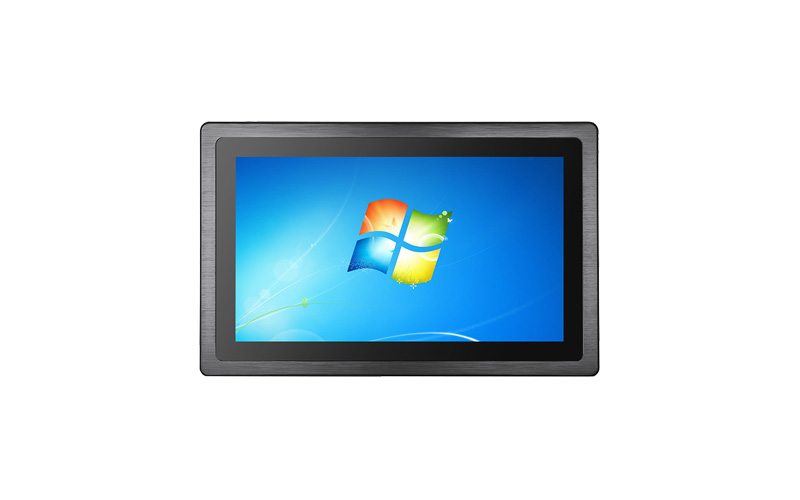

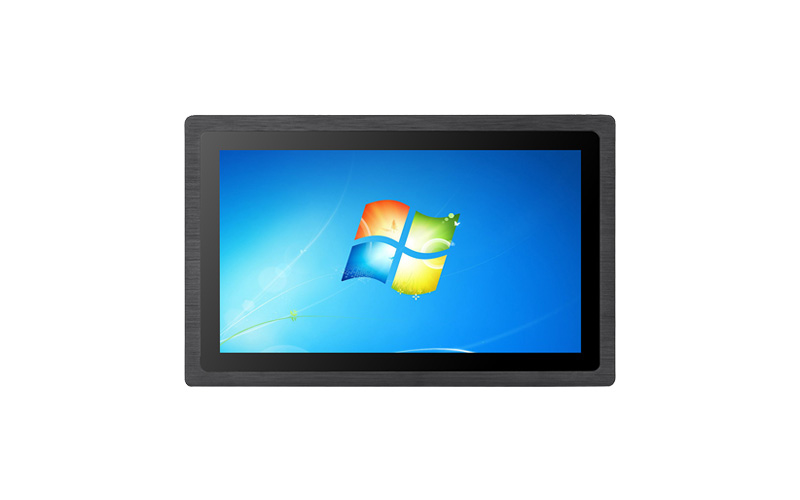

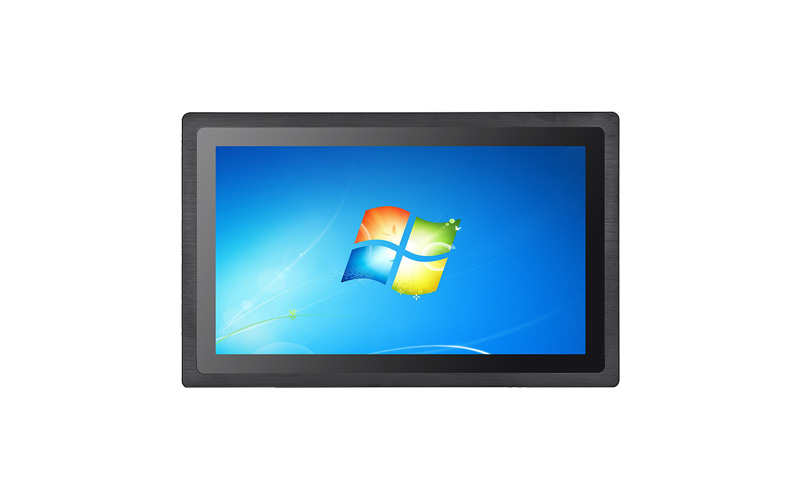

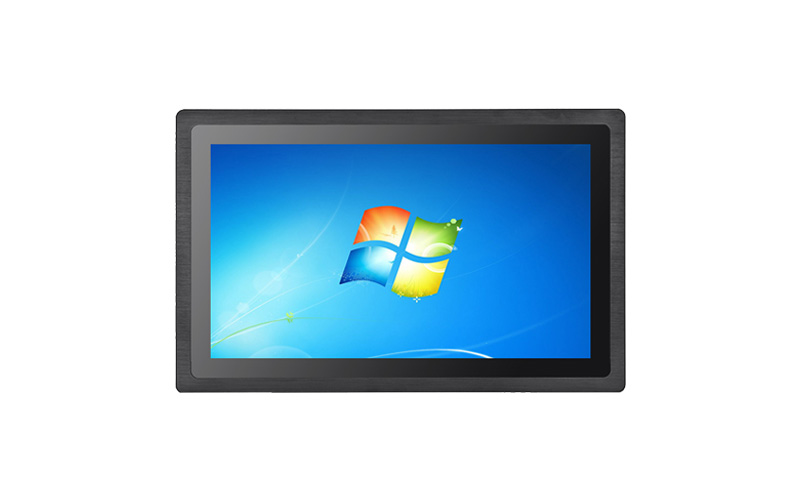

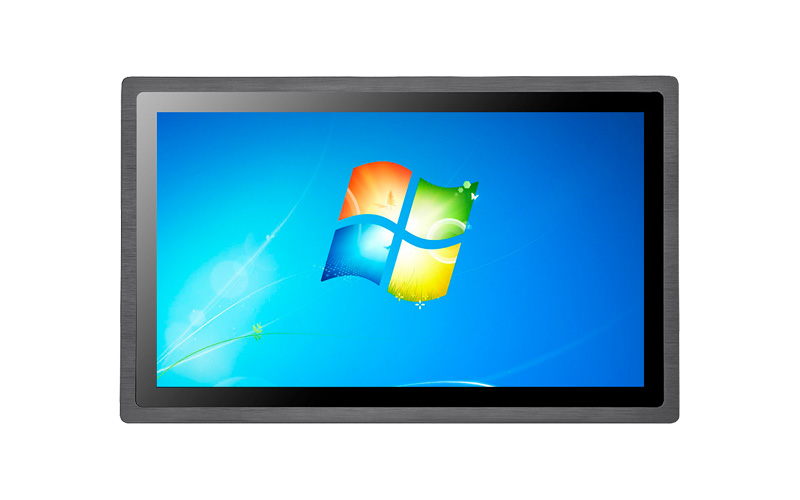

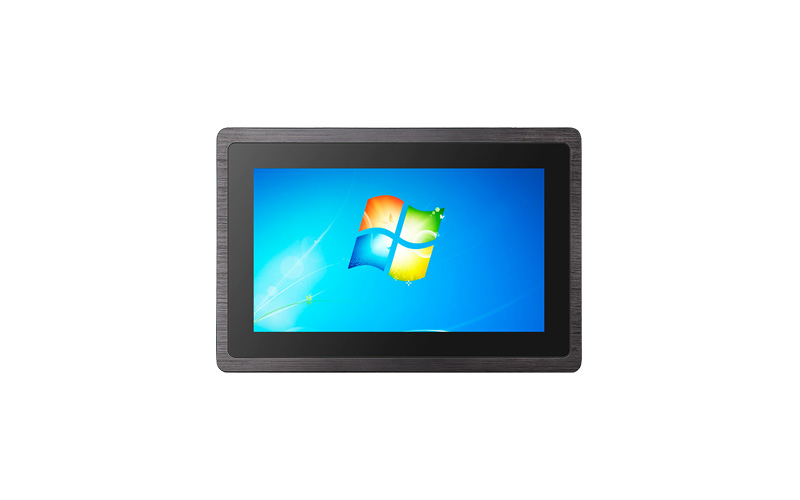

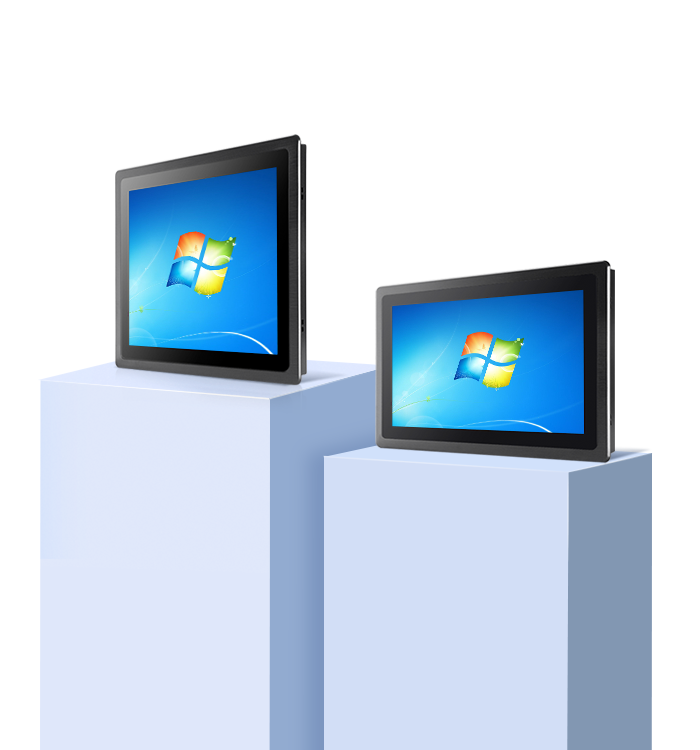

Vending Machine Windows Panel PC
Touchthink Vending Machine Windows Panel PCs with 3mm front panels are built with ruggedized enclosures and durable components, powered by X86 processors, these panel PCs offer high computing performance, enabling them to handle complex industrial applications, data processing tasks, and real-time control functions with ease.
Vending Machine Windows Panel PC Size
- 10.1 inchVending Machine Windows Panel PC
- 10.4 inchVending Machine Windows Panel PC
- 11.6 inchVending Machine Windows Panel PC
- 12.0 inchVending Machine Windows Panel PC
- 12.1 inchVending Machine Windows Panel PC
- 13.3 inchVending Machine Windows Panel PC
- 15.0 inchVending Machine Windows Panel PC
- 15.6 inchVending Machine Windows Panel PC
- 17.0 inchVending Machine Windows Panel PC
- 17.3 inchVending Machine Windows Panel PC
- 18.5 inchVending Machine Windows Panel PC
- 19.0 inchVending Machine Windows Panel PC
- 19.1 inchVending Machine Windows Panel PC
- 21.5 inchVending Machine Windows Panel PC
- 23.8 inchVending Machine Windows Panel PC
| Vending Machine Windows Panel PC Product Features |
|---|
Ultra-thin Frame Design
Industrial Technology Design
| Vending Machine Windows Panel PC Product Parameters | ||
|---|---|---|
| Hardware Parameters | CPU: Intel Celeron J1900 Quad Core 1.99GHz | Win7/10, Ubuntu,Centos,Redhat, Debian, Linux |
| CPU: Intel Celeron J4125 Quad Core 2.0GHz | Win10/11, Ubuntu,Centos,Linux | |
| CPU: Intel Celeron J6412 Quad Core 2.6GHz | Win10/11, Ubuntu,Centos,Linux | |
| Memory | 4G/8G/16G/32G Optional | |
| Storage | 64G/128G/256G/512G SSD, 1T/2T HDD Optional | |
| WIFI | Dual band 2.4G&5G | |
| BlueTooth | Support | |
| Network Support | 4G, Ethernet, WiFi/Bluetooth support, wireless peripheral expansion | |
| Screen Parameters | Panel Type | Industrial control screen |
| Viewing Angle | Wide view / full view | |
| Backlight Type | LED, use time >=50000H | |
| Brightness | 300cd/m2 (can be customized =< 1500cd/m2) | |
| Display Color | 16.7M | |
| Contrast Ratio | 1000:1 |
| Touch Parameters | Projection capactivite touch Touch Point: 10-point Light Transmittance: >=88% Input Mode: handwriting or capactivite pen Standard Protocol:USB | Resistive touch 4-5wire/5 Wire Touch Point: single point Light Transmittance: >=78% Input Mode: Fingertip or stylus Standard Protocol:USB | Non-touch Light Transmittance: >=92% | ||
| Interface Parameters | DC Port | 1*DC2.1(DC 12-36V) |
| HDMI | High-definition audio digital signal transmission, support HDMI data input. | |
| SIM | 1*SIM, Supporting various formats (Depending on 3G/4G module) | |
| Network interface | 1*LAN, 10M/100M/1000M adaptive Ethernet | |
| COM | 2*RS232 | |
| Audio interface | 1*Audio I/O, Support audio input and output |
| Environment Parameters | Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C | |
| Relative Humidity | Humidity: 95% Non-Condensing | |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis | |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Other Parameters | Power input | DC 12V~36V |
| Static power | 18W | |
| Installation Method | Supports snap-embedded,wall edbedded,wall mounted,desktop,louvered,cantilever-mounted,boom-mounted,etc. | |
| Warranty Policy | Three years ( one year free warranty ) |
