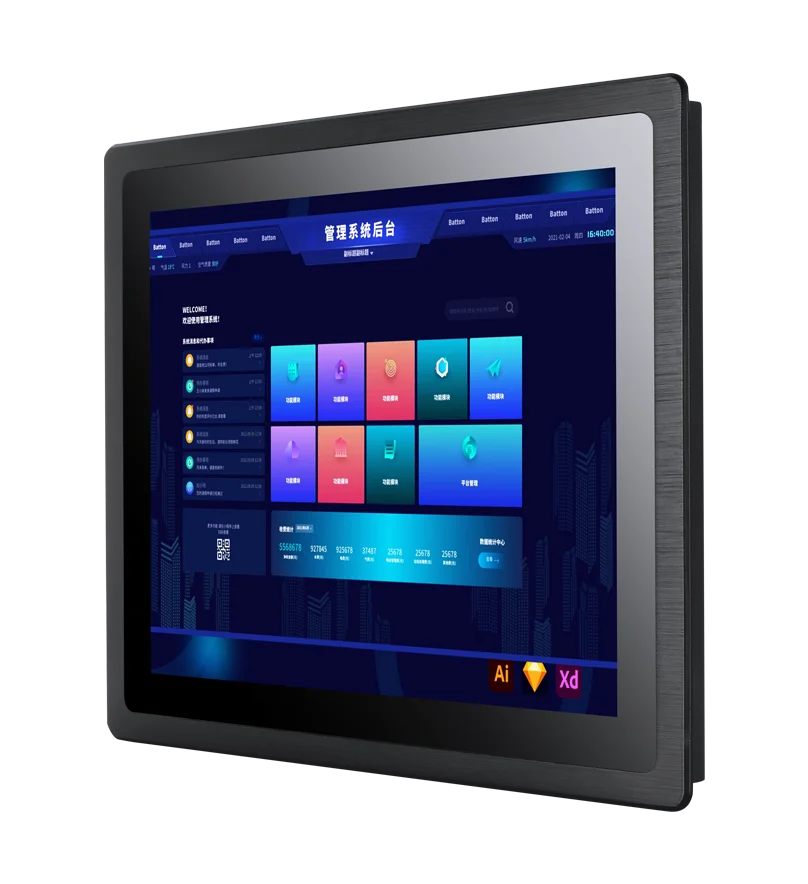

Z Series Model A Recessed Industrial Display Monitor Full Aluminum Chassis VGA+DP+HDMI
- 7-23.8″ screen size available.

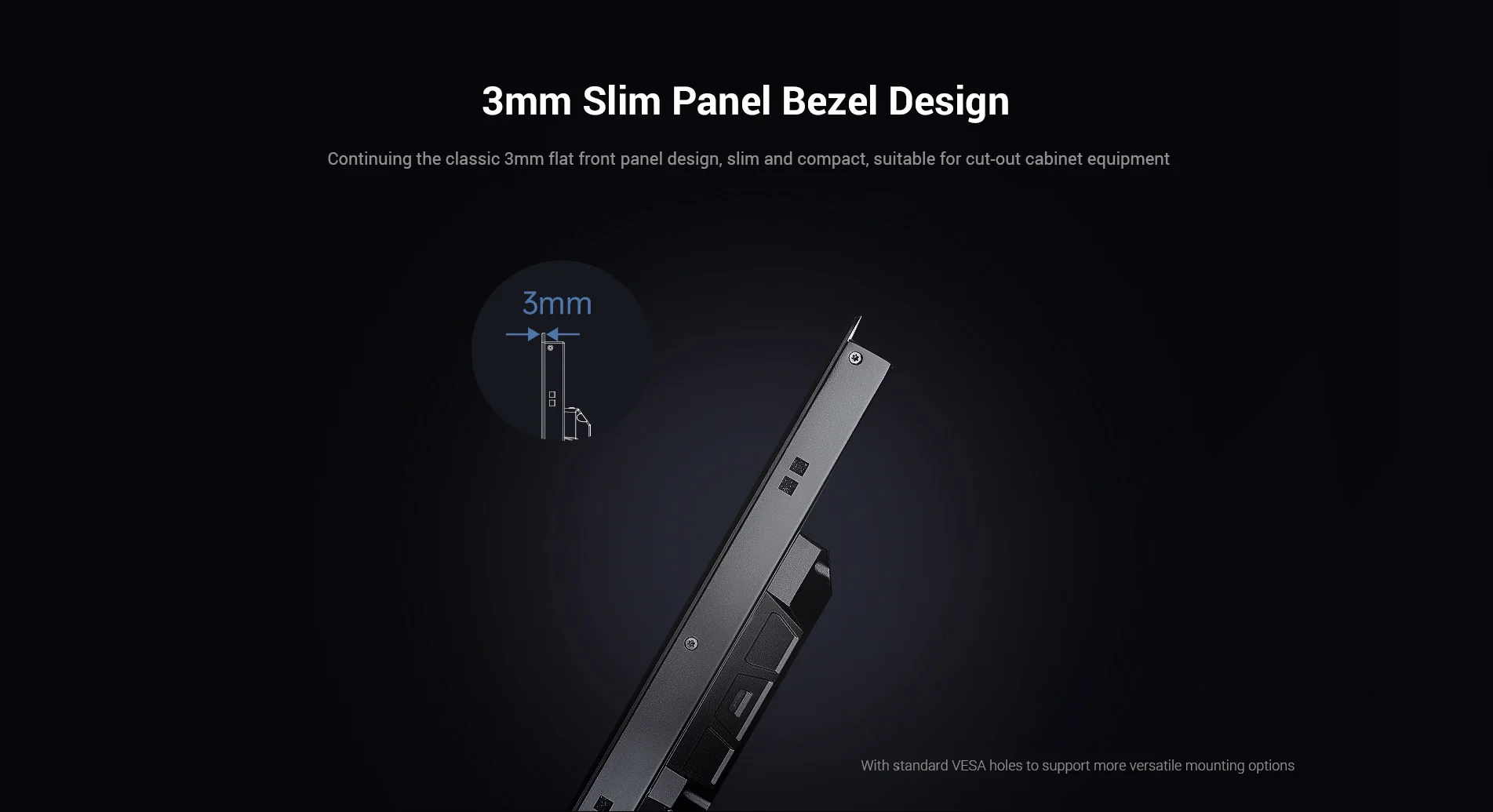

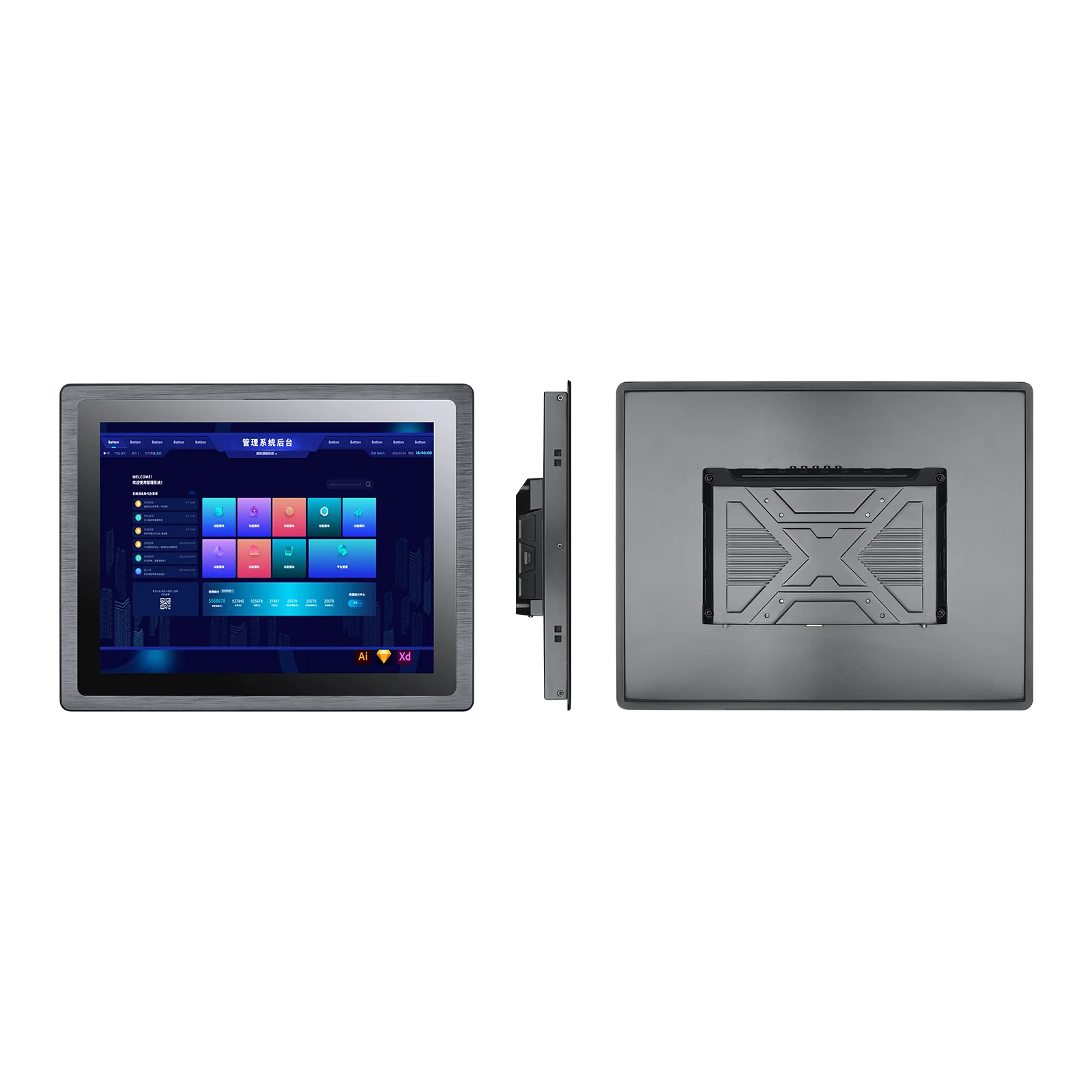

- Front frame is only 3mm thick, specially designed for cabinet-type applications

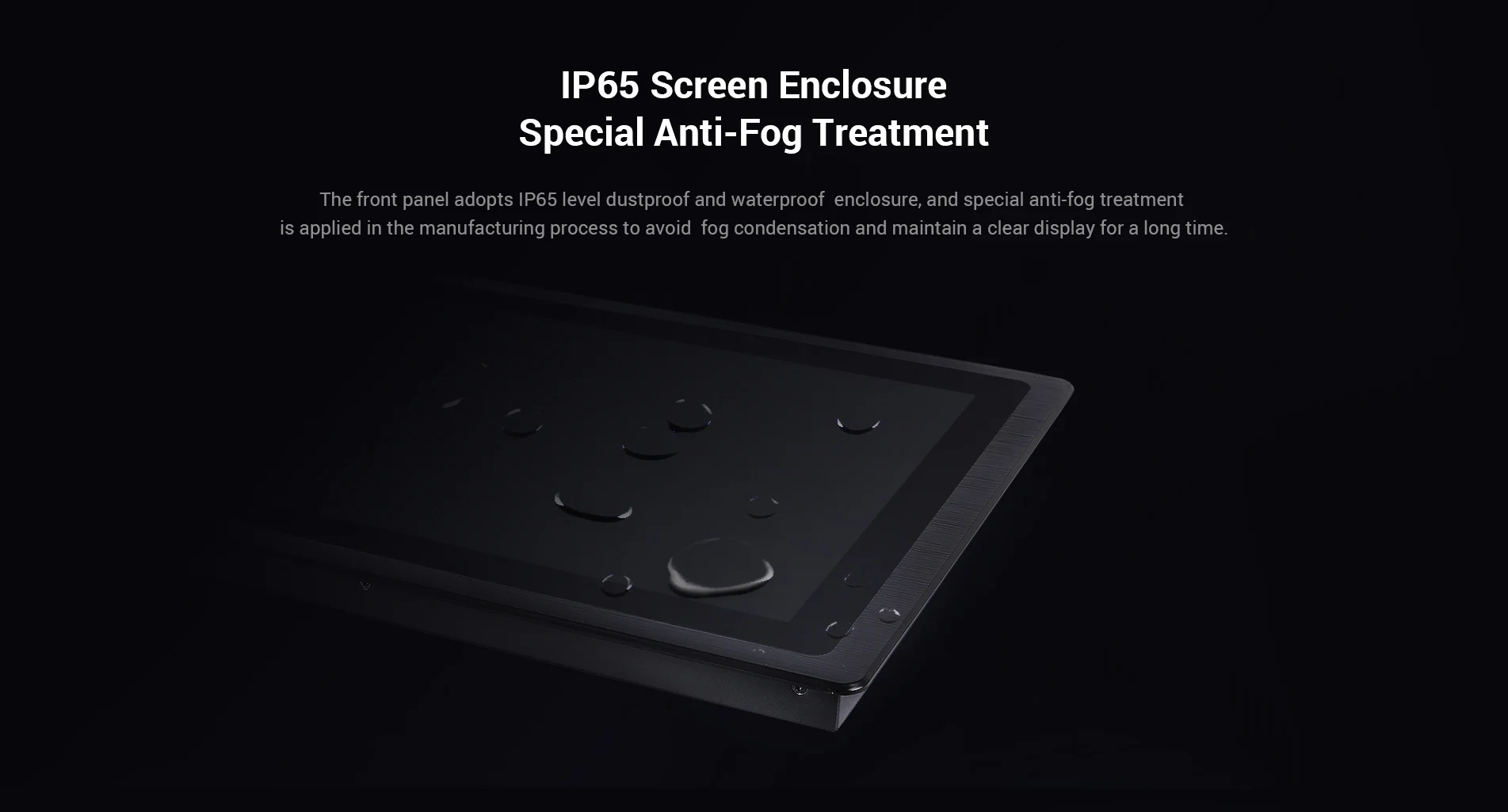

- High-precision die-casting aluminum molding, pure plane brushed process design, dustproof and waterproof.

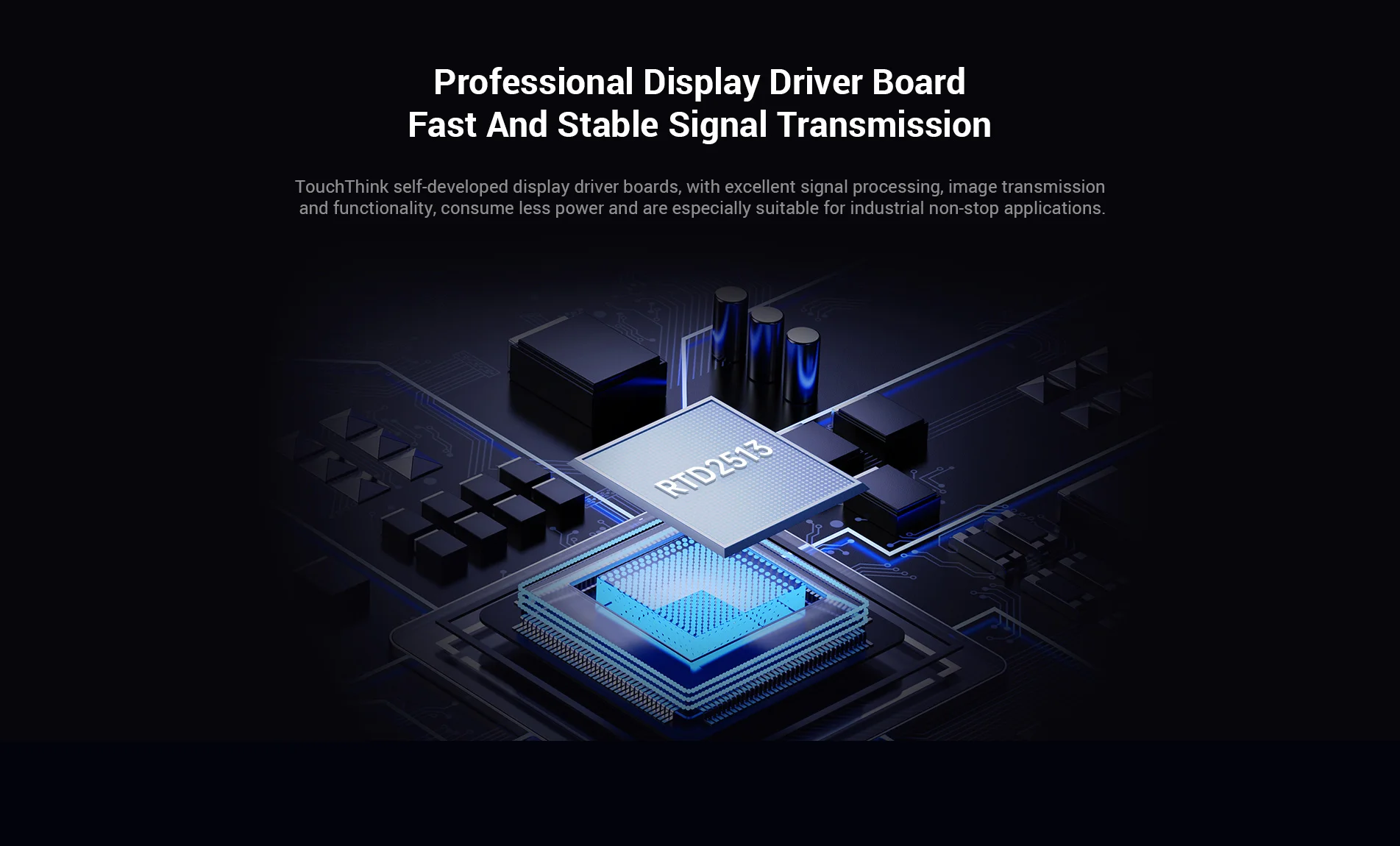

- Self-developed display driver board, a variety of touch options

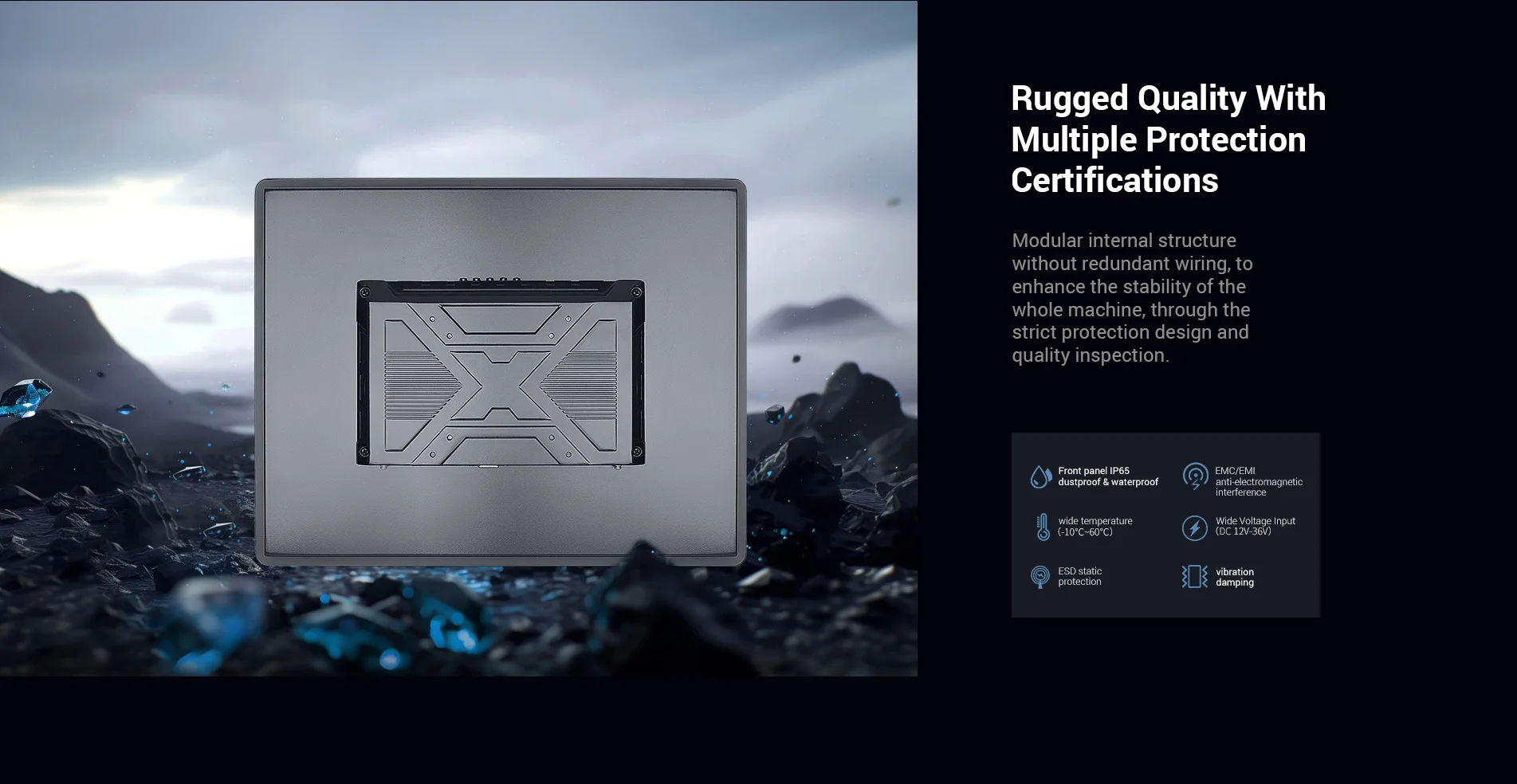

- Industrial-grade protection, applicable to a variety of harsh environments.

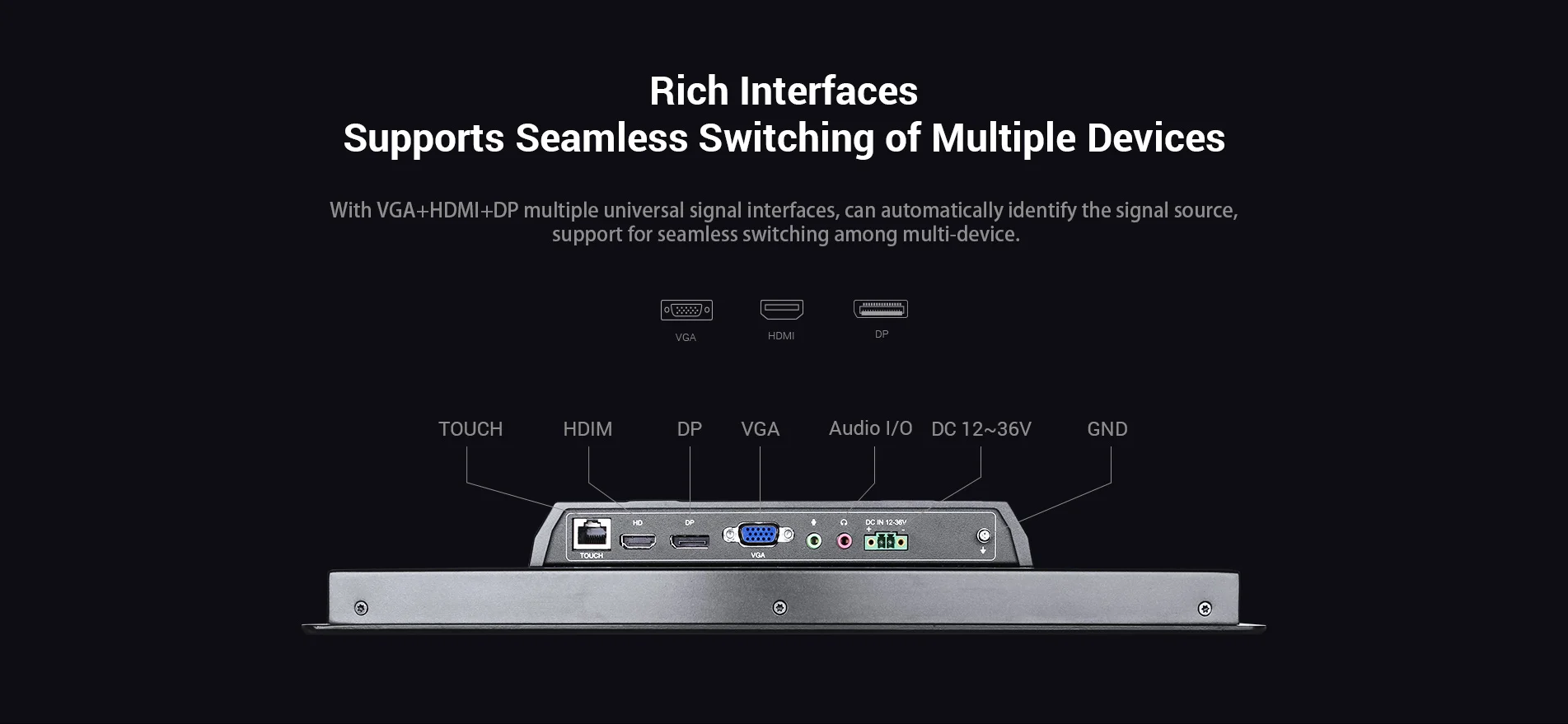

- Support VGA, HDMl, DVl, automatic identification of signal channels.

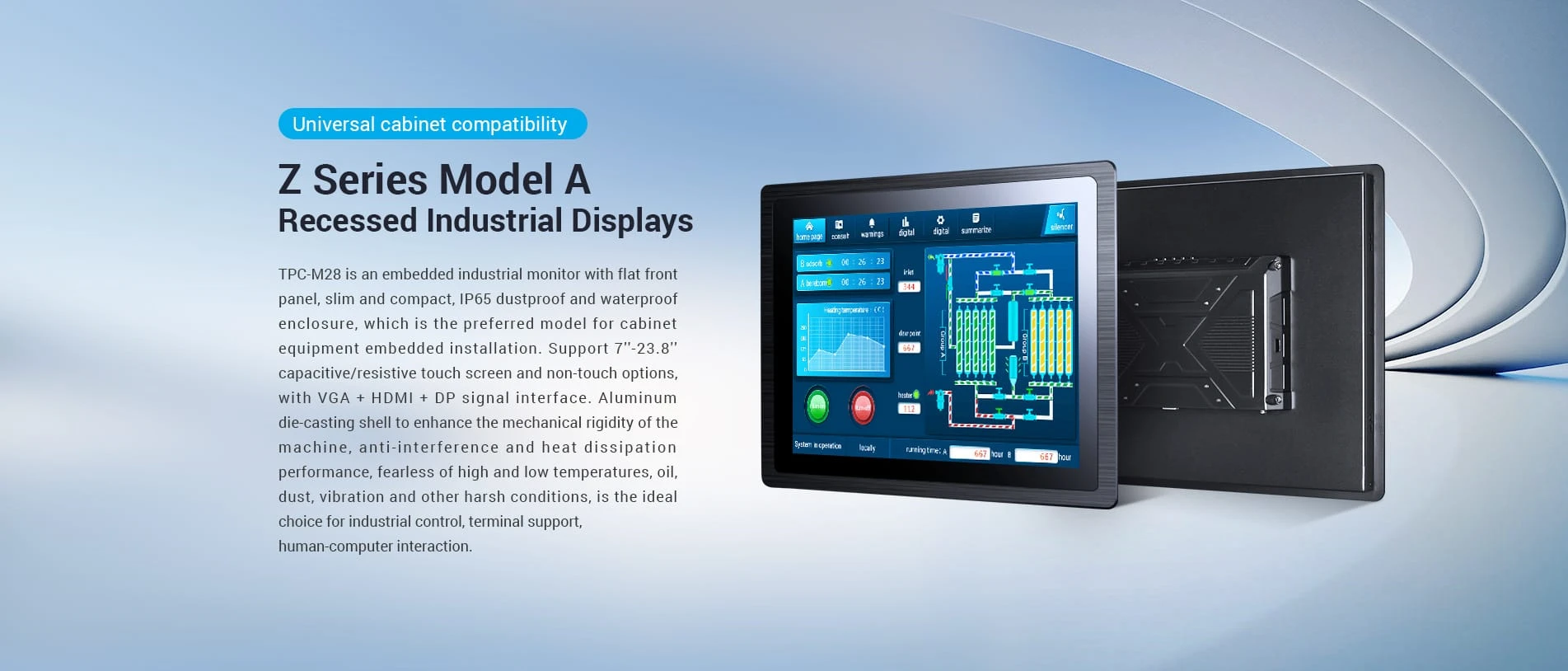

With 7″-23.8″ multiple sizes to choose from, the whole panel adopts 3mm ultra-thin panel bezel which is more suitable for embedded installation, aluminum alloy structure, fanless and fully enclosed design, equipped with self-developed industrial display driver board, the whole machine is low-power consumption, good scalability, practicality, and EMC-compatible performance, which is widely used in industrial control, military, communication, electric power, network, intelligent self-service terminal equipment and so on. Automation applications.
| Common Configuration | |
| CPU | RTD2513BR |

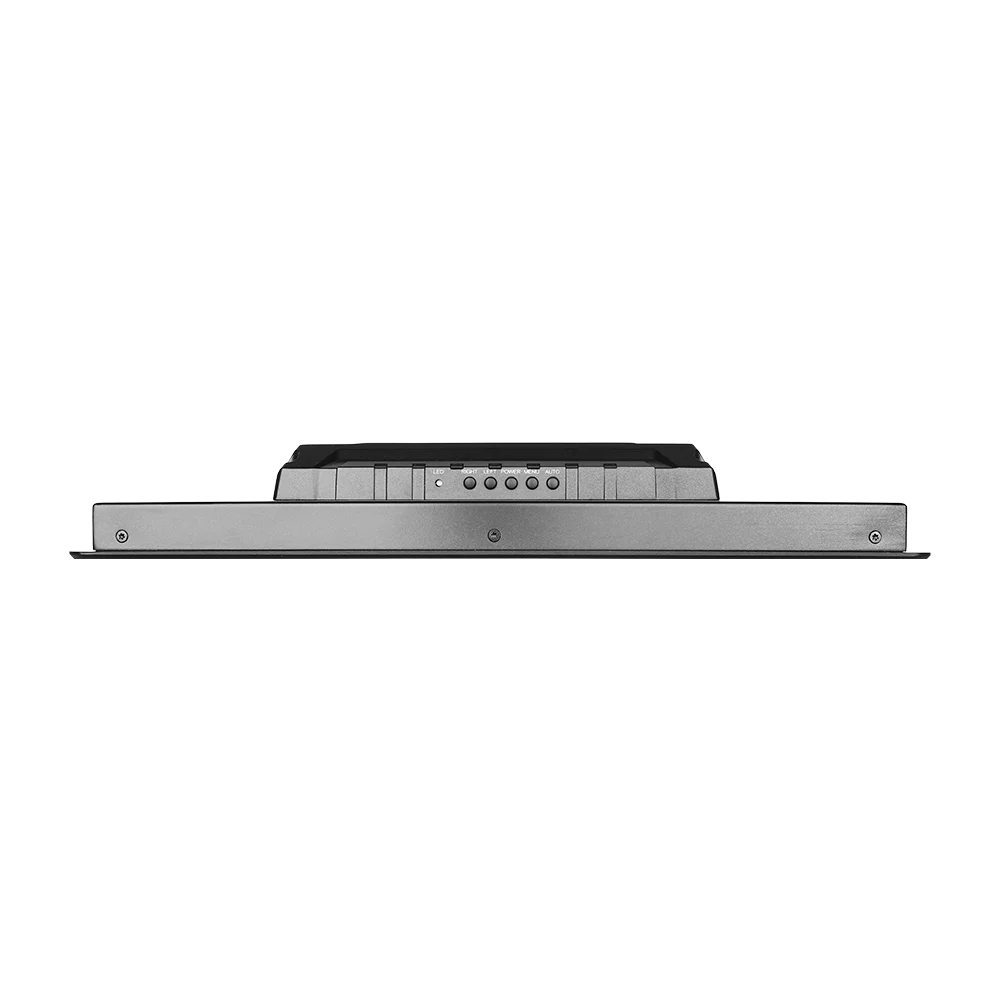

| Key Functions | AUTO, MENU, POWER, LEFT, RIGHT |
| Menu Languages | Multi language (default English) |
| Video Input | PC-RGB:Format,Up to 1920*1080@60Hz |
| PC-RGB:Color, 16bit,24bit,32bit | |
| Interfaces | |
| Power interface | 1*2Pin Phoenix terminal (Optional with thread DC 5.5*2.1) |
| HDMI | 1*HDMl, high-definition audio digital signal transmission, support HDMl data input, maximum support 1080P |
| VGA | 1*VGA, Analog signal transmission, supporting the best resolution of VGA |
| DP | 1*DP |

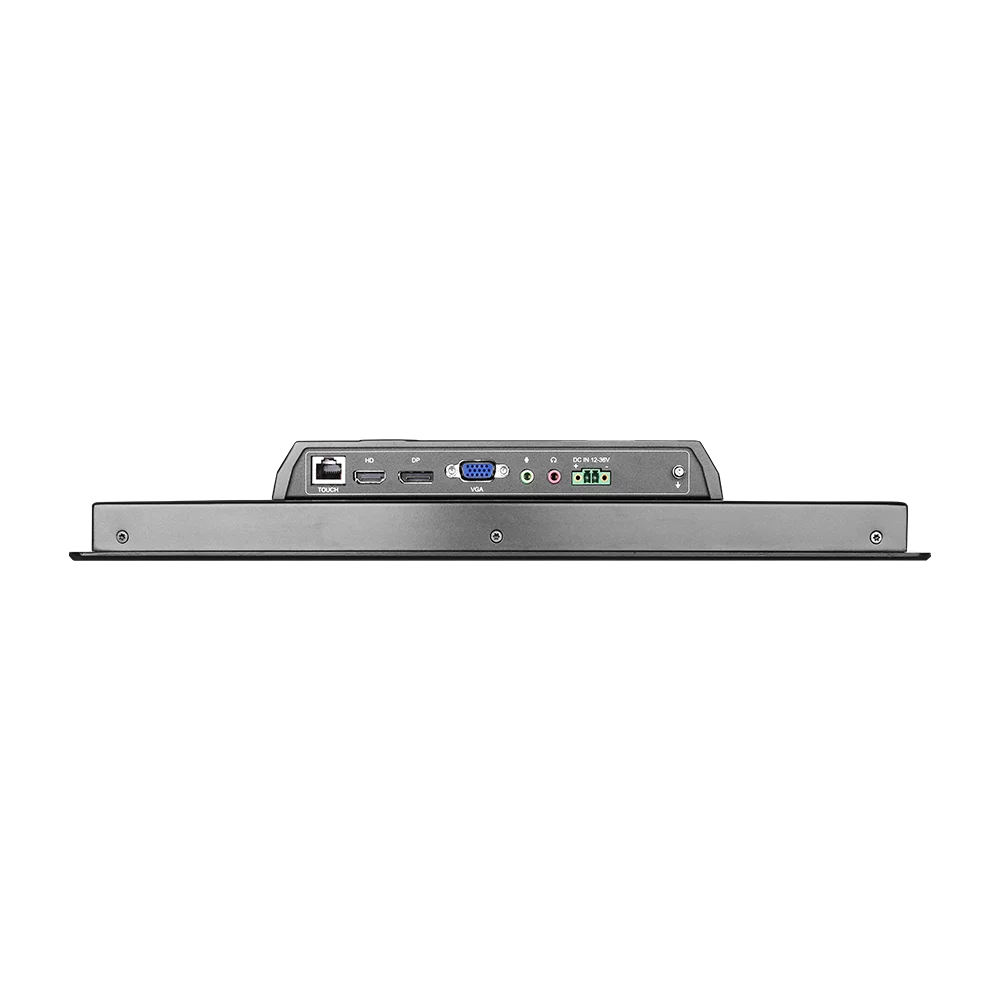

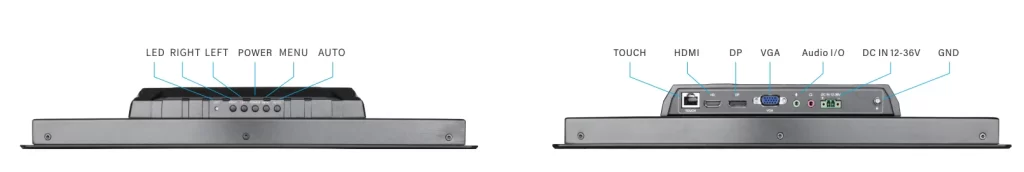

| TOUCH | 1*RJ45 port (USB definition) comes standard with Rj45 to USB touch cable |
| AUDIO I/0 | 1*AUDl0 1/0, supporting audio input and output; Headphone stand: 3.5mm standard interface |
| Grounding | 1*GND |
| Touch Parameters | |
| Capacitive Touch | Projection capacitive touch,10-point multi touch Touch object: hand or capacitive touch pen Light transmission:>88% Controller: USB( COM customized) |
| Resistive Touch | Resistive touch: single point Touch object: finger or stylus Light transmission:>78% Controller: USB( COM customized) |
| Non touch | Transmittance:>92% |
| Reliability Parameters | |
| Operating temperature | -10°C~60°C(-20°C~70°C can be customized) |
| Storage temperature | -20°C~70°C |
| Relative humidity | 95% non-Condensing |
| Other Parameters | |
| Power input | 12V-36V power input |
| Power adapter | 24V/1.5A |
| Fuselage Properties | Body material: aluminum alloy, body color: classic black, technical silver |
| Warranty policy | Three years (one year free warranty) |

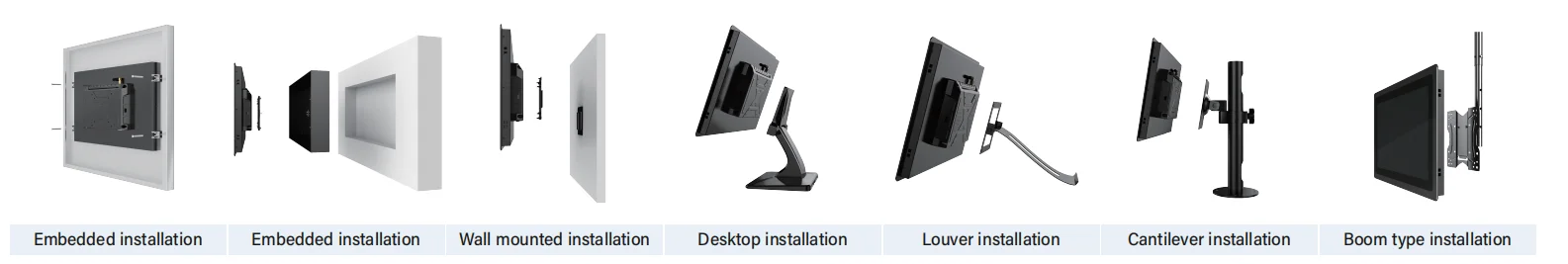

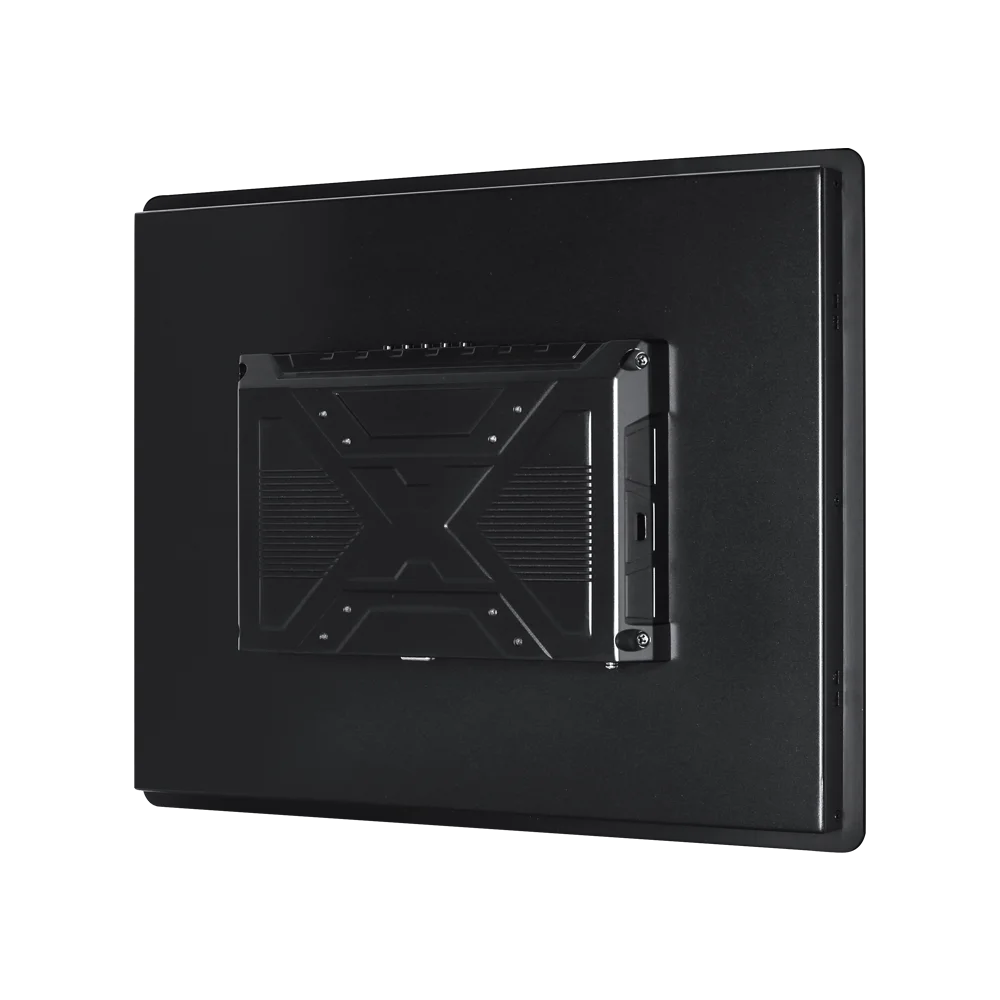

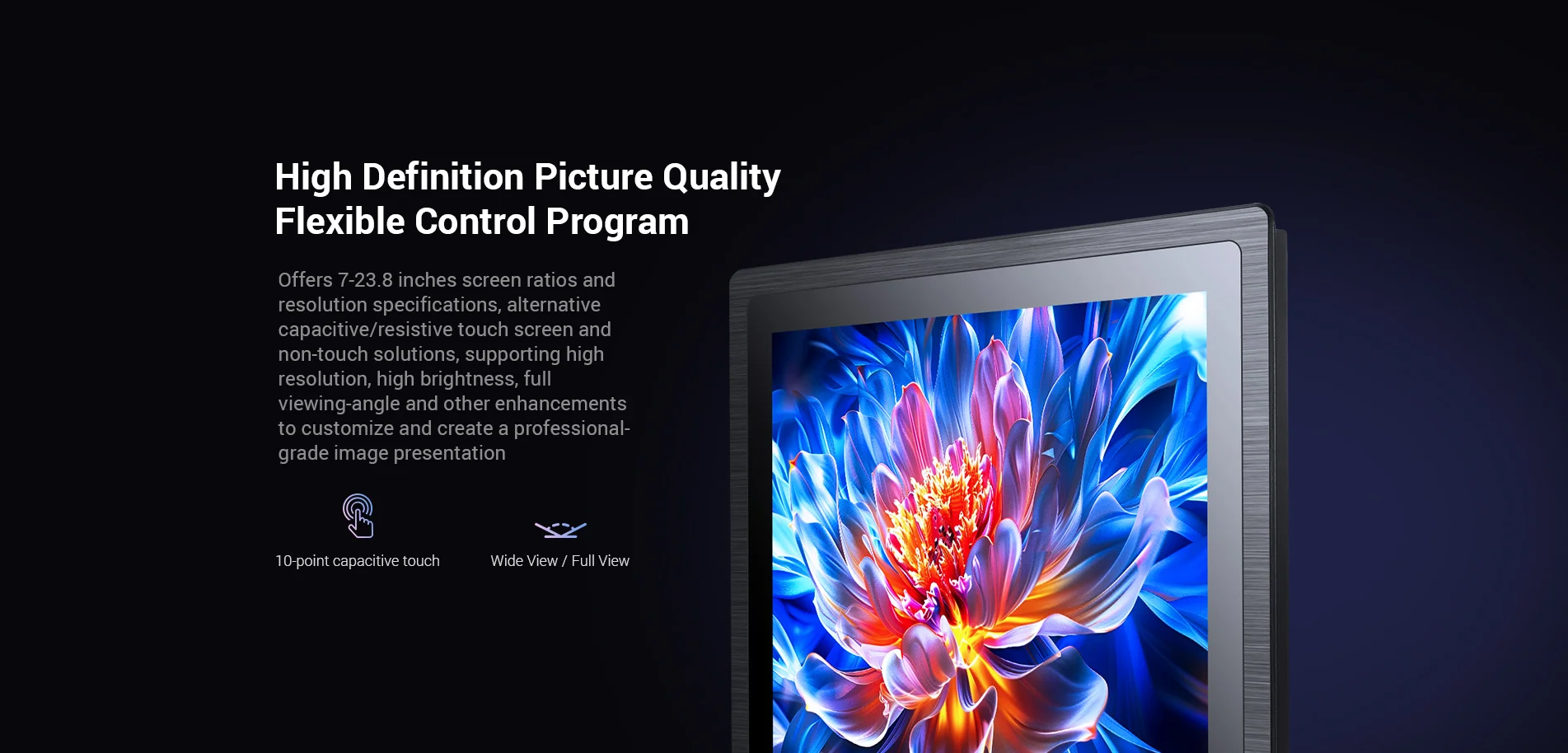

| Installation method | Recessed/External-embedded insallation is recommended,supporting wall mounted,desktop mounted,cantilever mounted,bom mounted, etc. |
| Model | Product size | ResoIution | Screen Ratio | Brightness | Contrast ratio | Viewing angIe | Manual |
|---|---|---|---|---|---|---|---|
| TPC070-M28 | 7″ | 1024*600 | 16:9 | 500cd/m² | 500:1 | 75/75/70/75 (L/R/U/D) | view |
| TPC080-M28 | 8″ | 1024*768 | 4:3 | 250~300cd/m² | 800:1 | 85/85/85/85 (L/R/U/D) | view |
| TPC101-M28 | 10.1″ | 1280*800 | 16:10 | 400cd/m² | 1000:1 | 85/85/85/85 (L/R/U/D) | view |
| TPC104-M28 | 10.4″ | 1024*768 | 4:3 | 400cd/m² | 1000:1 | 80/80/80/80 (L/R/U/D) | view |
| TPC116-M28 | 11.6″ | 1920*1080 | 16:9 | 250~300cd/m² | 1000:1 | 85/85/85/85 (L/R/U/D) | view |
| TPC120-M28 | 12″ | 1024*768 | 4:3 | 500cd/m² | 1000:1 | 85/85/85/85 (L/R/U/D) | view |
| TPC121-M28 | 12.1″ | 1280*800 | 16:10 | 350cd/m² | 1000:1 | 65/65/65/65 (L/R/U/D) | view |
| TPC133-M28 | 13.3″ | 1920*1080 | 16:9 | 400cd/m² | 1000:1 | 85/85/85/85 (L/R/U/D) | view |
| TPC150-M28 | 15″ | 1024*768 | 4:3 | 350cd/m² | 1000:1 | 89/89/89/89 (L/R/U/D) | view |
| TPC156-M28 | 15.6″ | 1920*1080 | 16:9 | 300cd/m² | 800:1 | 85/85/85/85 (L/R/U/D) | view |
| TPC170-M28 | 17″ | 1280*1024 | 5:4 | 250~300cd/m² | 1000:1 | 85/85/80/80 (L/R/U/D) | view |
| TPC173-M28 | 17.3″ | 1920*1080 | 16:9 | 400cd/m² | 600:1 | 80/80/60/80 (L/R/U/D) | view |
| TPC185-M28 | 18.5″ | 1920*1080 | 16:9 | 270cd/m² | 1000:1 | 89/89/89/89 (L/R/U/D) | view |
| TPC190-M28 | 19″ | 1280*1024 | 5:4 | 250~300cd/m² | 1000:1 | 85/85/80/80 (L/R/U/D) | view |
| TPC191-M28 | 19.1″ | 1440*900 | 16:10 | 250~300cd/m² | 1000:1 | 80/80/80/80 (L/R/U/D) | view |
| TPC215-M28 | 21.5″ | 1920*1080 | 16:9 | 250~300cd/m² | 1000:1 | 89/89/89/89 (L/R/U/D) | view |
| TPC238-M28 | 23.8″ | 1920*1080 | 16:9 | 250~300cd/m² | 1000:1 | 89/89/89/89 (L/R/U/D) | view |
I. Display Panel Customization
- Upgradeable wide-temperature, high-brightness, full viewing angle LCD panels
- Frame bonding and full optical lamination available for upgrade
- Custom anti-glare (AG) & UV-resistant touch screens as optional upgrades
II. Appearance & Interface Customization
- Custom boot logo programmable on request
- DVI / BNC display interfaces available as upgrades
- DC power input interface upgrade supported
- USB touch interface upgrade optional
- Custom housing color available
III. Functional Customization
- Waterproof touch and COM port touch upgrades supported
- Optional 100W / 500W cameras mounted beneath the touch screen
- Built-in speakers available for upgrade
