Z Series Model A Wall Mounted Industrial LCD Display Monitor

Z series Model A TouchThink embedded industrial monitor features
  • Designed with a lightweight aluminum alloy shell
  • High-precision die-cast aluminum molding, with high strength, toughness and high heat dissipation effect

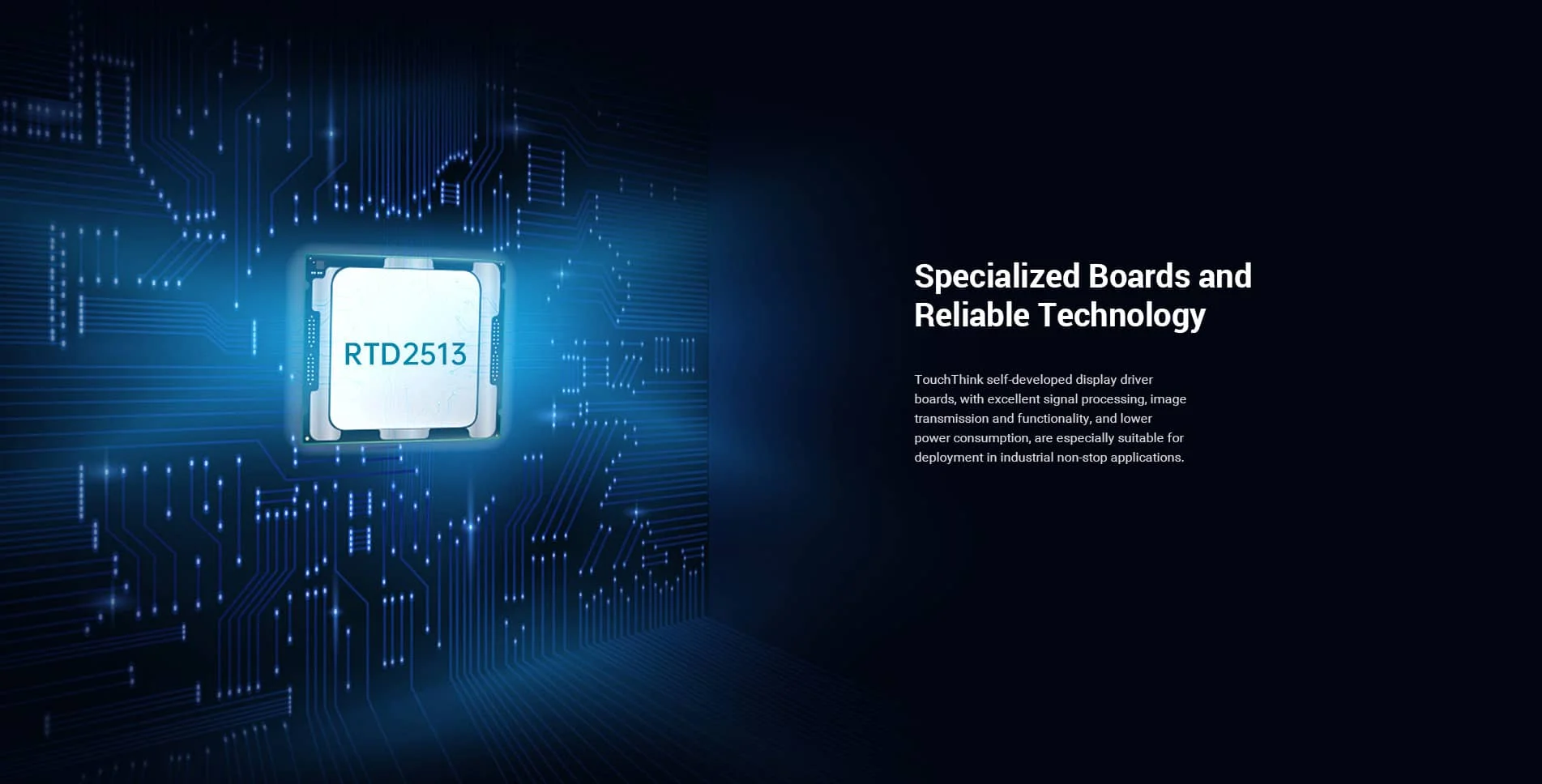

  • Self-developed display drive board with multiple touch modes
  • Industrial protection, Applicable to various harsh environments.Support VGA, HDMI, DP,Automatic identification signal channel.

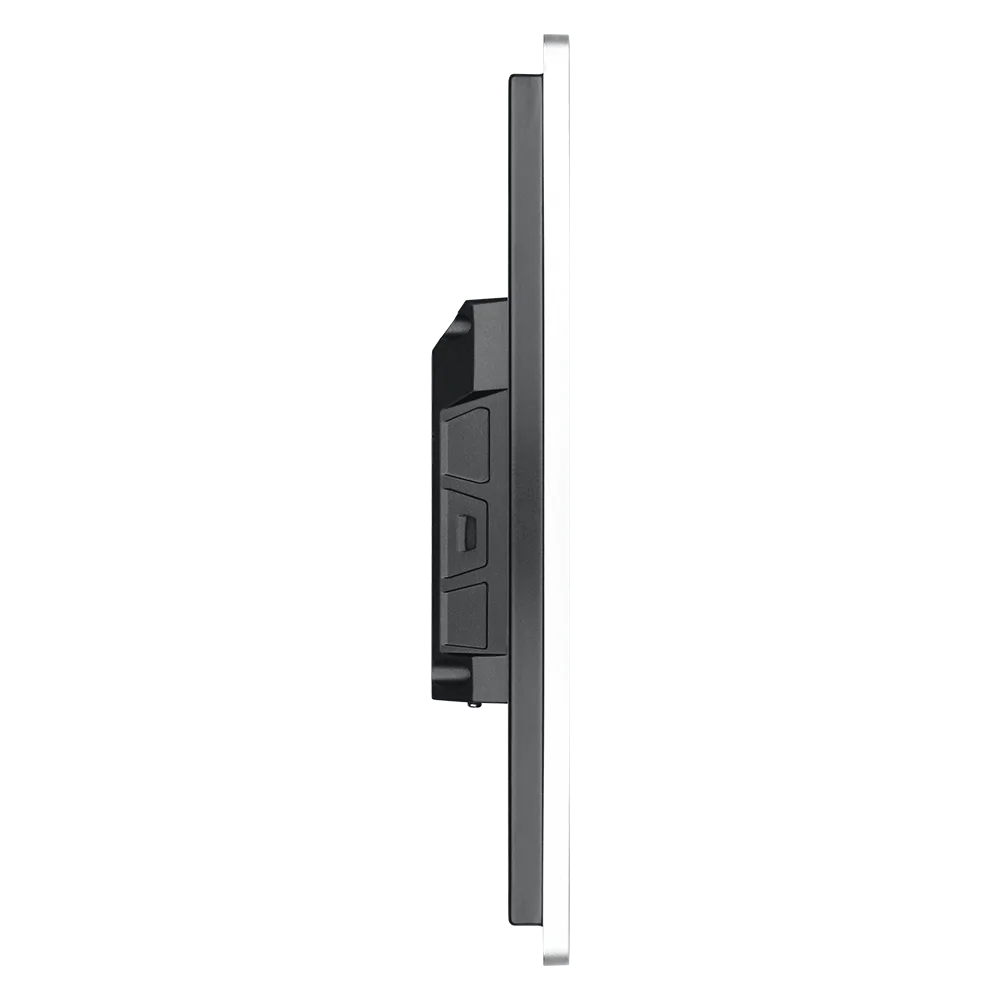

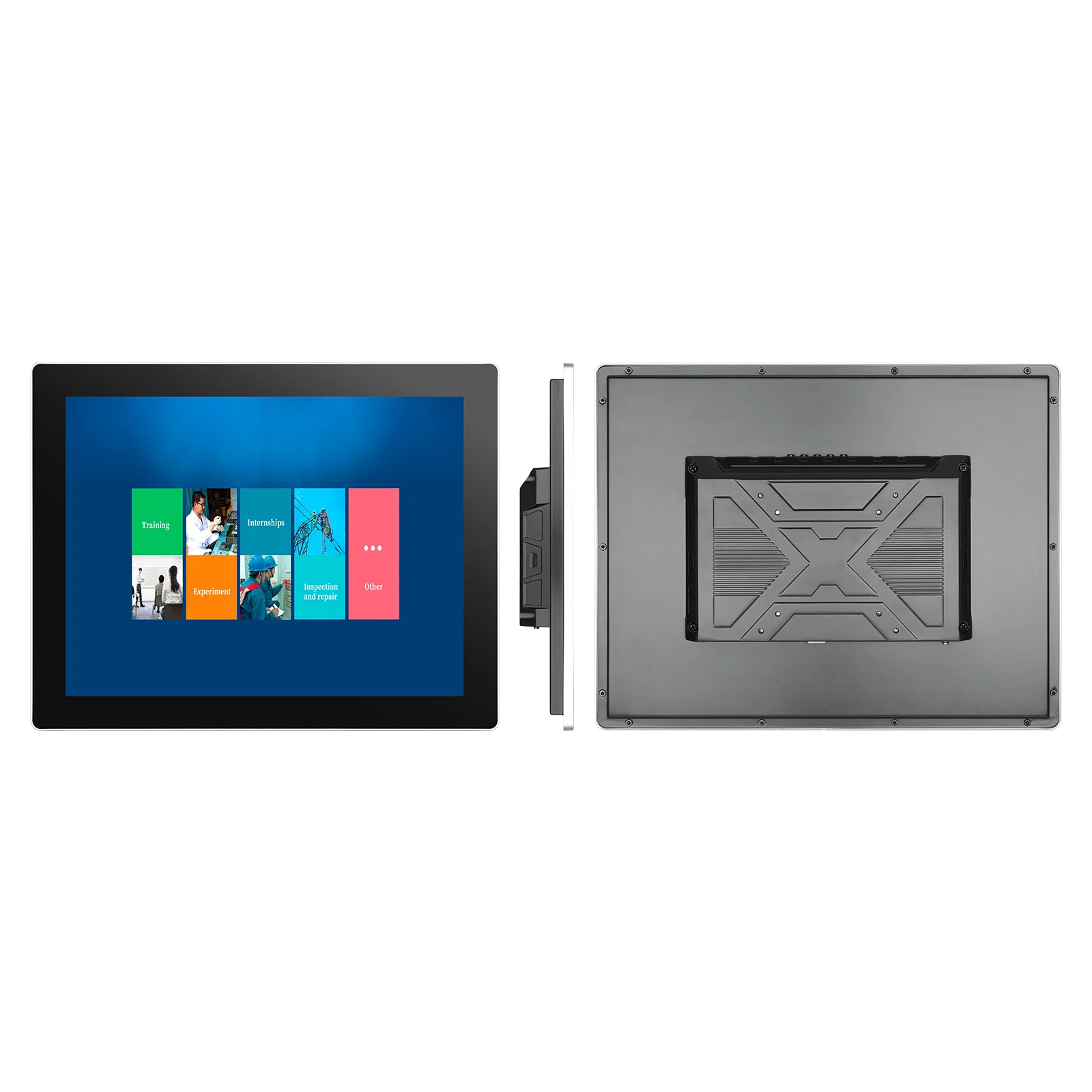

EmbeddedWall-mounted


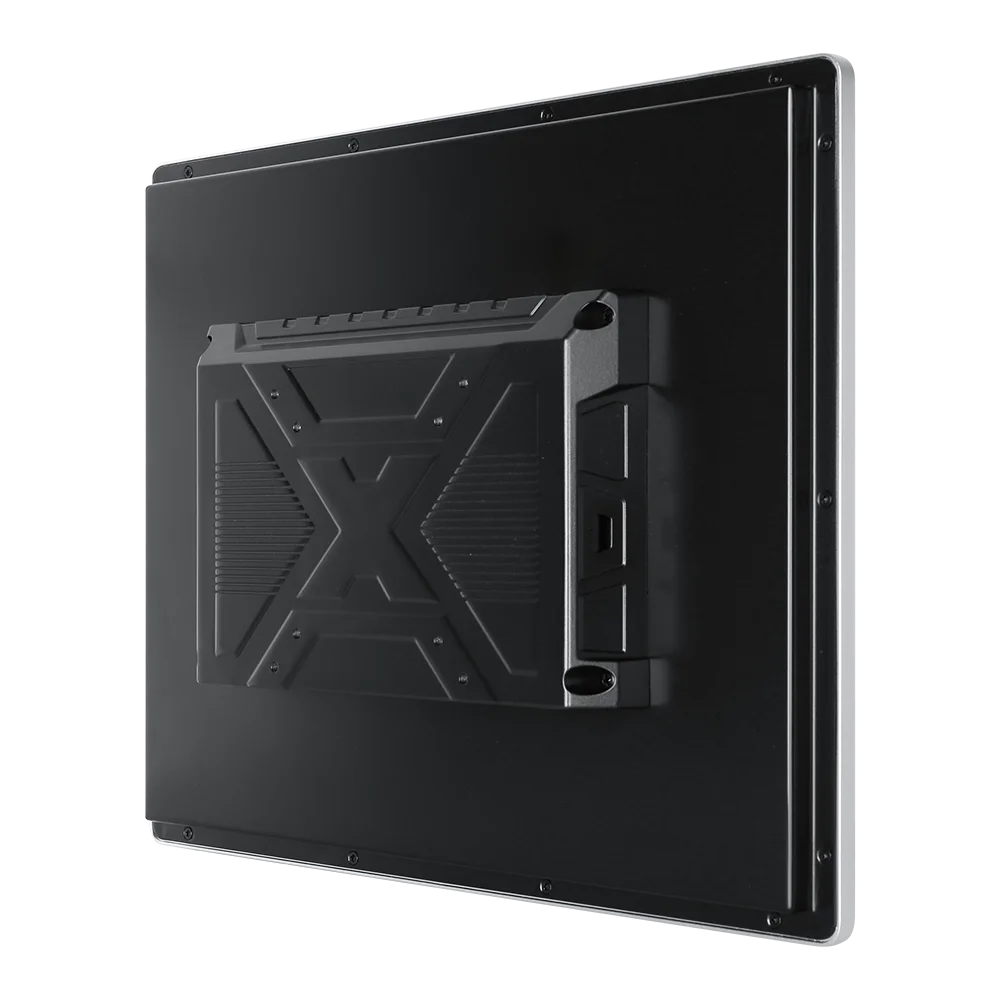

The whole machine is equipped with a self-developed industrial display driver board, the shell adopts a closed all-aluminum alloy structure, and the back cover is die-casting, which has high strength, toughness and high heat dissipation effect, light weight, high strength, corrosion resistance, heat conductivity, compression and impact resistance. It is widely used in industrial control industry. Communications, electric power, intelligent self-service terminal equipment and other automation applications.

15-inch Wall-mounted Industrial LCD Display Monitor Interfaces
Only 15″ interface is shown, please refer to the below PDFs for different size (7-27″)
Common Configuration
CPU RTD2513BR

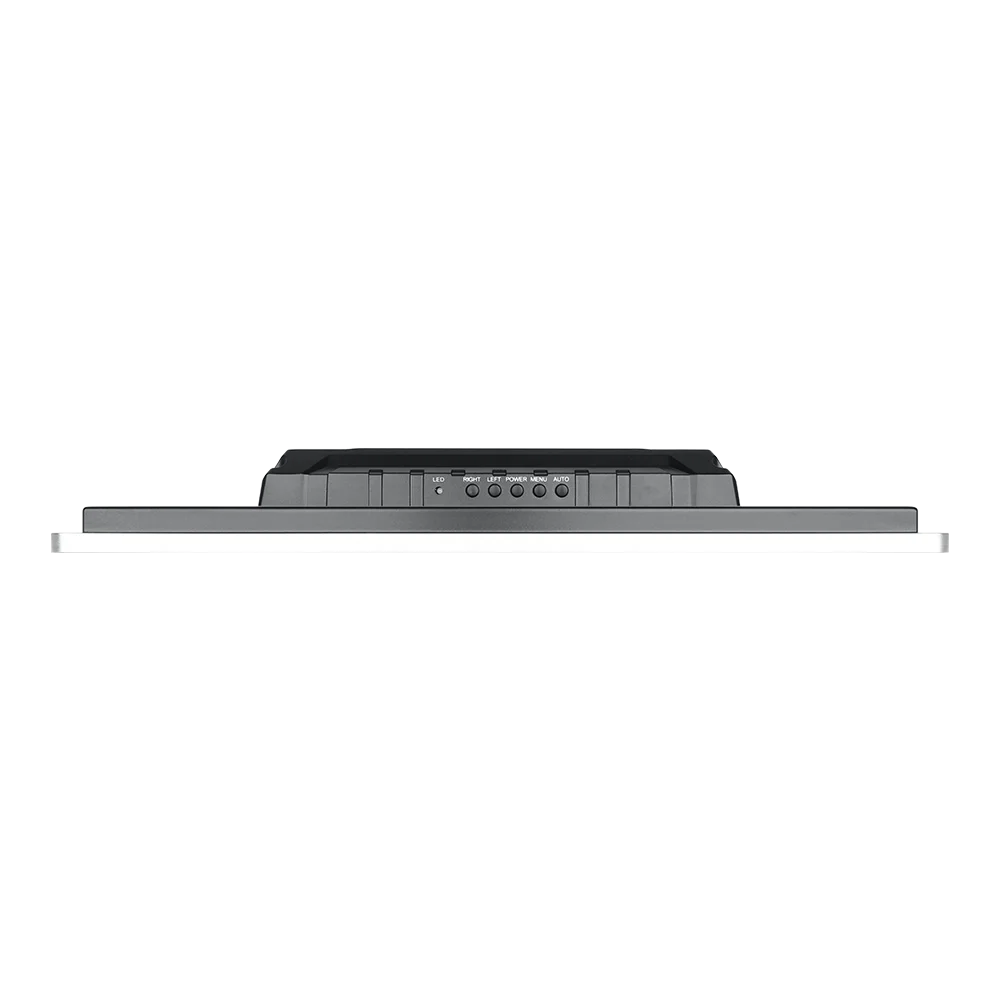

Key FunctionsAUTO, MENU, POWER, LEFT, RIGHT
Menu LanguagesMulti language (default English)
Video InputPC-RGB:Format,Up to 1920*1080@60Hz
PC-RGB:Color, 16bit,24bit, 32bit

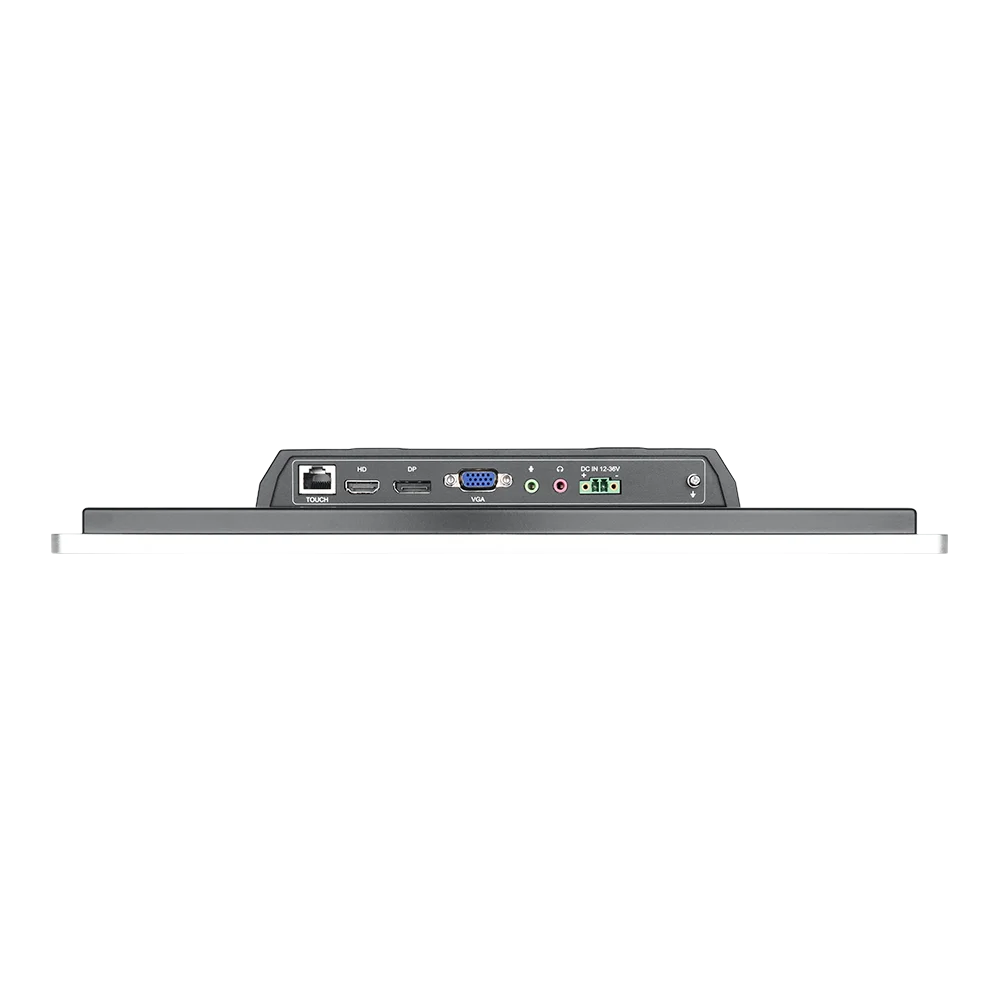

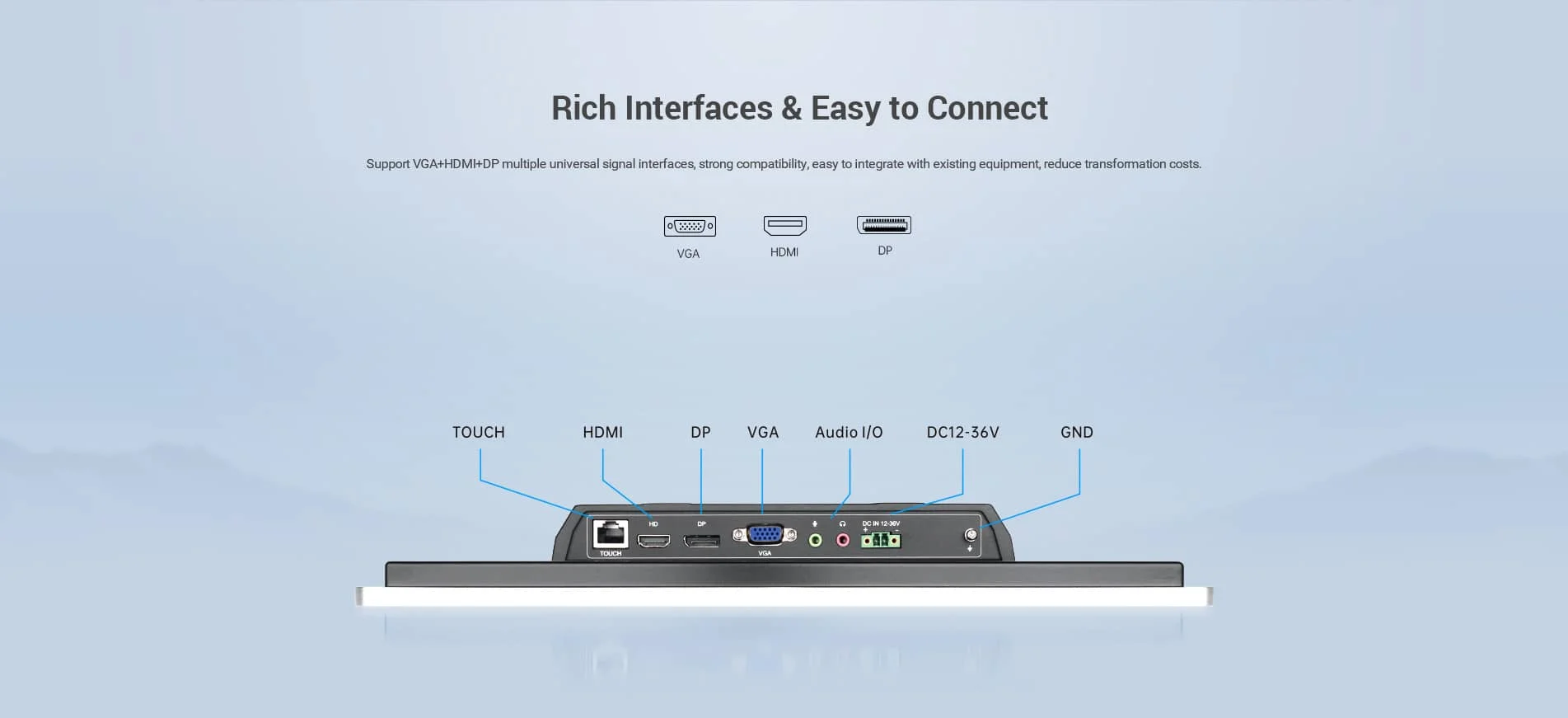

Interfaces
Power interface1*2Pin Phoenix terminal (Optional with thread DC 5.5*2.1)
HDMI1*HDMl, high-definition audio digital signal transmission, support HDMl data input, maximum support 1080P
VGA1*VGA, Analog signal transmission, supporting the best resolution of VGA
DP1*DP
TOUCH1*RJ45 port (USB definition) comes standard with Rj45 to USB touch cable
AUDIO I/01*AUDl0 l/0, supporting audio input and output; Headphone stand: 3.5mm standard interface
Grounding1*GND
Touch Parameters
Capacitive Touch

Projection capacitive touch,10-point multi touch

Touch object: hand or capacitive touch pen

Light transmission:>88%

Controller: USB( COM customized)

Resistive Touch

Resistive touch, Single point

Touch object: finger or stylus

Light transmission:>78%

Controller: USB( COM customized)

Non touchTransmittance:>92%
Reliability Parameters
Operating temperature-10°C~60°C(-20°C~70°C can be customized)
Storage temperature-20°C~70°C
Relative humidity95% non-Condensing
Other Parameters
Power input12V-36V power input
Power adapter24V/1.5A
Fuselage PropertiesBody material: aluminum alloy, body color: classic black, technical silver
Warranty policyThree years (one year free warranty)

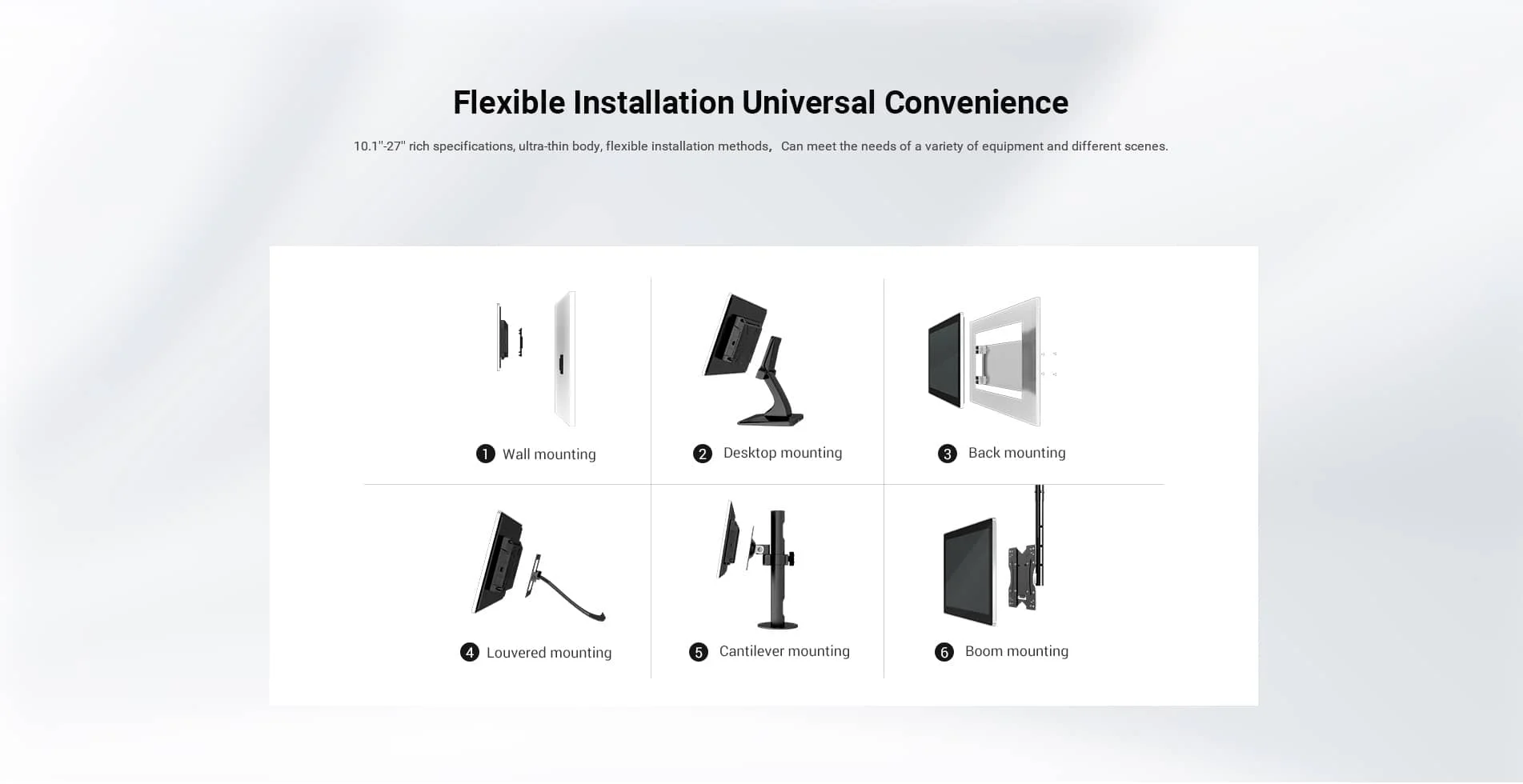

Installation methodSupport VESA, Wall-mounted, Desktop, Louver installation, Cantilever installation, Boom type installation, etc
Installation Methods for Wall-mounted Industrial LCD Display Monitor
Product sizeResoIutionScreen RatioBrightnessContrast ratioViewing angIeManual
10.1″1280*80016:10400cd/m²1000:185/85/85/85 (L/R/U/D)view
10.4″1024*7684:3400cd/m²1000:180/80/80/80 (L/R/U/D)view
11.6″1920*108016:9250~300cd/m²1000:185/85/85/85 (L/R/U/D)view
12″1024*7684:3500cd/m²1000:185/85/85/85 (L/R/U/D)view
13.3″1920*108016:9400cd/m²1000:185/85/85/85 (L/R/U/D)view
15″1024*7684:3350cd/m²1000:189/89/89/89 (L/R/U/D)view
15.6″1920*108016:9300cd/m²800:185/85/85/85 (L/R/U/D)view
17″1280*10245:4250~300cd/m²1000:185/85/80/80 (L/R/U/D)view
17.3″1920*108016:9400cd/m²600:180/80/60/80 (L/R/U/D)view
18.5″1920*108016:9270cd/m²1000:189/89/89/89 (L/R/U/D)view
19″1280*10245:4250~300cd/m²1000:185/85/80/80 (L/R/U/D)view
21.5″1920*108016:9250~300cd/m²1000:189/89/89/89 (L/R/U/D)view
23.8″1920*108016:9250~300cd/m²1000:189/89/89/89 (L/R/U/D)view
27″1920*108016:9250~300cd/m²1000:189/89/89/89 (L/R/U/D)view

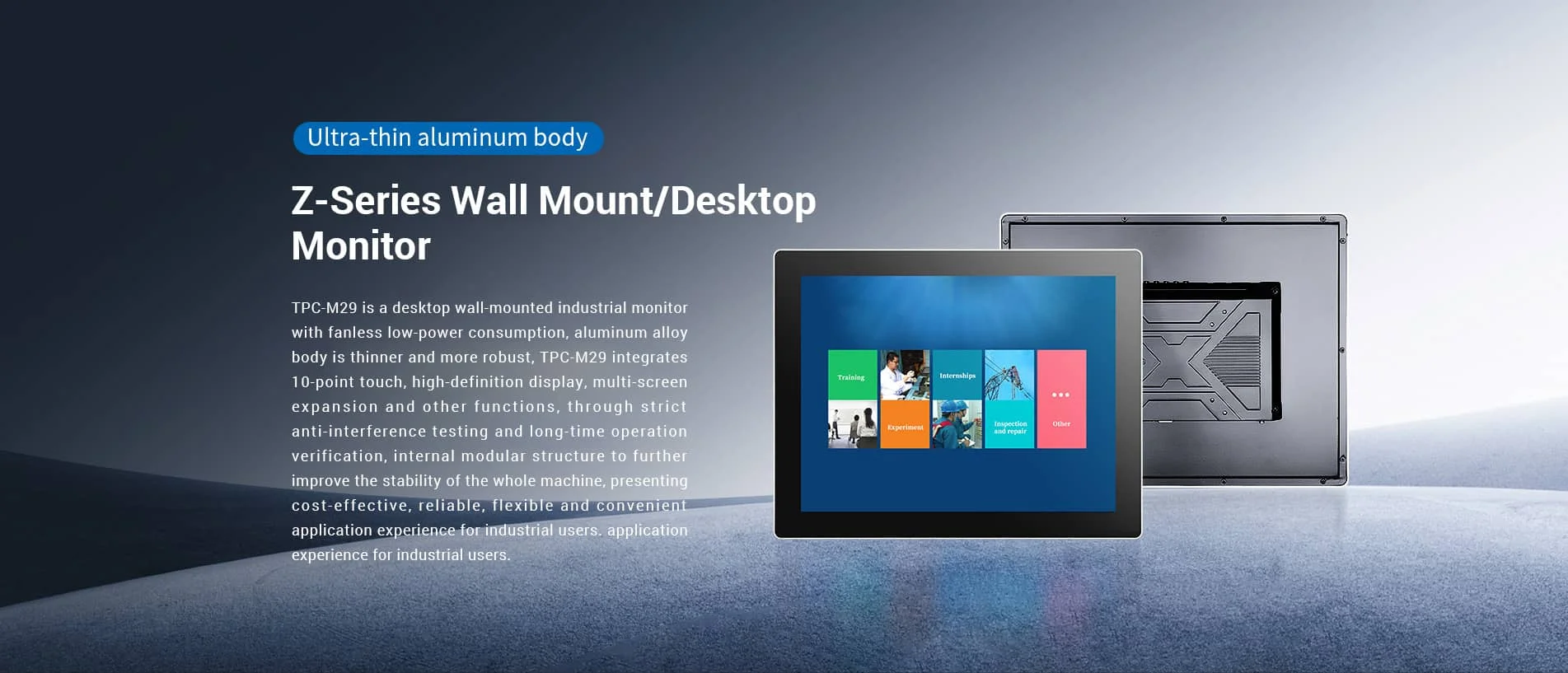

Wall Mounted or Desktop Monitor
Wall Desk mount Monitor Advantages

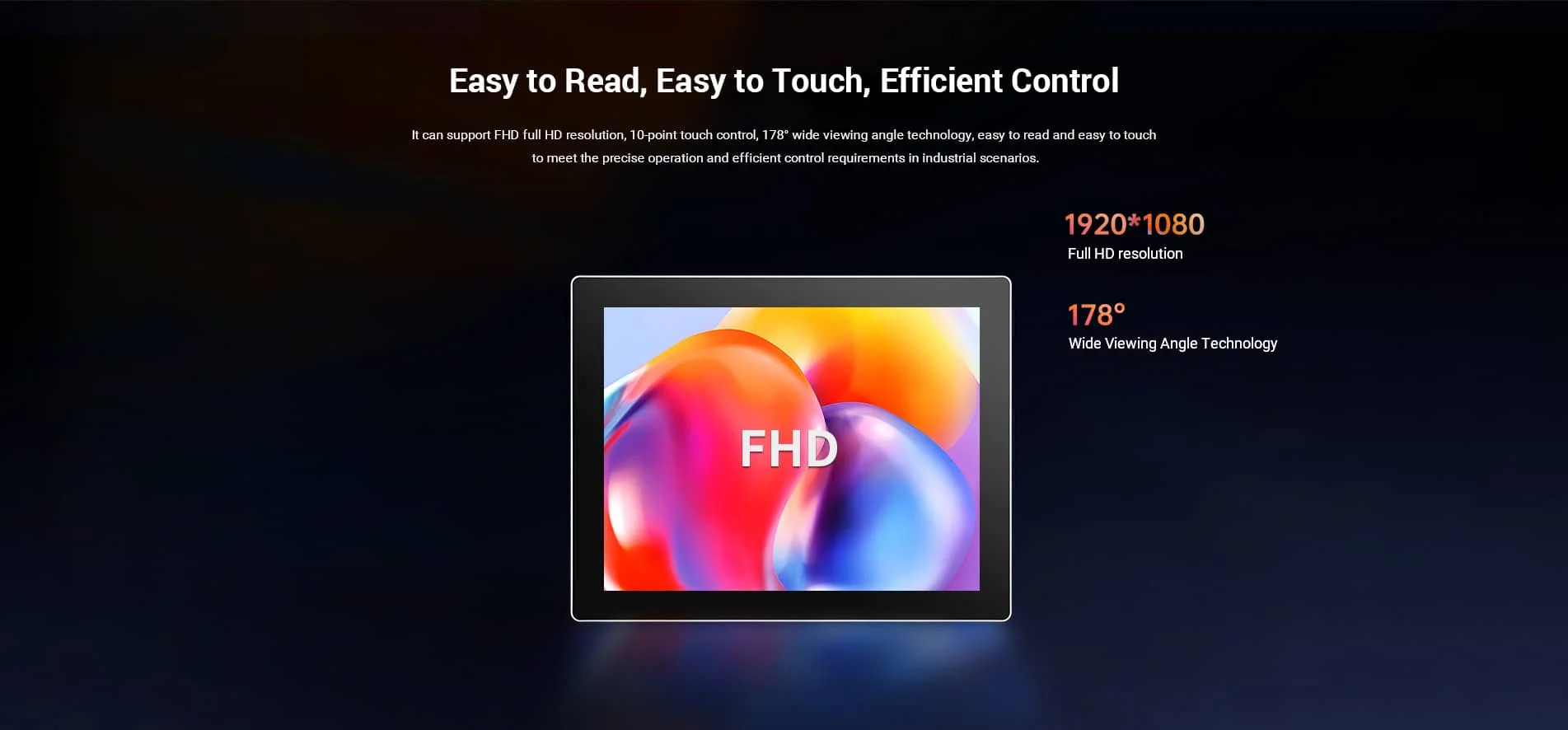

1920×1080 FHD Wall Mount Desktop Monitor
Aluminum Alloy Desktop Wall Mount Monitor
Desktop Display Wall Mount Monitor VGA HDMI DP

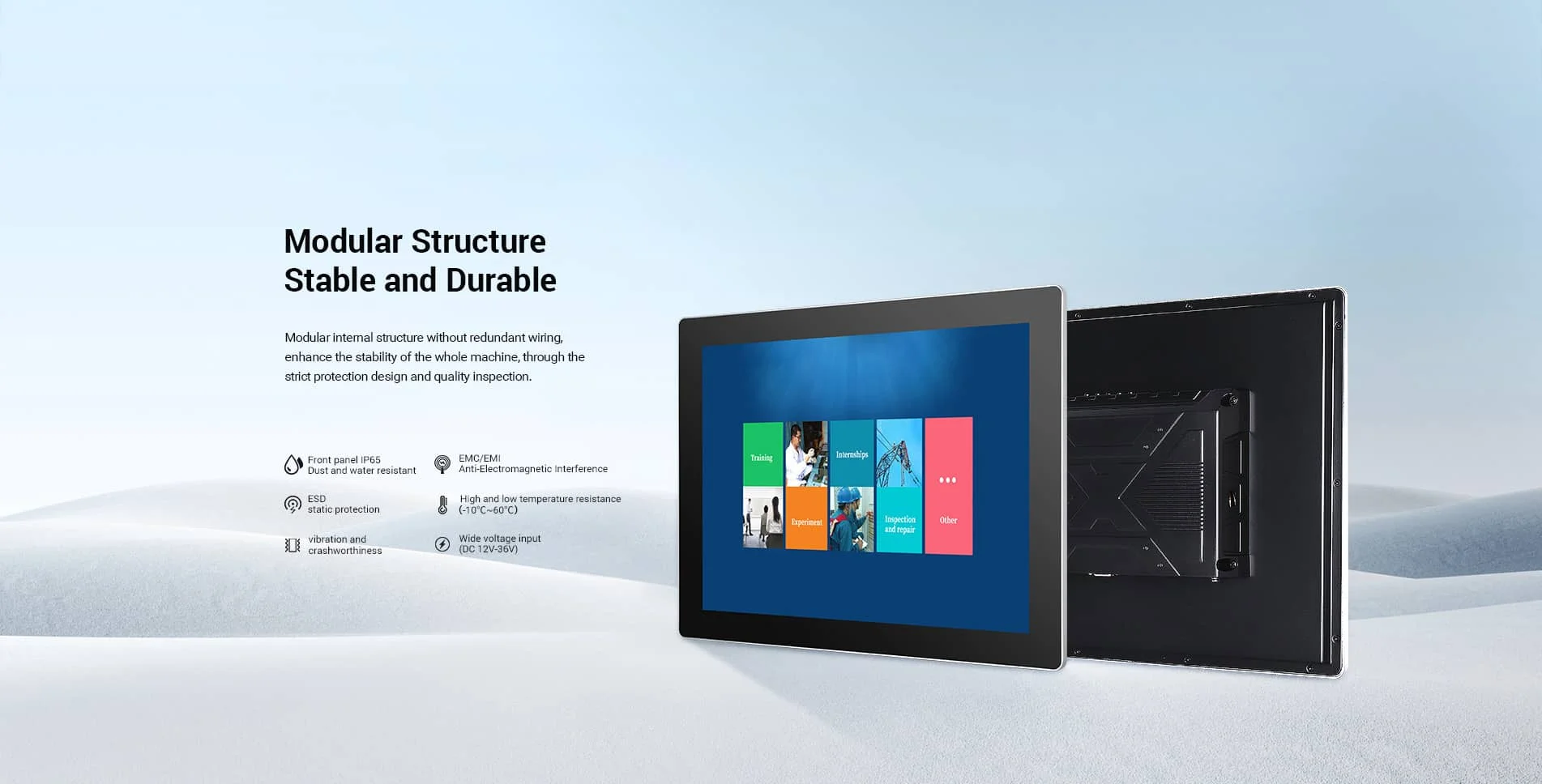

IP65 ESD EMC EMI Industrial LCD Display Monitor
RTD2513 Wall Mount Monitor Tabletop Display
TouchThink Z Series Model A Industrial LCD Monitors supports multi-installation methods such as wall mount, desktop, VESA, Louvered, Cantilever, Boom Mounting
