High Brightness Panl PC 1000nits Touch Screen Windows HMI
- 800~1000nits high brightness and sunlight readable.
- 7~23.8 inches available, OEM/ODM acceptable.
- Intel N97/J6412/I3/I5/I7 CPU processor optional
- 3mm Super Thin Front Bezel. Aluminum alloy enclosure,
- panel mount/VESA mount.

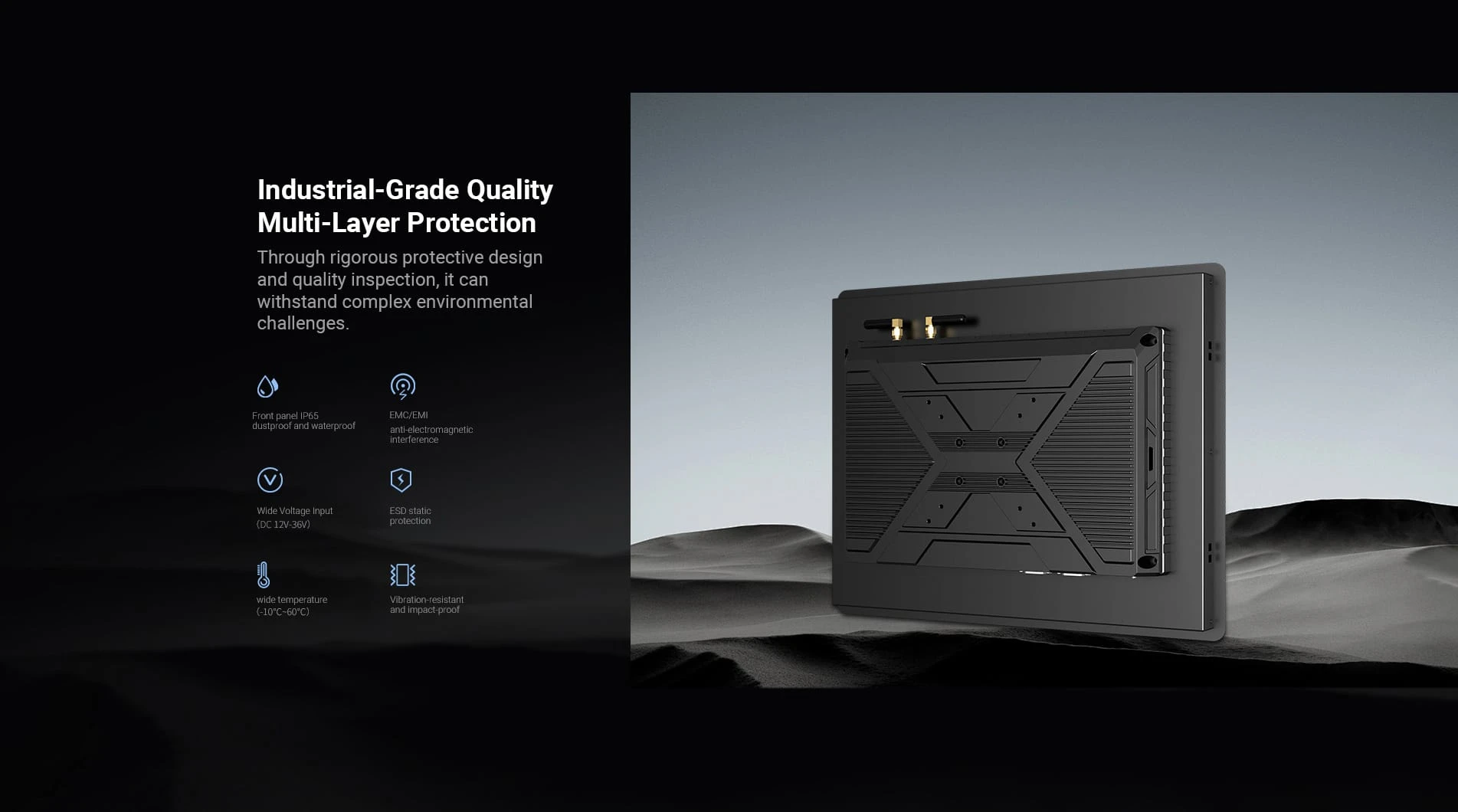

- IP65 protected flat front panel, optical bonding technology.
- Fanless, excellent heat dissipation design.
- High compatibility with 99% of industry software
Windows Version
The Windows High Brightness Panel PC with 3mm bezel and embedded design enables easy panel mounting. Intel CPU processor, 1000nits high brightness with auto dimming, Optical bonding technology, IP65 protected front, industrial components make it to satisfy various applications such as machinery, automation control, smart factory, transportation, health care, BMS, energy management, robotics, etc., supports 24H operation in different environments.
| Common Configuration | |
| CPU | Intel® N97 as standard, Celeron™ J1900, J4125, J6412, Core™ I3/I5/I7 optional |
| N97 quad-core, 2.0GHz | |
| Harddisk | 64G/128/256/512G SSD, 1T/2T HDD optional |
| Memory | 4G/8G/16G/32G optional |
| OS | Win10/Win11 |
| 3G/4G | support |
| Wi-Fi | Dual-band 2.4/5G |
| Bluetooth | BT5.0 |
| GPS | Optional |
| MIC | Optional |
| RTC real time clock | support |
| Timer power on/off | support |
| Wake-on-LAN | support |
| Power on | support |

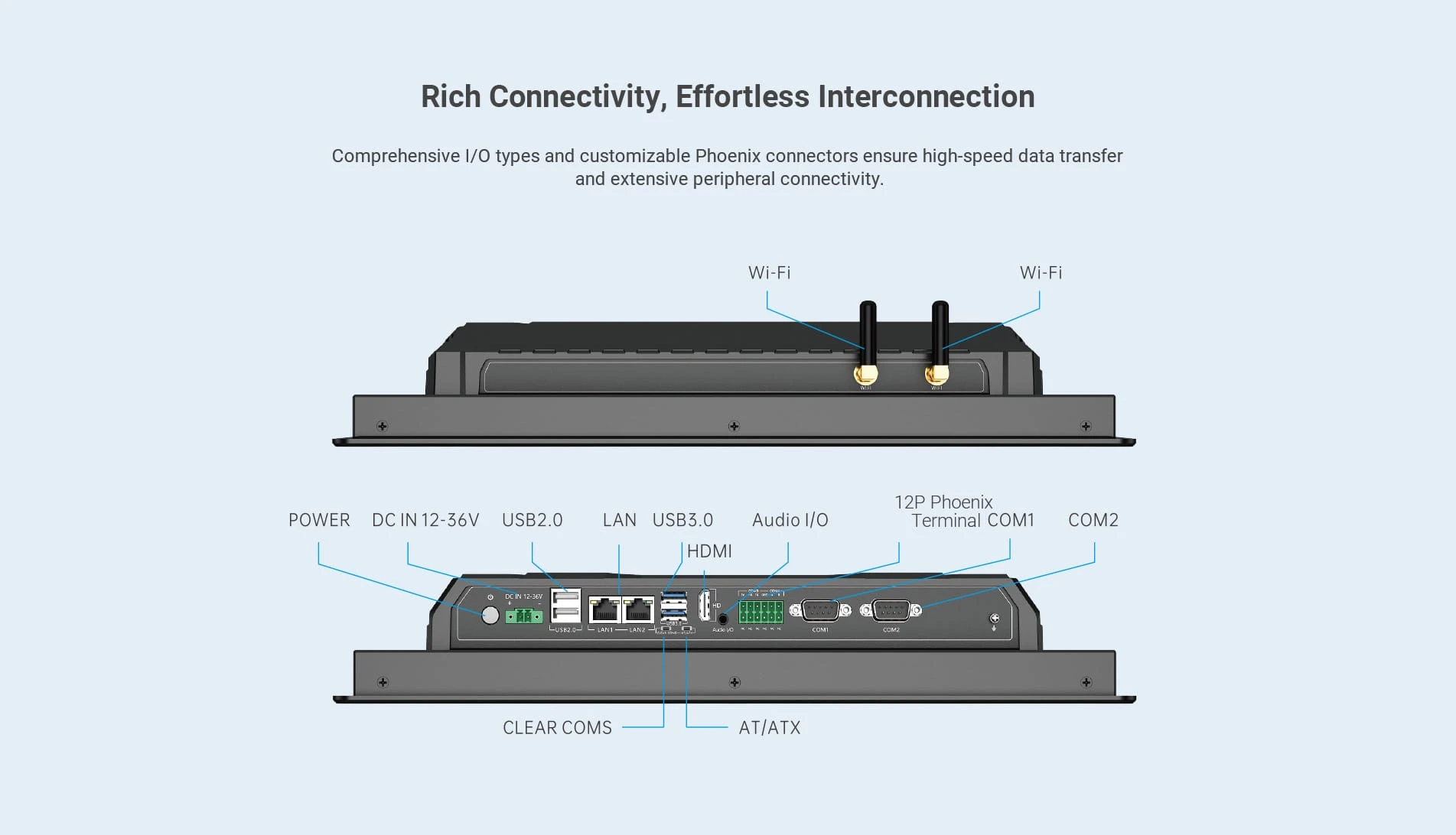

| Interfaces (Only for N97 motherboard. Contact us for more) | |
| USB interface | 8-way USB interface (2-way USB3.0 TYPEA standard socket, 2-way USB3.0 onboard needle interface, 2-way USB2.0 TYPEA standard socket, built-in 1 reserved USB2.0 touch interface seat, 1 USB2.0 needle port |
| DC port | 1*DC 2.5, supports wide voltage 12V-36V power supply |
| Video interface | Support HDMI, DP data output |
| LVDS | 1 dual-channel LVDS interface |
| RJ45 Ethernet | Support 2-way RJ45 Intel 2.5G network card chip, KTI226V Ethernet interface |
| Headphone holder | Output 3.5mm standard interface |
| SIM card | SIM card interface standard interface supports various standards |
| Serial interface | COM*6, default RS232 protocol, can be changed to 422/485 protocol |
| Screen Parameters (Only for N97 motherboard. Contact us for more) | |
| Color | 16.7M |
| Dot Pitch | 0.264mm |
| Screen panel | Industrial control screen |
| Contrast | 2000:1 |
| Display brightness | 800cd/m2 |
| Viewing angle | 89/89/89/89 (L/R/U/D) full view |
| Backlight type | LED backlight screen life ≥50000h |
| Grayscale response time | 5ms |
| Touch method | Non-touch, capacitive touch, and resistive touch are three options |
| Installation | Embedded, wall-mounted, desktop, etc. |
| Touch Parameters | |
| Capacitive Touch | Projection capacitive touch,10-point multi-touch Touch object: hand or capacitive touch pen Light transmission:>88% Controller: USB( COM customized) |
| Resistive Touch | Resistive touch: single point Touch object: finger or stylus Light transmission:>78% Controller: USB( COM customized) |
| Non touch | Transmittance:>92% |
| ReliabilityParameters | |
| Operating temperature | -10°C ~ 60°C |
| Storage temperature | -20°C ~ 70°C |
| relative humidity | 95% non-condensing |
| Mean Time Between Failures (MTBF) | 7*24H |
| Other Parameters | |
| Power consumption | ≤18W |
| Power input | DC12V-36V |
| Warranty Policy | 3 years ( 1 year free warranty ) |
| Body color | black |
| Packing list | Industrial all-in-one machine, power cord, adapter, installation accessories, instruction manual, warranty card |
