Z Series IPC-A
Adopting a high-strength aluminum fin heat dissipation shell and precision sheet metal box structure for stable performance and strong impact resistance. Modular industrial design with H610 chipset and Intel’s 12th generation Alder lake-S series independent CPU, supporting multi-tasking and high-load computing. Rich I/O expansions make it widely applicable in fields like industrial automation, machine vision, power communication, rail transit, and smart healthcare.

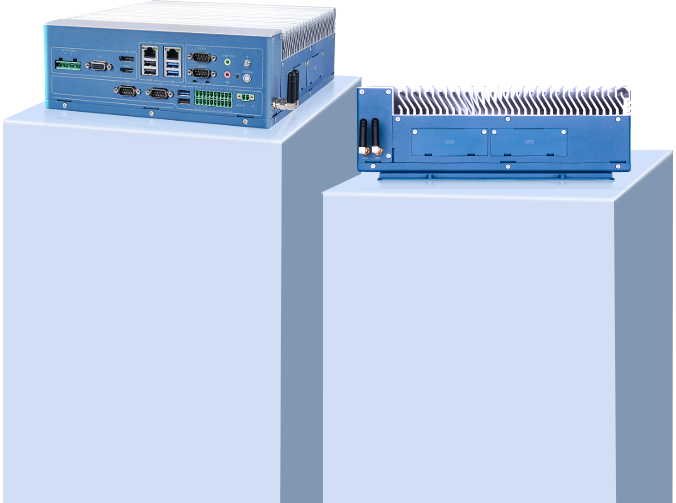

Embedded Industrial Computer Z Series
Size: 250mm x 274mmx102mm
- Discrete CPU, supports Intel® 12th/13th/14th generation Core™ i3/i5/i7/i9 processors
- Rich I/O interfaces, USB*6, COM*4 and 16bit isolated GPIOs
- RAM: 16GB, Supports 2*262-Pin SODIMM, dual-channel DDR5 4800MHz, Max. 64GB
- Storage: 2*2.5″ SATA3, 1*mSATA
- Intel® H610 PCH chipset
- Optional 4G/5G network
- OS: Windows 10/11 (Linux/Ubuntu/Redhat/Debian options)
- Pull-out hard disk design for easy storage expansion,maintenance and upgrading
- Modularized industrial design, more convenient for expansion and upgrading.
- 8K+4K three-screen simultaneous display/disparate display, 1DP+1HDMI and 1*VGA
| Product Model | Standard Version | TPC05-WIPC |
| System Processor | CPU | Intel® Alder lake-S 12th Gen Core™ i9/i7/i5/i3/Pentium/Celeron LGA1700 CPU |
| CPU Model: I3-12100, I5-12400, I7-12700, I9-12900 (Upgradeable to 13th/14th generation discrete CPU) | ||
| Memory | Standard 16GB;Support 2*262-Pin SODIMM, dual-channel DDR5 4800MHz, max 64GB | |
| Storage | 2*2.5” SATA3, up to 6Gbps transfer speeds1*Full-length mSATA with SATA3.0, supports up to 6Gbps transfer rate | |
| Chipset | Intel® H610 PCH | |
| Operating System | Windows 10/11; Linux/Ubuntu/Redhat/Debian options | |

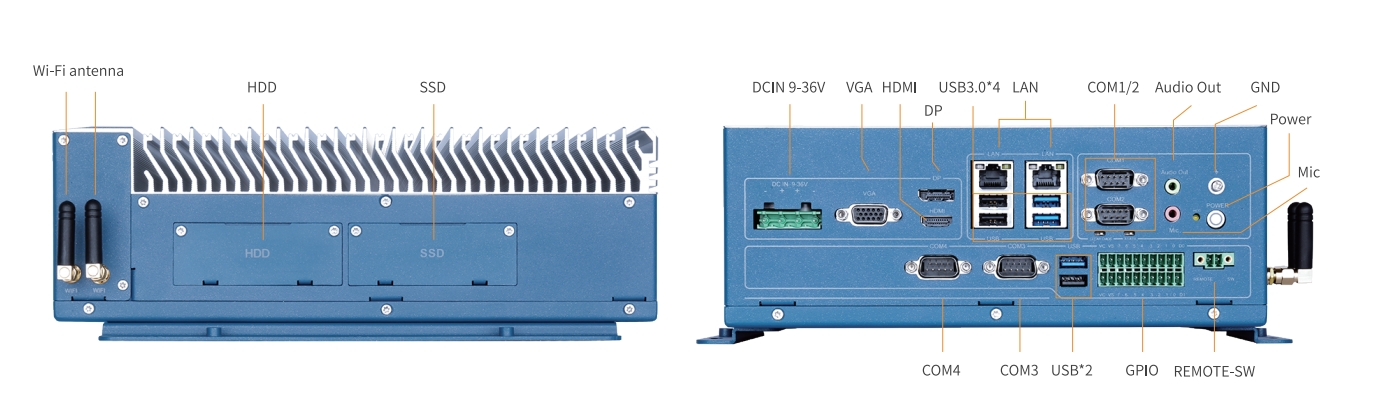

| I/O Ports | USB | 3*USB3.0, 3*USB2.0, 4*USB2.0 pins (built-in) |
| Ethernet | 2* RJ45 Ethernet (1000 Mbps + 2500 Mbps) | |
| Serial Port | 4*COM, supports upgrade to 6*COM (2*RS232/422/485 COM1, COM2 switchable by BIOS setting; 4*RS232/485 switchable by jump cap) | |
| Display Port | 1*DP, 1*HDMI, 1*VGA | |
| GPIO | 16-channel opto-isolated (can be upgraded with 16-channel non-isolated GPIOs) | |
| Wi-Fi/Bluetooth | 1*M.2 support Key-E interface WiFi/Bluetooth module | |
| 4G/5G | 1*M.2 support Key-B interface M.2 5G (3052/3042) module or M.2 4G (3042) module | |
| Audio | Realtek ALC897 audio, 1*Line out and 1*MIC high fidelity audio, support 5.1 channels | |
| Buttons/Indicators | 1* Power Button w/LED, 2-Pin Phoenix Terminal Remote Switch, AT-ATX DIP Switch, Clear Cmos DIP Switch | |
| Power | Power Supply | DC in 9-36V |
| Power Consumption | ≤150W | |
| Power Adapter | DC 24V adapter (optional) | |
| Reliability | Operating Temperature | -20℃～70℃ |
| Storage Temperature | -30°C~80°C | |
| Reliability Testing | Anti-static design, anti-surge design | |
| Mechanical | Material | SGCC galvanized sheet, aluminum alloy |
| Color | Silver + Dark Blue | |
| Installation | Wall-mounted, desktop, rack-mounted | |
