Z Series Model A Rugged VESA | Wall-mounted Industrial All-in-one PC
- 10.1~27 inches available.
- RK3568/RK3588 optional
- Features a lightweight aluminum alloy housing design.

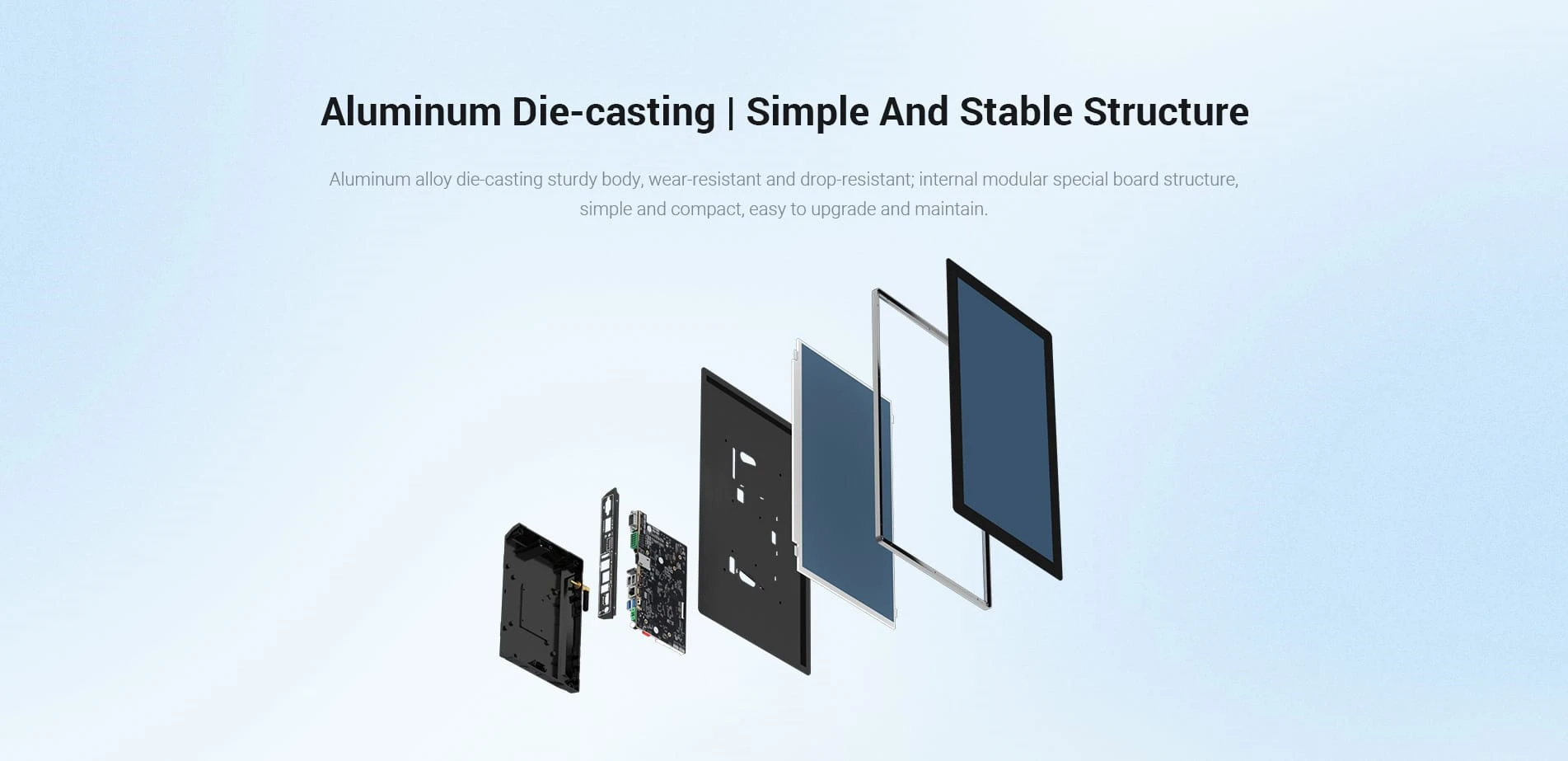

- High-precision die-cast aluminum construction provides exceptional strength durability, and thermal dissipation efficiency
- Self-developed display driver board with multi-touch mode compatibility

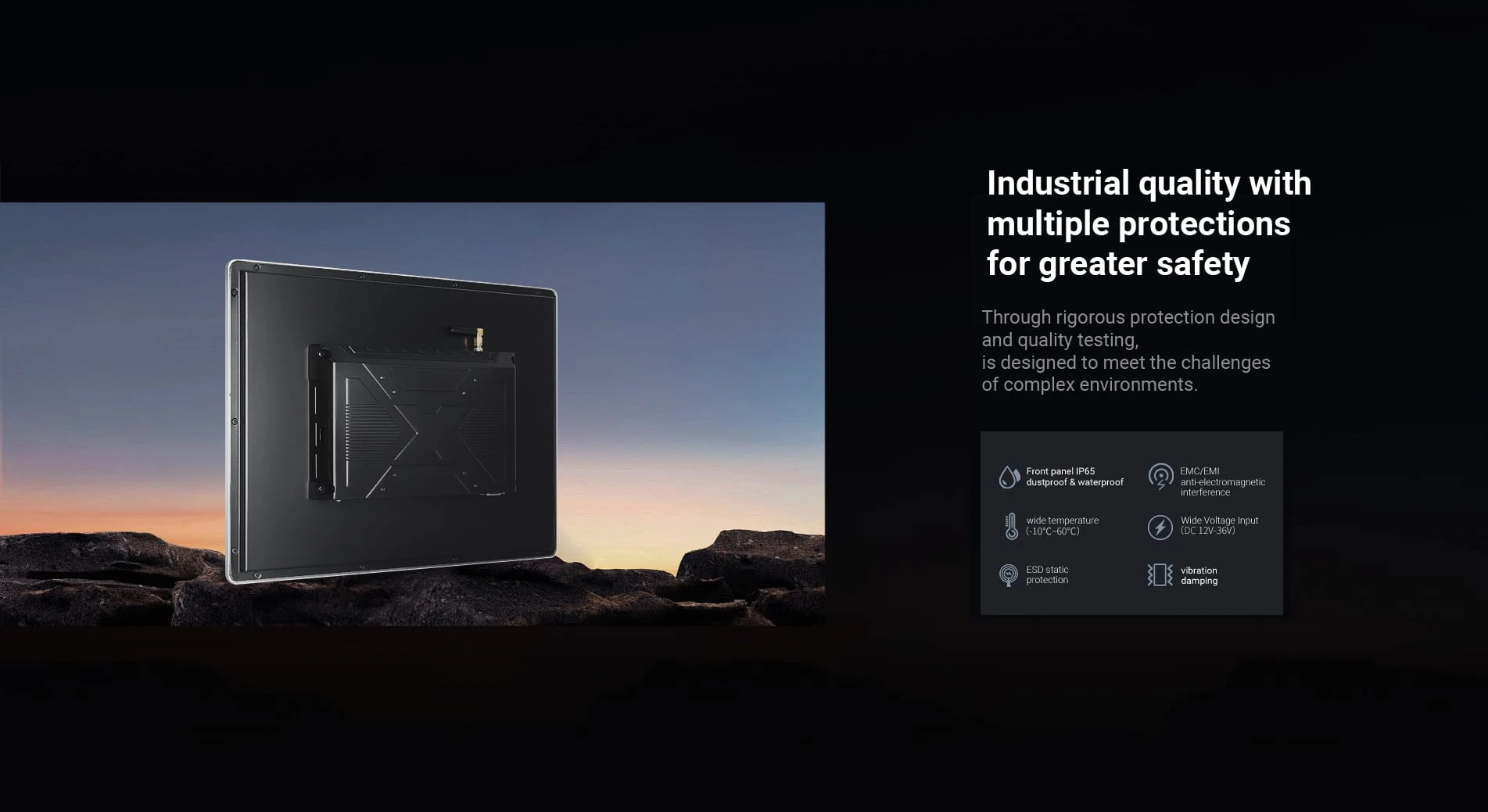

- Industrial-grade protection, designed to operate reliably in multiple harshenvironments
- Supports VGA, HDMl, and DisplayPort (DP) interfaces with automatic signalinput detection

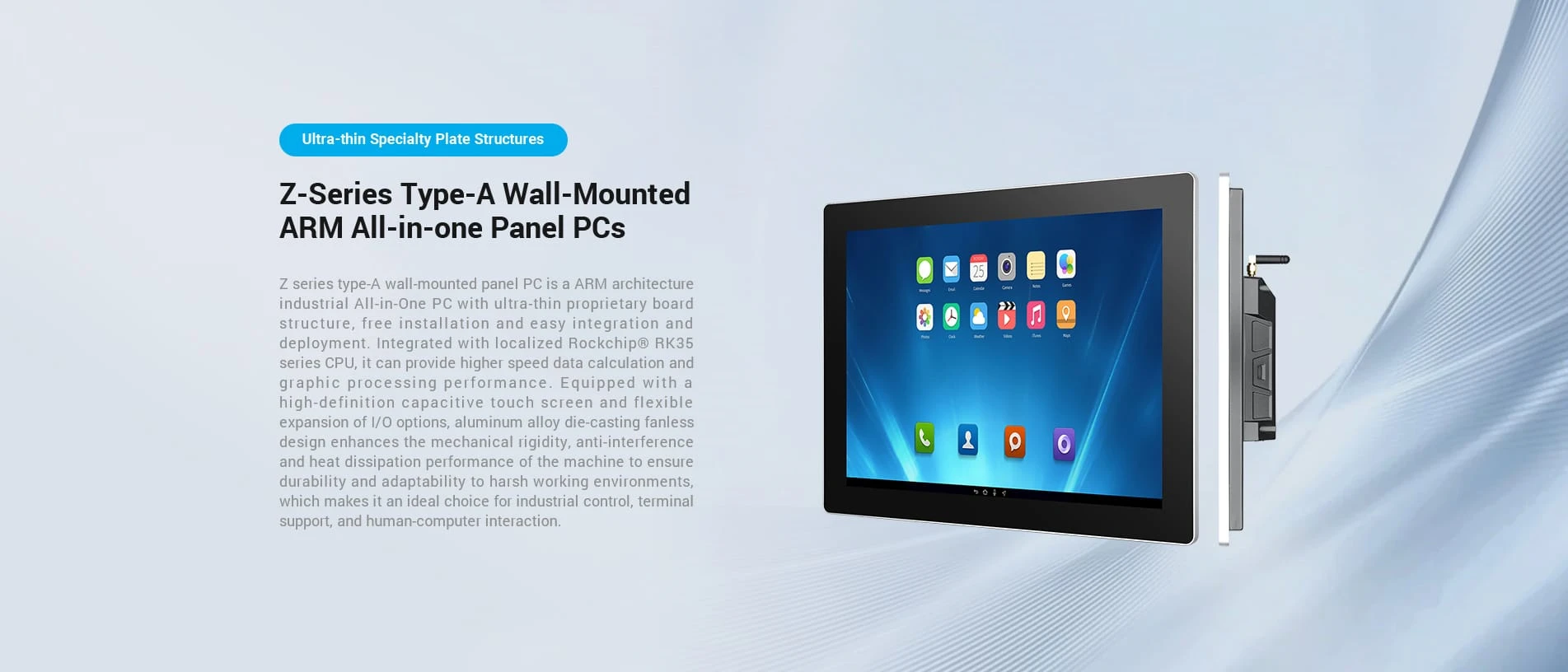

Z series wall-mounted A model ARM architecture all-in-one PC, 10.1“~27” and other sizes to choose from, ultra-thin modular design, free installation, easy to integrate and deploy. Equipped with high-definition capacitive touch screen and flexible expansion of I/O options, aluminum alloy fanless design to enhance the mechanical rigidity of the machine, anti-jamming and heat dissipation performance, to ensure durability and adaptability to harsh working conditions, is the ideal choice for industrial control, terminal support, human-computer interaction.
| Common Configuration | |

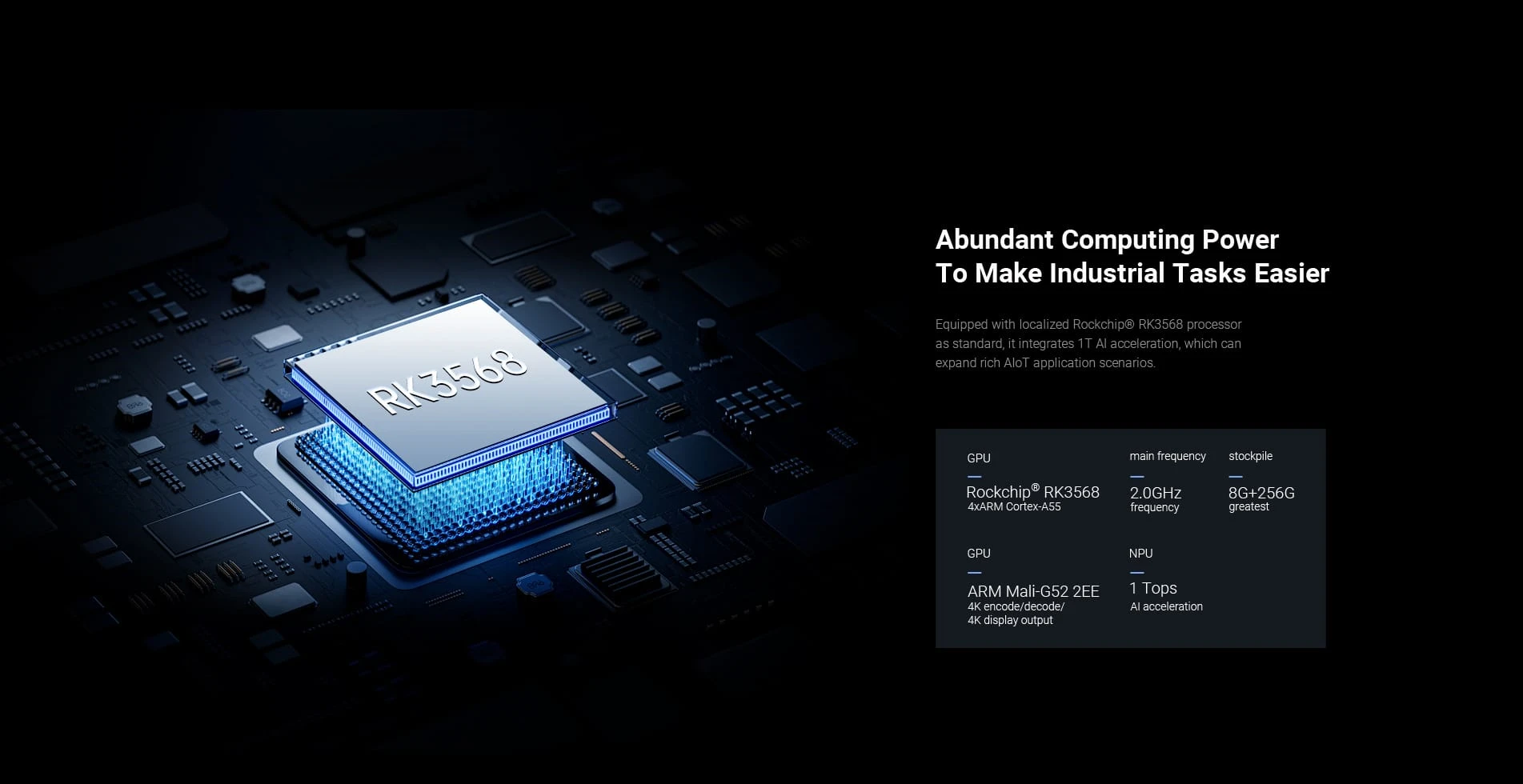

| CPU | RK3568 Quad core 64 bit Cortex-A55 core architecture, with a main frequency of up to 2.0GHz |
| GPU | ARM Mali-G52 2EE |
| Memory/RAM | 2GB LPDDR4 (optional 4GB/8GB, $upports up to 8GB) |
| Storage | 32GB eMMC (optional64GB/128GB/256GB, Supports up to 256GB) |

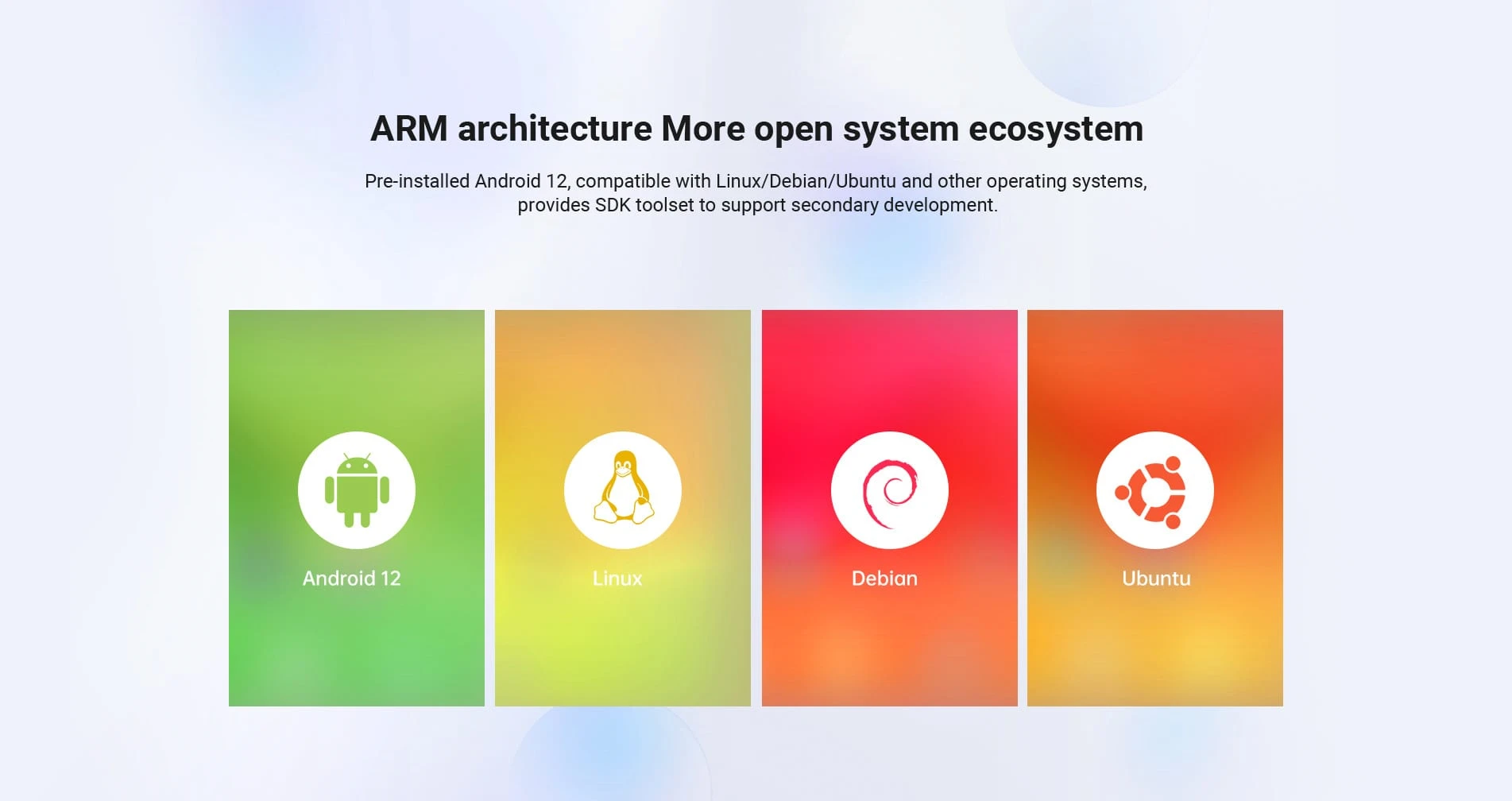

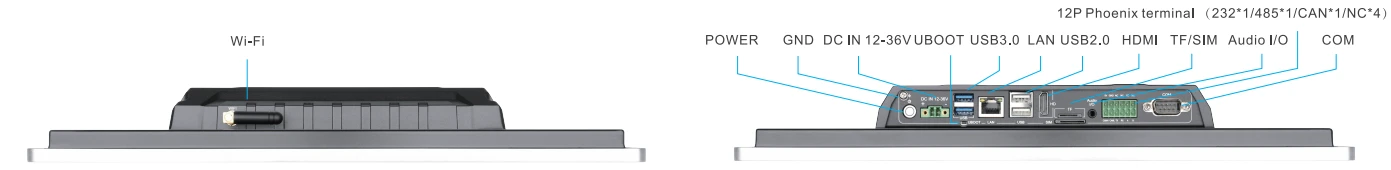

| Operating System | Android12/14, Linux5.10/Ubuntu20.04/Ubuntu22.04/Debian11 |
| 4G | 4G module interface with built-in MINI PCIE |
| Network support | 4G, Ethernet, support for Wi-Fi/Bluetooth, wireless peripheral expansion |
| Interfaces | |

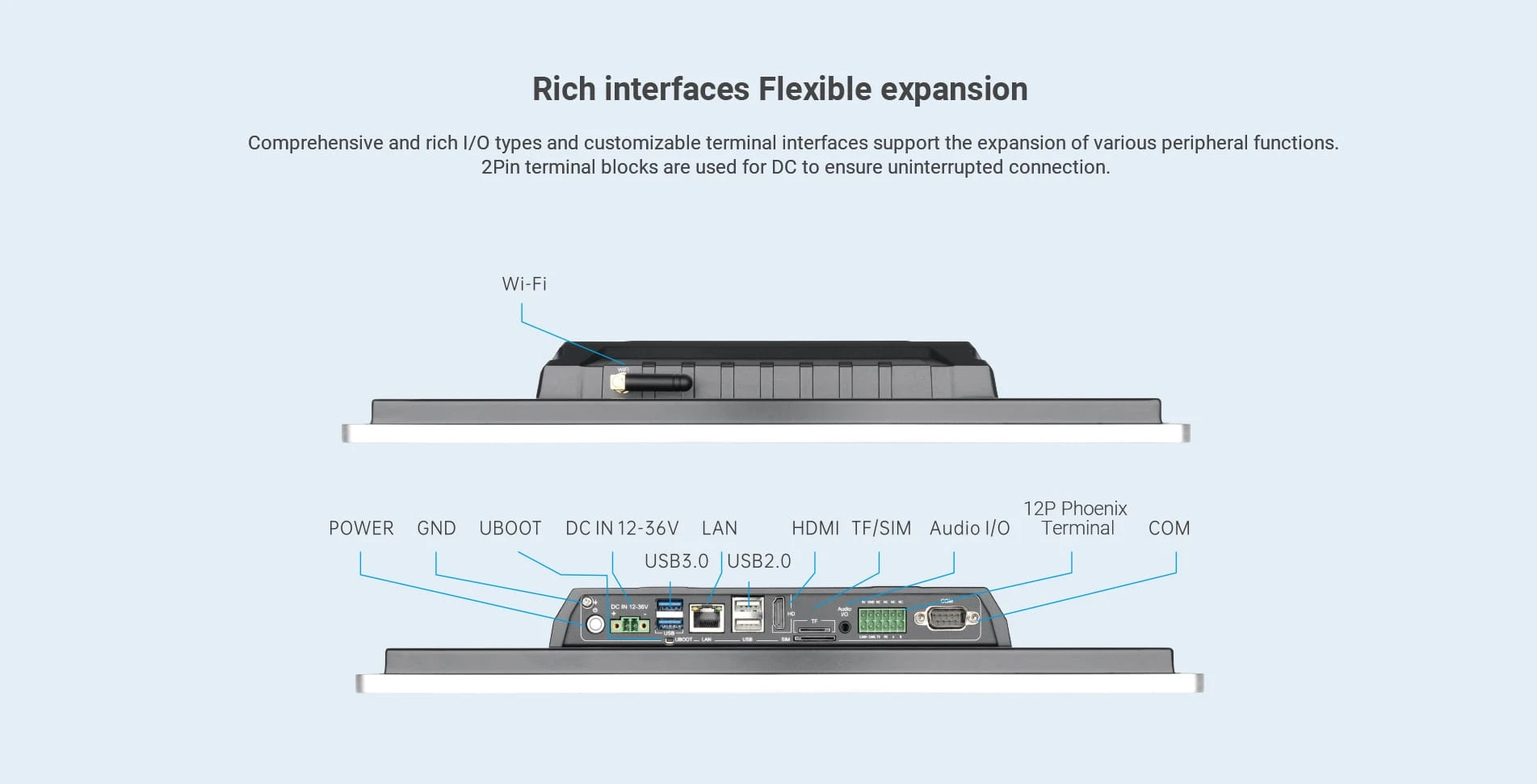

| PowerSW | 1*PowerSW |
| Power interface | 1*3.81-2P Phoenix terminal (optional upgrade DC 2.0*1) |
| Phoenix terminal | 1*12P Phoenix terminal (232*1/485*1/CAN*1/NC*4) |
| HDMI | 1*HDMI output, supporting up to 4K |
| USB | 4*USB (2*USB3.0, 2*USB2.0) |
| Ethernet | 1*LAN,10M/100M/1000M Adaptive Ethernet |
| TF | 1*TF data storage, maximum support 32G |
| SIM | 1*SIM, SIM card interface standard interface supports various formats (depending on 3G / 4G module) |
| AUDIO | 1*Audio l/0, Support audio input and output, Headphone: 3.5mm standard interface |
| Speaker | 2*(8Q2W) |
| UBOOT | 1*UBOOT |
| Serial port | 1*COM (The default is RS232, optional RS485/RS422) |
| Wi-Fi antenna | 1*Wi-Fi antenna |
| Grounding | 1*GND |
| Touch Parameters | |
| Capacitive Touch | Projection capacitive touch,10-point multi touch Touch object: hand or capacitive touch pen Light transmission:>88% Controller: USB( COM customized) |
| Resistive Touch | Resistive touch, Single point Touch object: finger or stylus Light transmission:>78% Controller: USB( COM customized) |
| Non touch | Transmittance:>92% |
| Reliability Parameters | |
| Operating temperature | -10°C~60°C(-20°C~70°C can be customized) |
| Storage temperature | -20°C~70°C |
| Relative humidity | 95% non-Condensing |
| Other Parameters | |
| Power input | 12V-36V power input |
| Power adapter | 24V/1.5A |
| Fuselage Properties | Body material: aluminum alloy, body color: classic black, technical silver |
| Warranty policy | Three years (one year free warranty) |
| Installation method | Support Back hanging, VESA, Wall-mounted, Desktop, Louver installation, Cantilever installation, Boom type installation, etc |
| Model | Product size | ResoIution | Screen Ratio | Brightness | Contrast ratio | Viewing angIe | Manual |
|---|---|---|---|---|---|---|---|
| TPC101-A29 | 10.1″ | 1280*800 | 16:10 | 400cd/m² | 1000:1 | 85/85/85/85 (L/R/U/D) | view |
| TPC104-A29 | 10.4″ | 1024*768 | 4:3 | 400cd/m² | 1000:1 | 80/80/80/80 (L/R/U/D) | view |
| TPC116-A29 | 11.6″ | 1920*1080 | 16:9 | 250~300cd/m² | 1000:1 | 85/85/85/85 (L/R/U/D) | view |
| TPC120-A29 | 12″ | 1024*768 | 4:3 | 500cd/m² | 1000:1 | 85/85/85/85 (L/R/U/D) | view |
| TPC133-A29 | 13.3″ | 1920*1080 | 16:9 | 400cd/m² | 1000:1 | 85/85/85/85 (L/R/U/D) | view |
| TPC150-A29 | 15″ | 1024*768 | 4:3 | 350cd/m² | 1000:1 | 89/89/89/89 (L/R/U/D) | view |
| TPC156-A29 | 15.6″ | 1920*1080 | 16:9 | 300cd/m² | 800:1 | 85/85/85/85 (L/R/U/D) | view |
| TPC170-A29 | 17″ | 1280*1024 | 5:4 | 250~300cd/m² | 1000:1 | 85/85/80/80 (L/R/U/D) | view |
| TPC173-A29 | 17.3″ | 1920*1080 | 16:9 | 400cd/m² | 600:1 | 80/80/60/80 (L/R/U/D) | view |
| TPC185-A29 | 18.5″ | 1920*1080 | 16:9 | 270cd/m² | 1000:1 | 89/89/89/89 (L/R/U/D) | view |
| TPC190-A29 | 19″ | 1280*1024 | 5:4 | 250~300cd/m² | 1000:1 | 85/85/80/80 (L/R/U/D) | view |
| TPC215-A29 | 21.5″ | 1920*1080 | 16:9 | 250~300cd/m² | 1000:1 | 89/89/89/89 (L/R/U/D) | view |
| TPC238-A29 | 23.8″ | 1920*1080 | 16:9 | 250~300cd/m² | 1000:1 | 89/89/89/89 (L/R/U/D) | view |
| TPC270-A29 | 27″ | 1920*1080 | 16:9 | 250~300cd/m² | 1000:1 | 89/89/89/89 (L/R/U/D) | view |
