Z Series Model A Flush-mounted ARM Industrial Panel PC
- 7-32″ screen size available.
- RK3568/RK3588 CPU processor is optional

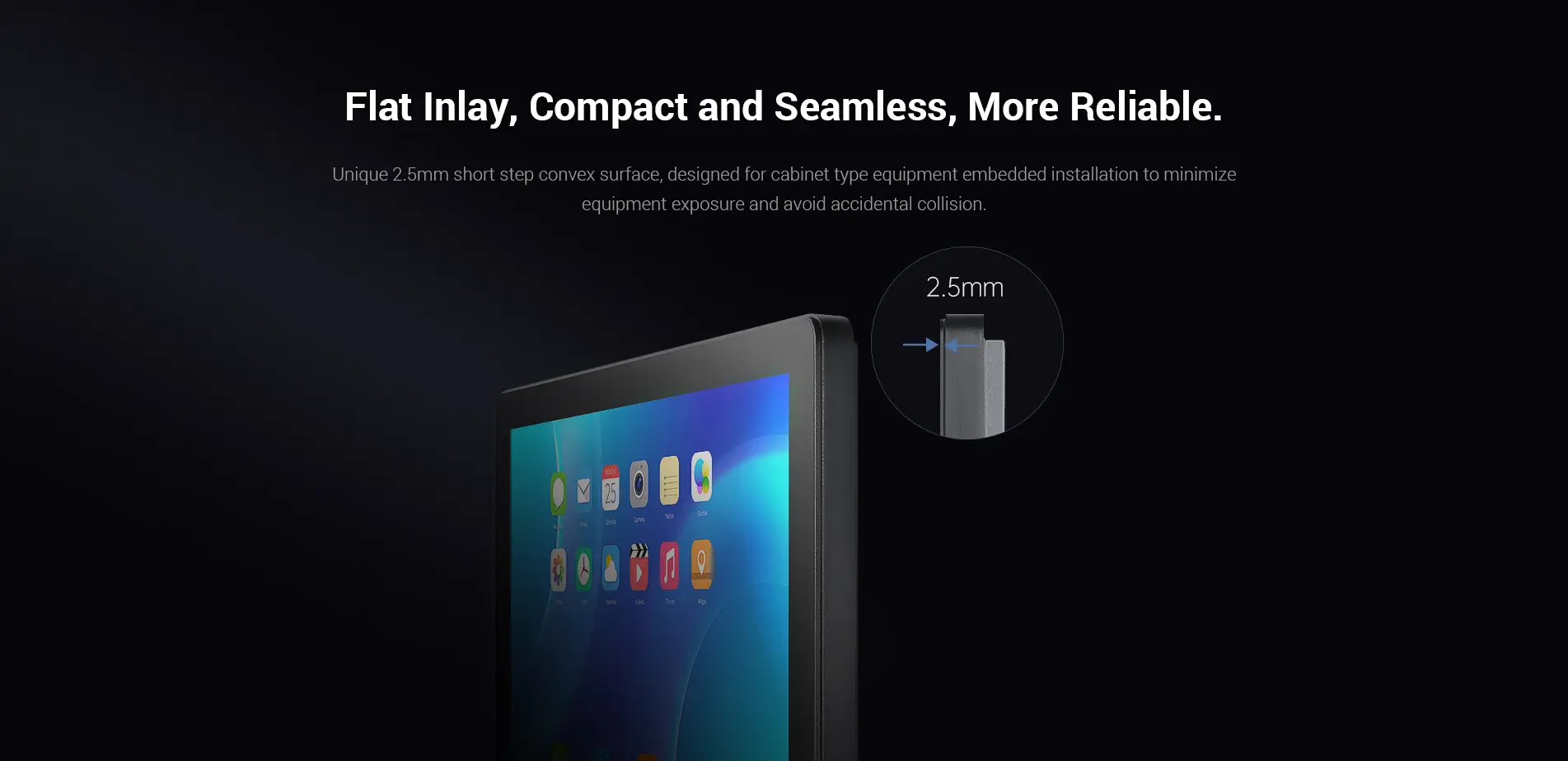

- 2.5mm low-profile, narrow-edge panel design, designed for cabinet-type equipment.
- Independent research and development of ARM architecture industrial motherboard, with a variety of options.

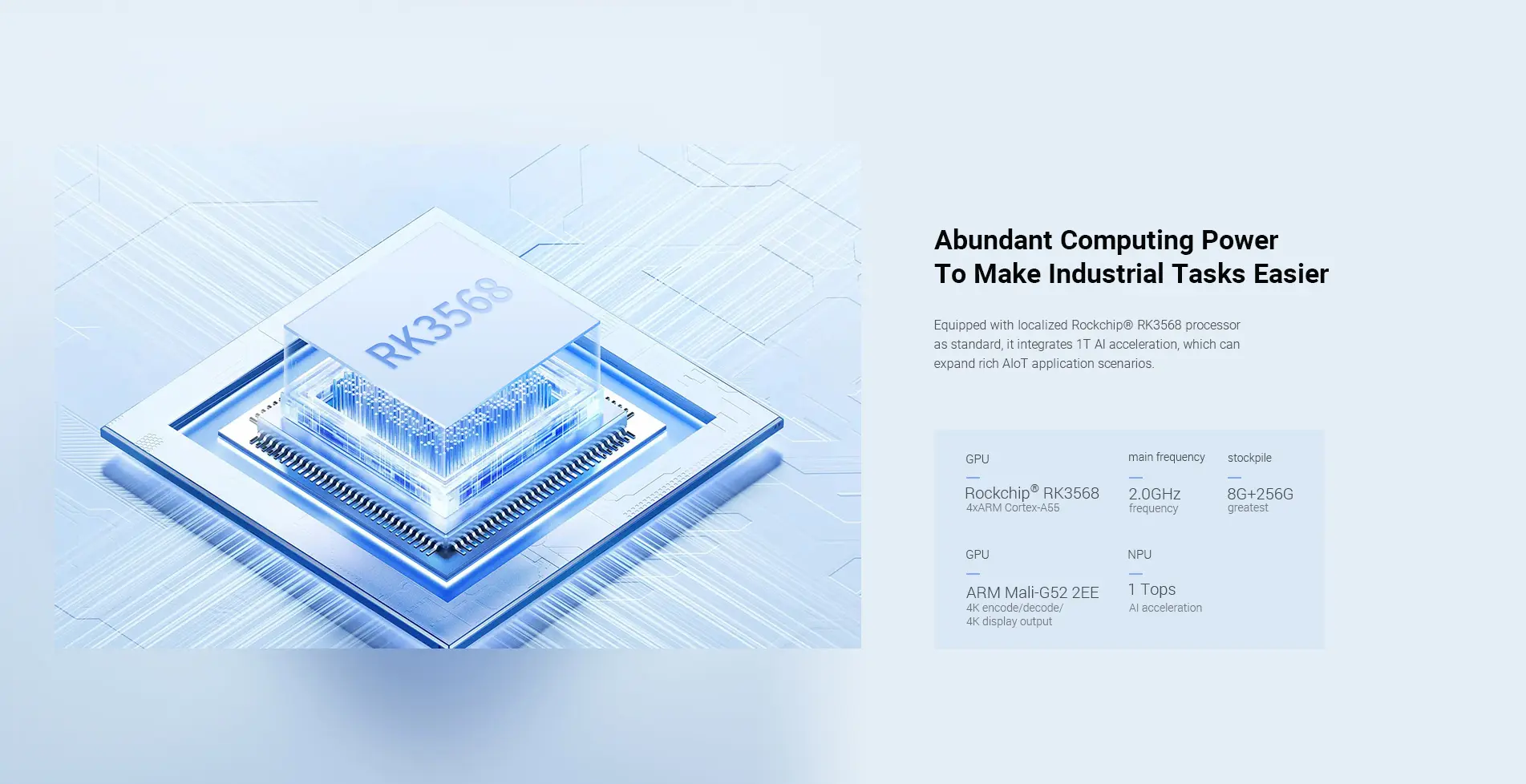

- RK3568 quad core 64 bit 2.0GHz CPU, more powerful Al computing power.

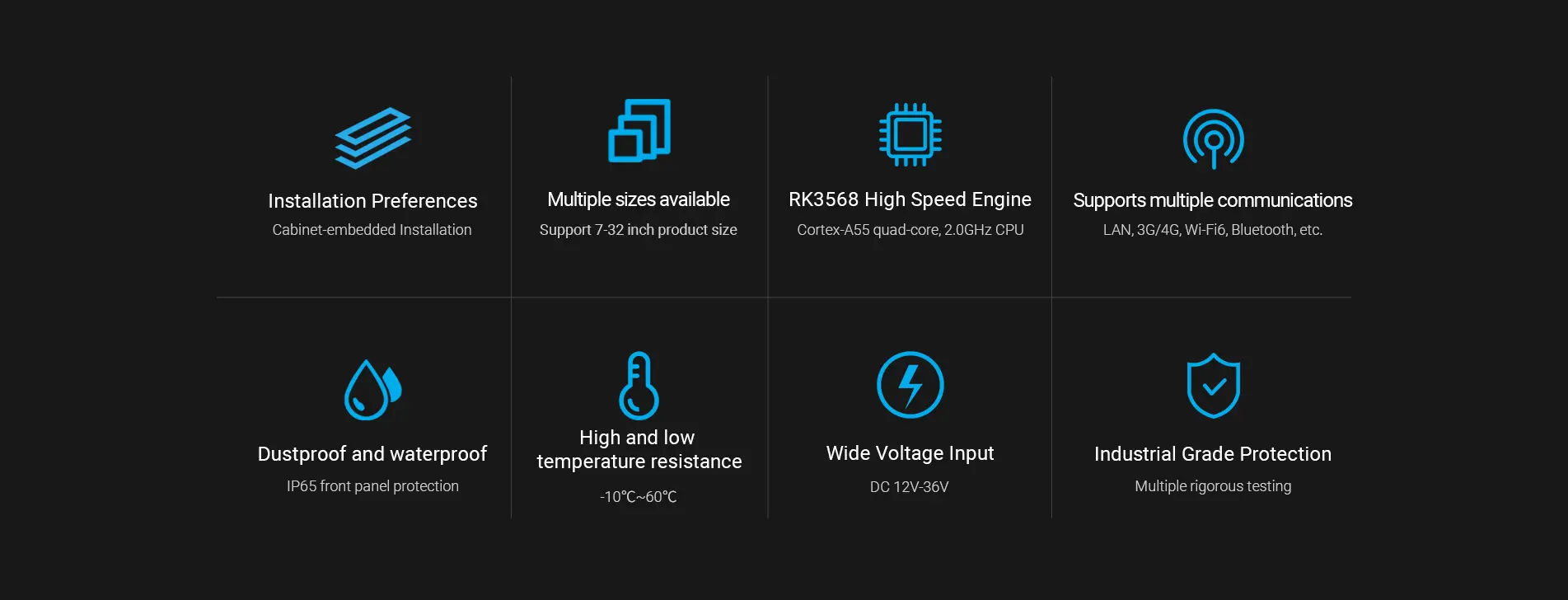

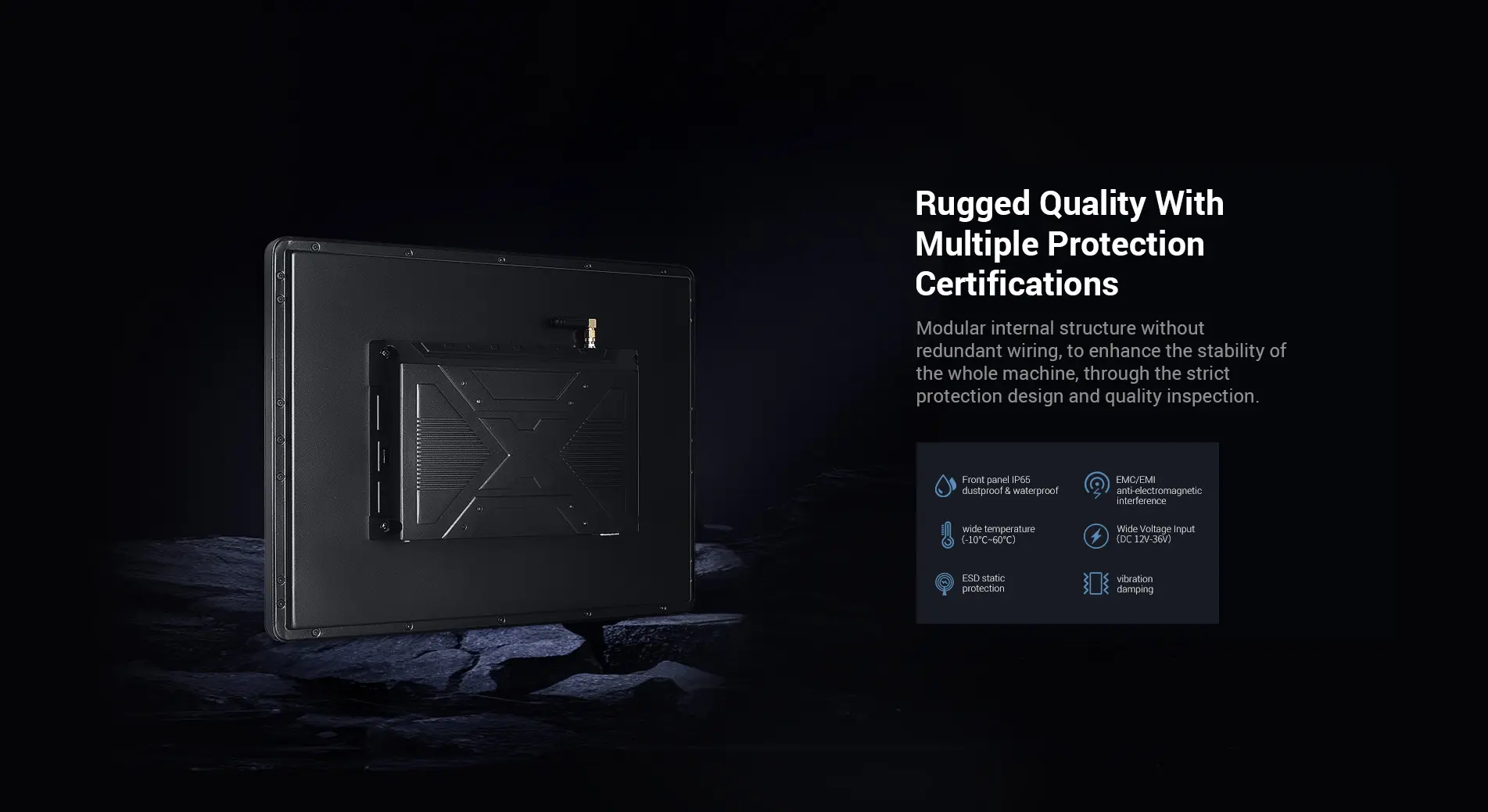

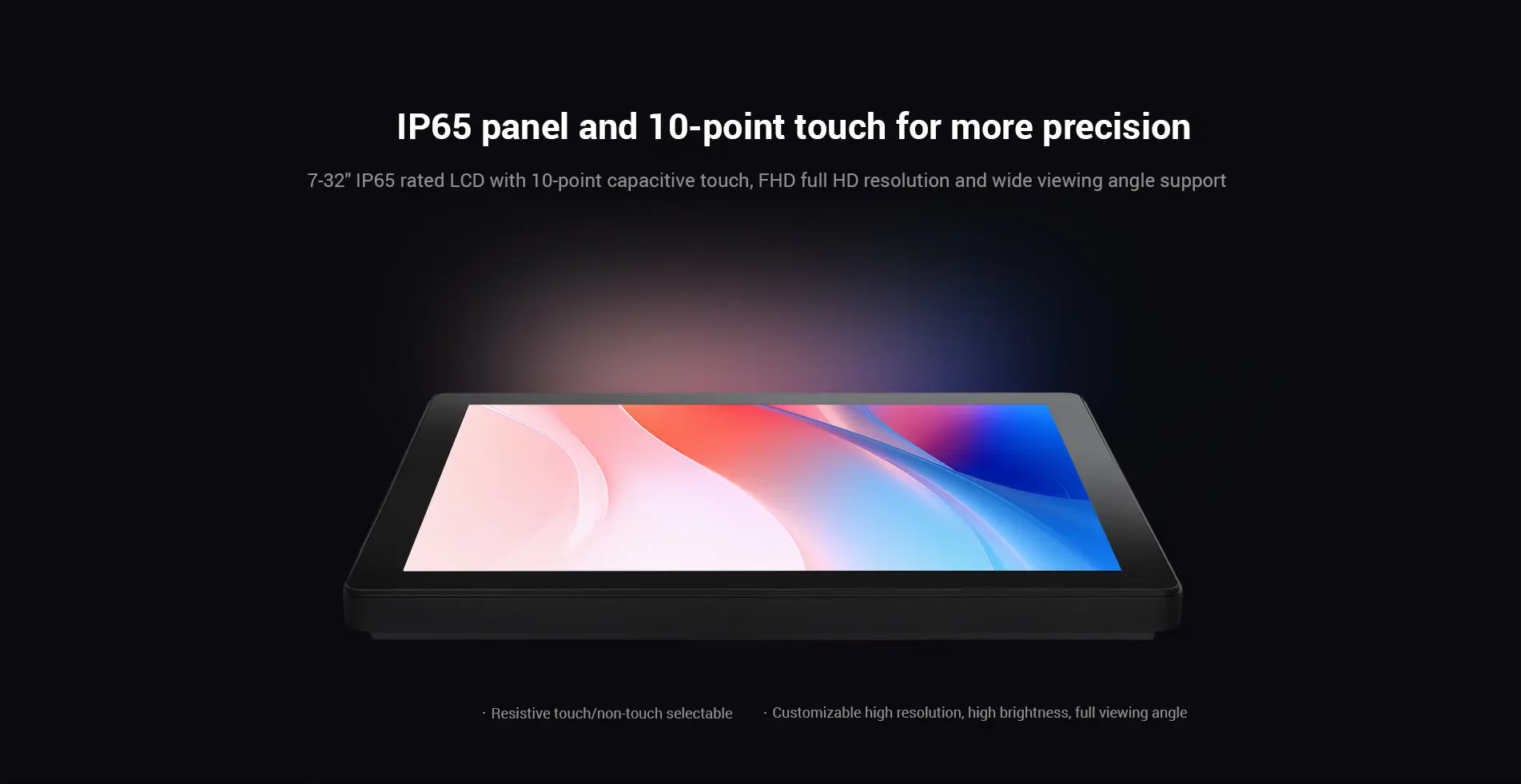

- Industrial-grade protection, adapt to a variety of harsh environments.

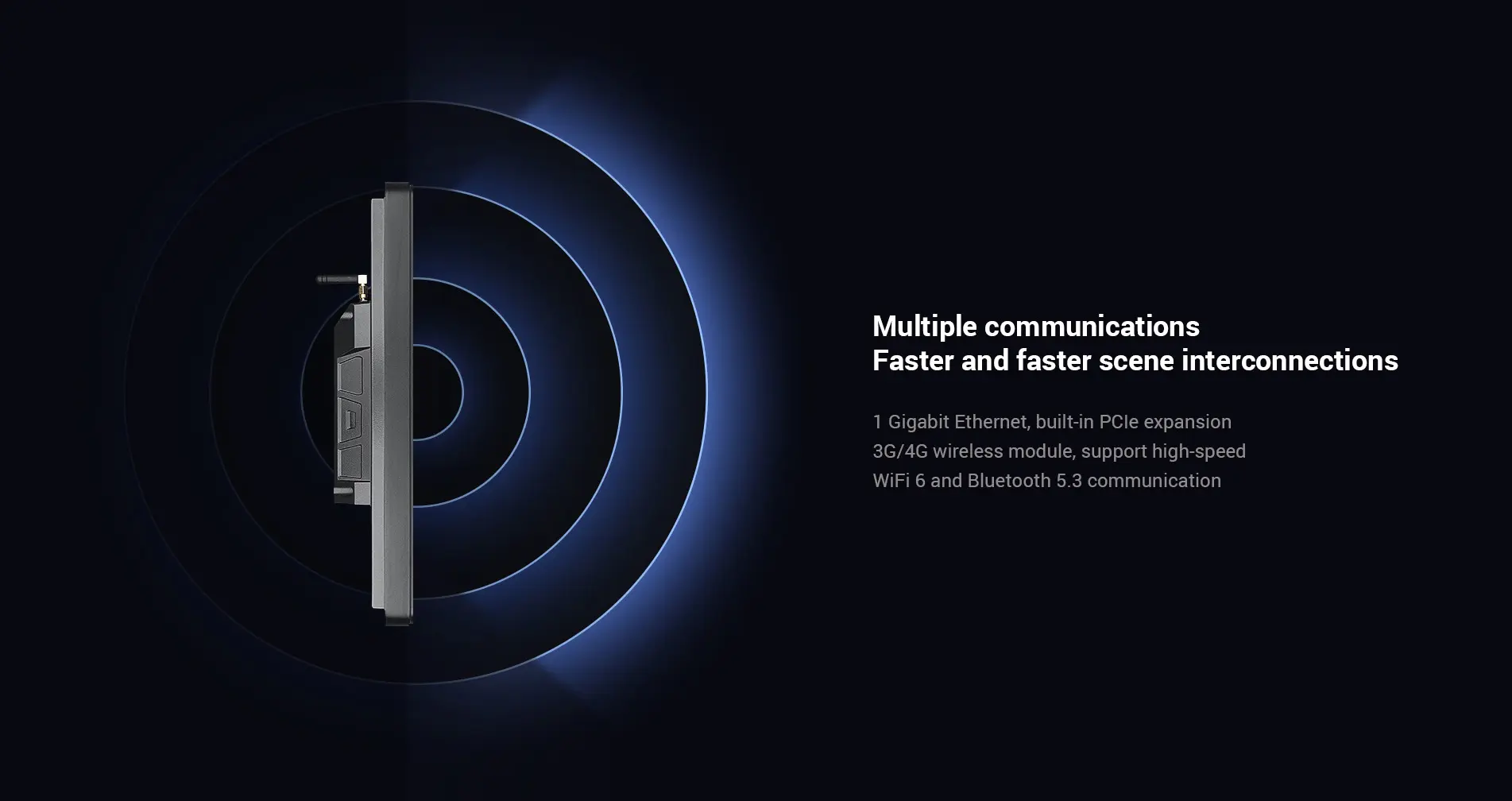

- Superior network communication capability, faster and more stable data transmission
- Provide SDK package, support secondary development and upgrade customization

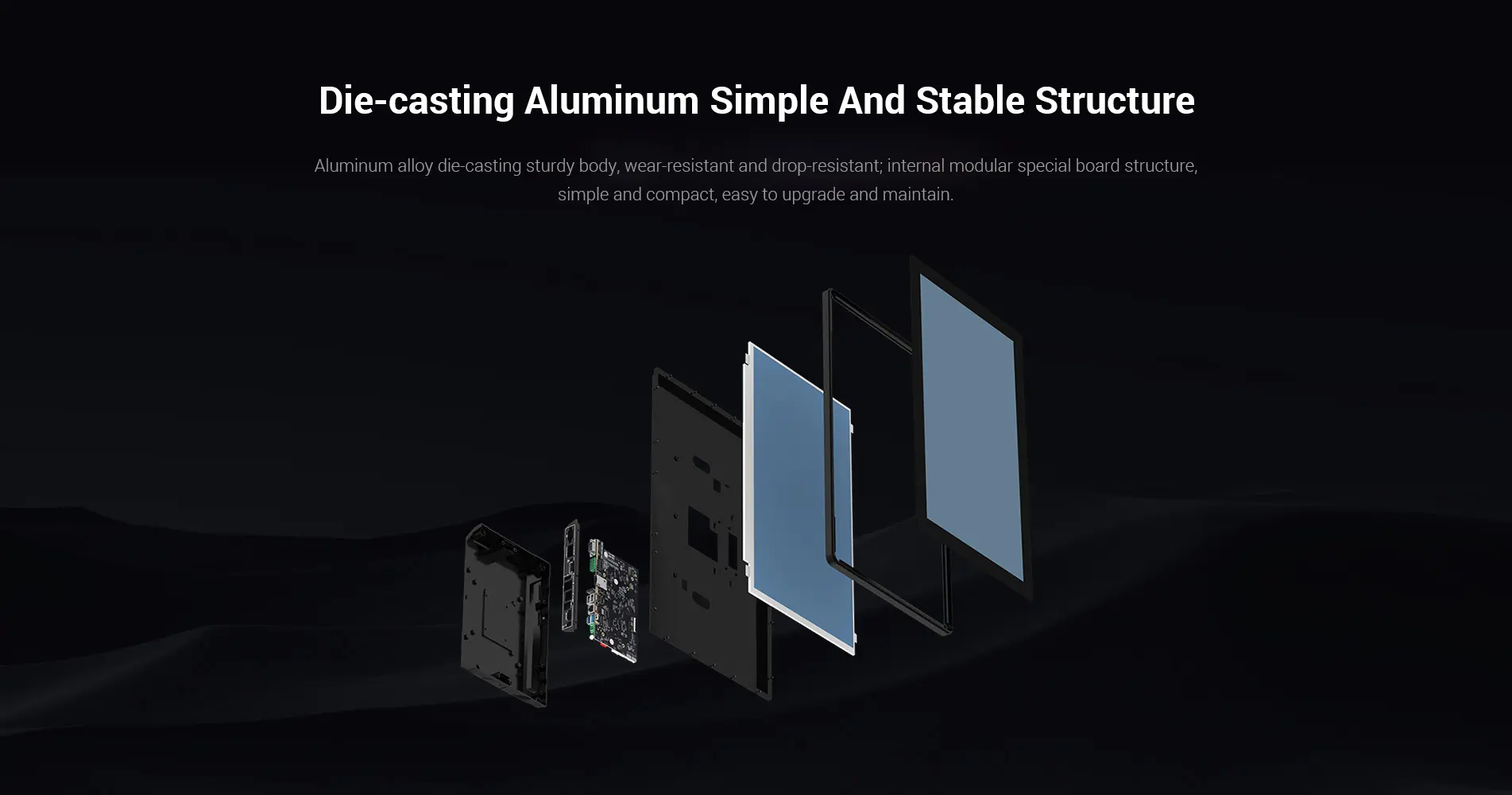

Adopting aluminum alloy panel structure, IP65 waterproof front panel, the whole machine has low power consumption, 2.5mm short-order narrow edge panel design, designed for cabinet equipment, seamless embedded installation. The whole machine adopts self-developed industrial motherboard, built-in independent NPU, with 1TOPS AI arithmetic, supporting lightweight AI application development. Through multiple industrial-grade reliability tests, it provides 24H lasting stability and can comfortably cope with harsh industrial environments.
| Screen Size | 7-27″ | 32″ |
|---|---|---|
| Common Configuration | ||
| CPU | BK3568 Quad core 64 bit Cortex-A55 core architecture, with a main frequency of up to 2.0GHz | |
| GPU | ARM Mali-G52 2EE | |
| Memory/RAM | 2GB LPDDR4(optional 4GB/8GB, Supports up to 8GB) | |
| Storage | 32GB eMMC(optional 64GB/128GB/256GB,Supports up to 256GB) | |

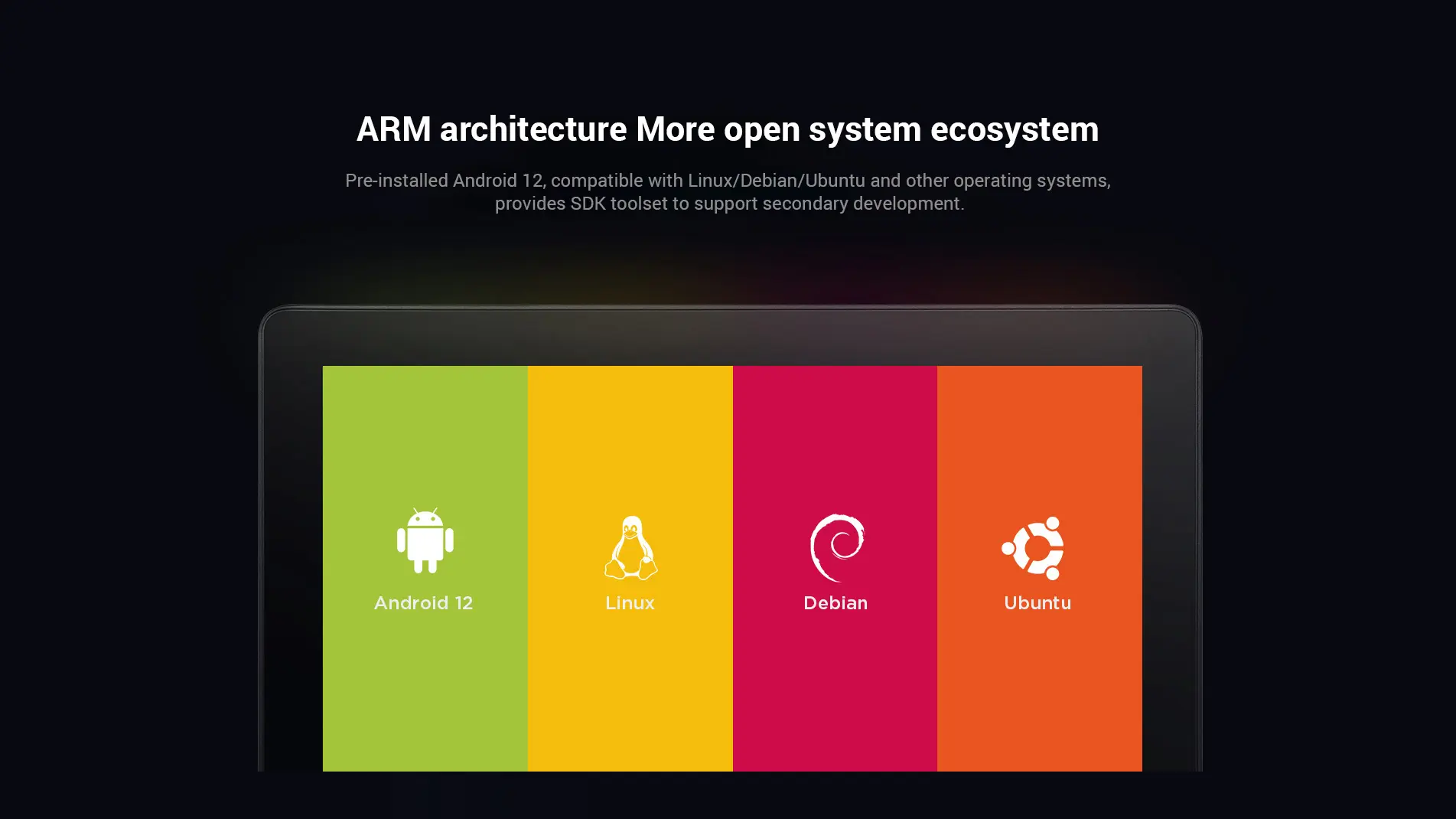

| Operating System | Android12/14, Linux5.10/Ubuntu20.04/Ubuntu22.04/Debian11 | |
| 4G | 4G module interface with built-in MINIPCIE | |
| Network support | 4G, Ethernet, support for Wi-Fi/Bluetooth, wireless peripheral expansion | |

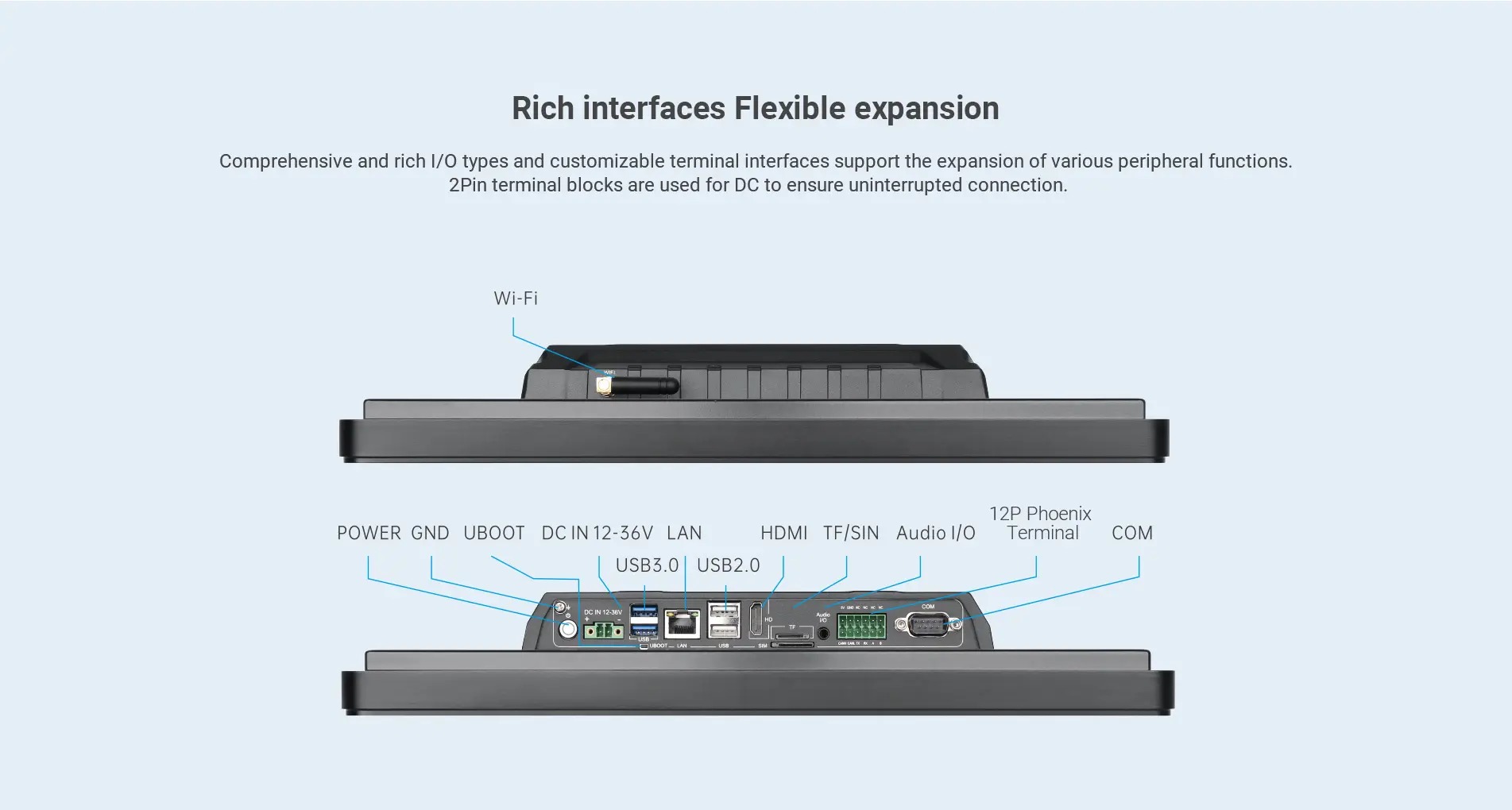

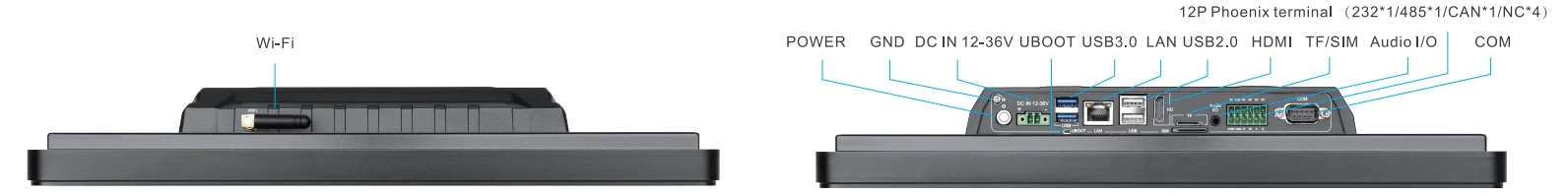

| Interfaces | ||
| PowerSW | 1*PowerSW | |
| Power interface | 1*3.81-2P Phoenix terminal (optional upgrade DC 2.0*1) | AC Pin Header Receptable, AC 100-240V, with Boat Switch |
| Phoenix termina | 1*12P Phoenix terminal(232*1/485*1/CAN*1/NC*4) | |
| HDMI | 1*HDMl output, supporting up to 4K | |
| USB | 4*USB(2*USB3.0,2*USB2.0) | |
| Ethernet | 1*LAN,10M/100M/1000M Adaptive Ethernet | |
| TF | 1*TF data storage, maximum support 32G | |
| SIM | 1*SllM, SlM card interface standard interface supports various formats (depending on 3G / 4G module) | |
| AUDIO | 1*Audio I/0, Support audio input and output, Headphone: 3.5mm standard interface | |
| Speaker | 2*(8Ω2W) | |
| UBOOT | 1*UBOOT | |
| Serial port | 1*COM (The default is RS232,optional RS485/RS422) | |
| Wi-Fi antenna | 1*Wi-Fi antenna | |
| Grounding | 1*GND | |
| Touch Parameters | ||
| Capacitive Touch | Projection capacitive touch,10-point multi touch Touch object: hand or capacitive touch pen Light transmission:>88% Controller: USB( COM customized) | |
| Resistive Touch | Resistive touch: single point Touch object: finger or stylus Light transmission:>78% Controller: USB( COM customized) | |
| Non touch | Transmittance:>92% | |
| Reliability Parameters | ||
| Operating temperature | -10°C~60°C(-20°C~70°C can be customized) | |
| Storage temperature | -20°C~70°C | |
| Relative humidity | 95% non-Condensing | |
| Other Parameters | ||
| Power input | 12V-36V power input | AC 100-240V |
| Power adapter | 24V/1.5A | / |
| Fuselage Properties | Body material: aluminum alloy, body color: classic black, technical silver | |
| Warranty policy | Three years (one year free warranty) | |
| Installation method | Embedded installation of iron sheet, Back-hung embedded installation, etc | |
| Product size | ResoIution | Screen Ratio | Brightness | Contrast ratio | Viewing angIe | Manual |
|---|---|---|---|---|---|---|
| 7″ | 1024*600 | 16:9 | 500cd/m² | 500:1 | 75/75/70/75 (L/R/U/D) | view |
| 8″ | 1024*768 | 4:3 | 250~300cd/m² | 800:1 | 85/85/85/85 (L/R/U/D) | view |
| 10.1″ | 1280*800 | 16:10 | 400cd/m² | 1000:1 | 85/85/85/85 (L/R/U/D) | view |
| 10.4″ | 1024*768 | 4:3 | 400cd/m² | 1000:1 | 80/80/80/80 (L/R/U/D) | view |
| 11.6″ | 1920*1080 | 16:9 | 250~300cd/m² | 1000:1 | 85/85/85/85 (L/R/U/D) | view |
| 12″ | 1024*768 | 4:3 | 500cd/m² | 1000:1 | 85/85/85/85 (L/R/U/D) | view |
| 13.3″ | 1920*1080 | 16:9 | 400cd/m² | 1000:1 | 85/85/85/85 (L/R/U/D) | view |
| 15″ | 1024*768 | 4:3 | 350cd/m² | 1000:1 | 89/89/89/89 (L/R/U/D) | view |
| 15.6″ | 1920*1080 | 16:9 | 300cd/m² | 800:1 | 85/85/85/85 (L/R/U/D) | view |
| 17″ | 1280*1024 | 5:4 | 250~300cd/m² | 1000:1 | 85/85/80/80 (L/R/U/D) | view |
| 17.3″ | 1920*1080 | 16:9 | 400cd/m² | 600:1 | 80/80/60/80 (L/R/U/D) | view |
| 18.5″ | 1920*1080 | 16:9 | 270cd/m² | 1000:1 | 89/89/89/89 (L/R/U/D) | view |
| 19″ | 1280*1024 | 5:4 | 250~300cd/m² | 1000:1 | 85/85/80/80 (L/R/U/D) | view |
| 19.1″ | 1440 * 900 | 16:10 | 300cd/m² | 1000:1 | 80/80/80/80(L/R/U/D) | view |
| 21.5″ | 1920*1080 | 16:9 | 250~300cd/m² | 1000:1 | 89/89/89/89 (L/R/U/D) | view |
| 23.8″ | 1920*1080 | 16:9 | 250~300cd/m² | 1000:1 | 89/89/89/89 (L/R/U/D) | view |
| 27″ | 1920*1080 | 16:9 | 250~300cd/m² | 1000:1 | 89/89/89/89 (L/R/U/D) | view |
| 32″ | 1920*1080 | 16:9 | 250~300cd/m² | 1000:1 | 89/89/89/89 (L/R/U/D) | view |
