5th Gen Series A Industrial Monitor
The 5th Gen A Series industrial monitor is designed with a 7mm reinforced panel, a rugged appearance, and compliance with industrial-grade protection standards. Available in sizes from 10.1 to 21.5 inch. Designed for a variety of heavy-duty and complex environments, widely used in automation fields such as industrial control, military industry, communications, power, and networks.
5th Gen A Series Industrial Monitor
| Product Size | Resolution | Aspect Ratio | Contrast Ratio | Brightness | Quick Inquiry |
|---|---|---|---|---|---|
| 10.1″ | 1280*800 | 16:10 | 1000:1 | 300 cd/m2 | Inquiry Now |
| 10.4″ | 1024*768 | 4:3 | 1000:1 | 400 cd/m2 | Inquiry Now |
| 11.6″ | 1920*1080 | 16:9 | 1000:1 | 300 cd/m2 | Inquiry Now |
| 12.0″ | 1024*768 | 4:3 | 1000:1 | 500 cd/m2 | Inquiry Now |
| 15.0″ | 1024*768 | 4:3 | 1000:1 | 300 cd/m2 | Inquiry Now |
| 15.6″ | 1920*1080 | 16:9 | 800:1 | 300 cd/m2 | Inquiry Now |
| 17.0″ | 1280*1024 | 5:4 | 1000:1 | 300 cd/m2 | Inquiry Now |
| 17.3″ | 1920*1080 | 16:9 | 600:1 | 300 cd/m2 | Inquiry Now |
| 19.0″ | 1280*1024 | 5:4 | 1000:1 | 300 cd/m2 | Inquiry Now |
| 19.1″ | 1440*900 | 16:10 | 1000:1 | 300 cd/m2 | Inquiry Now |
| 21.5″ | 1920*1080 | 16:9 | 1000:1 | 300 cd/m2 | Inquiry Now |
| Product Features |
|---|

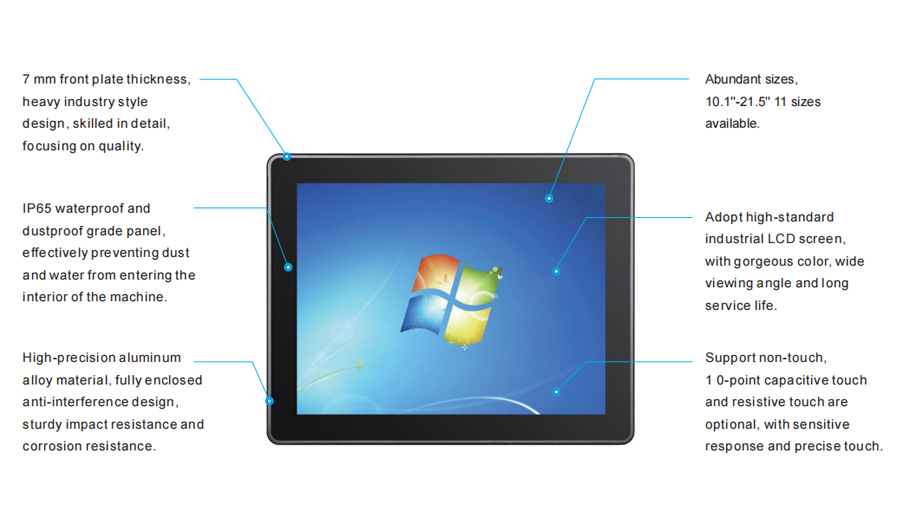

Ultra-thin Frame Design

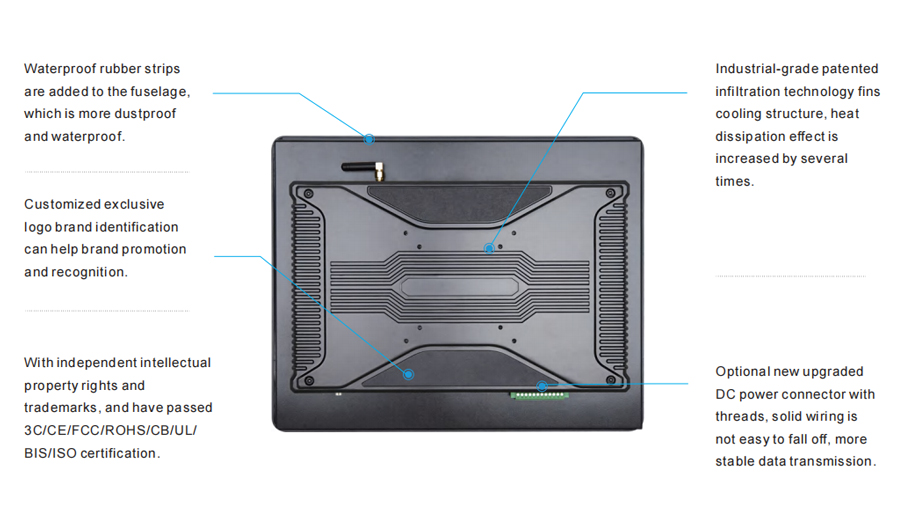

Industrial Technology Design
| Product Parameters | ||
|---|---|---|
| Hardware Parameters | CPU | RTD2513 |
| Material | Aluminum alloy | |
| Menu Language | Multilingual (default: English) | |
| Key Function | AUTO/MENU/POWER/LEFT/RIGHT | |
| Color | black,Sliver optional | |
| Video Input | PC-RGB: Format Up to 1920*1080@60HZ; PC-RGB: Color 16bit, 32bit | |
| Screen Parameters | Panel Type | Industrial control screen |
| Viewing Angle | Wide view / full view | |
| Backlight Type | LED, use time >=500000H | |
| Brightness | 300cd/m2 (can be customized =< 1500cd/m2) | |
| Display Color | 16.7M | |
| Contrast Ratio | 1000:1 |
| Touch Parameters | Projection capactivite touch Touch Point: 10-point Light Transmittance: >=88% Input Mode: handwriting or capactivite pen Standard Protocol:USB | Resistive touch 4-5wire/5 Wire Touch Point: single point Light Transmittance: >=78% Input Mode: Fingertip or stylus Standard Protocol:USB | Non-touch Light Transmittance: >=92% | ||
| Interface Parameters | DC Port | 1*DC2.1(DC 12-36V) |
| Grounding Column | Support (1*GND) | |
| Industrial Terminals | 1*Industrial terminals, Support 12V-36V wide voltage power supply | |
| HDMI | High-definition audio digital signal transmission, support HDMI data input. | |
| VGA | Analog signal transmission, support VGA best resolution. | |
| DVI | Digital signal transmission, support the best resolution of DVI digital signal. | |
| Touch Interface | RJ45 interface standard(defined as USB), compatible to capacitive/resistive touch | |
| Audio interface | 1*Audio I/O, Support audio input and output |
| Environment Parameters | Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C | |
| Relative Humidity | Humidity: 95% Non-Condensing | |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis | |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Other Parameters | Power input | DC 12V~36V |
| Static power | 18W | |
| Installation Method | Supports snap-embedded,wall edbedded,wall mounted,desktop,louvered,cantilever-mounted,boom-mounted,etc. | |
| Warranty Policy | Three years ( one year free warranty ) |
