Touchthink Android RK3399 Industial Motherboard

JWS3399-F


Technical Specifications
JWS3399-F
JWS3399-F
JWS3399-F
JWS3399-F
JWS3399-F

❮
❯




  • Extremely compact, 121mm*81mm, suitable for small size smart display terminal equipment
  • Support LVDS/MIPI/EDP three kinds of point screen interface, maximum support 4K 3840×2160 decoding and EDP 4K 3840×2160 point screen
  • Rich expansion interfaces, 6 USB interfaces (5-way PH2.0 USB HOST (default three-way), 1-way USB OTG), 3-way TTL serial port, GPIO/ADC interface, can meet the requirements of the market for a variety of peripherals
  • Integrated MIPI camera interface, supports up to 1300W HD MIPI camera
  • Support Android system customization, provide system call interface API reference code, can provide face recognition API interface, perfect support for the customer’s upper application APP development
  • Perfectly support infrared, optical, capacitive, resistive, touch film and other mainstream touch screen, support the HID configuration of the driverless touch screen, no need for debugging

Quick Inquiry
Touchthink ARM Based Architecture Android Industial Motherboard:
JWS3399-F








    Required fields are marked *, We’ll respond within 12 hours.

    Product View

    JWS3399-F adopts RK3399 dual Cortex-A72 large core + quad Cortex-A53 small core 64-bit ultra- powerful CPU, main frequency 1.8GHz, Mali-T860 GPU, support 4K, H.265 hard decoding, Android 7.1 system. The board contains dual LVDS, eDP, HDMI display output interfaces, built-in universal backlight board interface, and screen voltage jumper, compatible with more kinds of displays, stronger performance, faster speed, and richer interfaces, it is your best choice for human-computer interaction,
    intelligent terminals, and industrial control projects.


    touchthink 5th gen a series monitor
    touchthink 5th gen a series monitor
    touchthink 5th gen a series monitor
    touchthink 5th gen a series monitor

    General Info
    ManufacturerTouthThink
    Motherboard ModelJWS3399-F
    Product Manual pdf iconJWS3399-F.pdf
    Hardware Configuration
    CPURockchip RK3399 64-bit Dual Cortex-A72 Quad Cortex-A53 CPU
    MemoryStandard 4GB LPDDR4
    Storage32GB EMMC (8GB/16GB/64GB optional)
    ROM2KB EEPROM (not included by default, optional sticker)
    ResolutionMaximum 3840*2160
    Operating systemAndroid 7.1/10.0
    Physical Characteristics
    Overall Dimensions W121.8 * H81.6 * D13.53 mm
    tpc101 M5 dimensions
    Interface Parameters
    Serial Port TTL*3
    USB USB OTG*1,USB *3 (five interface optional)
    MIPI MIPI*1, supports 1080P@60Hz
    Wifi Built-in dual frequency WIFI
    Bluetooth BT4.0
    Ethernet10M/100M adapt Ethernet
    LVDS LVDS*1, support single/dual channel 50/60Hz LCD
    eDP Maximum definition is 4K 3840*2160
    4GUnlocked,Support voice call(base on 4G module,Optional)
    AV OutputSupport left and right channel output, built-in dual 4R/2.5W，8Ω
    /1.5W amplifier
    OS upgradeSupport upgrade through USB

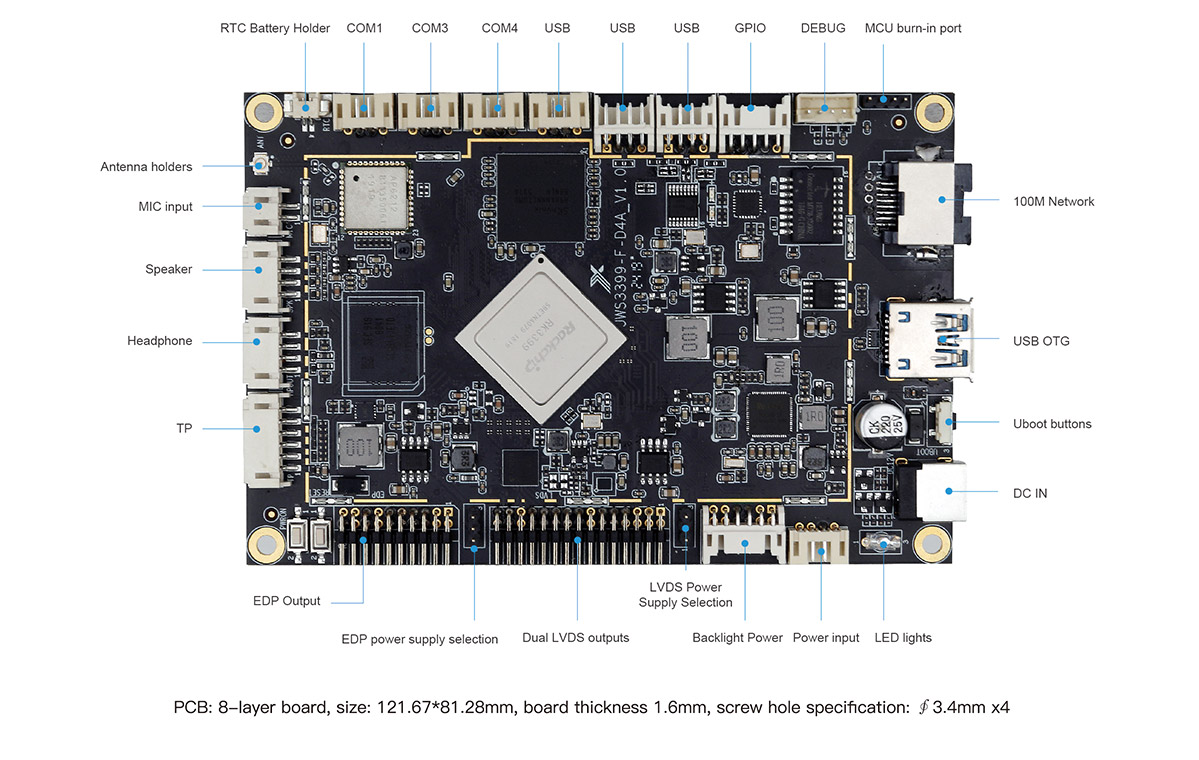

    JWS3399-F interface
    Other Items
    Warranty3-Year
    After-sales ServiceCall Center and on-line Technical Support
    Place of OriginGuangdong, China
    ExpressUPS/DHL/Fedex/EMS,etc
    Delivery Time1-3 Working Days
    Packaging DetailsPacked in Standard EXPORT Cartons
    Delivery PortShenzhen/Hongkong
    CustomizationLogo,Packaging,Graphic
