TouchThink Face Recognition A Series

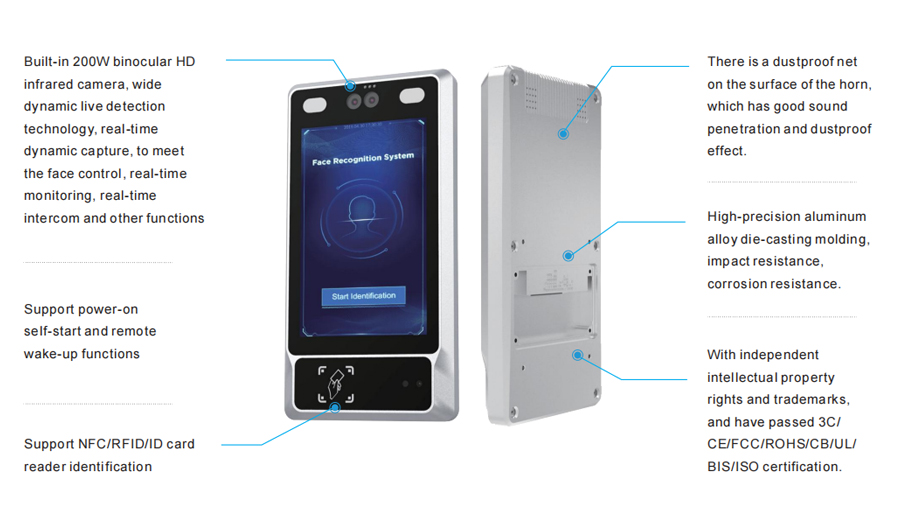

Face Recognition A Series with an 8″ screen size, and a built-in 200W HD camera, for wide dynamic liveness detection. A binocular high-definition infrared camera enables accurate identification even at night. Ideal for access control, attendance tracking, security monitoring, and personalized user experiences.
TouchThink Face Recognition A Series
| Product Size | Resolution | Aspect Ratio | Contrast Ratio | Brightness | Quick Inquiry |
|---|---|---|---|---|---|
| 8.0″ | 800×1080 | 16:10 | 800:1 | 300 cd/m2 | Inquiry Now |
| Product Features |
|---|

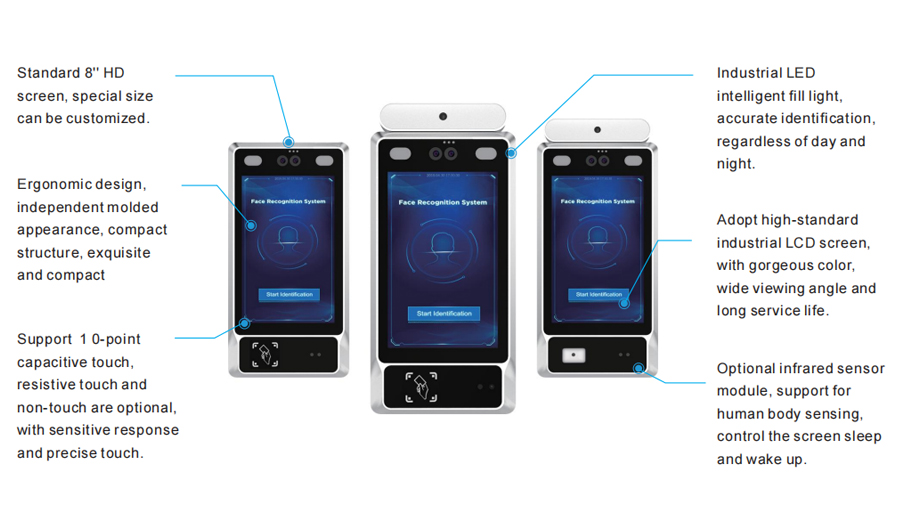

Stylish And Compact Desgin
Industrial Techology Design
| Product Parameters | ||
|---|---|---|
| Hardware Parameters | CPU | RK3288, Cortex-A17 quad-core, 1.8GHz |
| Memory | 2GB DDR3 (Optional: 4GB/8GB) | |
| Storage | 16GB eMMC (Optional: 32GB/64GB) | |
| OS | Android 7.1/10.0 | |
| GPU | Mali-T764 | |
| Network Support | 4G, Ethernet, WiFi/Bluetooth support, wireless peripheral expansion | |
| Screen Parameters | Panel Type | Industrial control screen |
| Viewing Angle | 85/85/85/85/85 (L/R/U/D) Full View | |
| Backlight Type | LED, use time >=50000H | |
| Brightness | Brightness: 500cd/m2(can be customized =< 1500cd/m2) | |
| Display Color | 16.7M | |
| Contrast Ratio | 1000:1 |
| Touch Parameters | Projection capactivite touch Touch Point: 10-point Light Transmittance: >=88% Input Mode: handwriting or capactivite pen Standard Protocol:USB | Resistive touch 4-5wire/5 Wire Touch Point: single point Light Transmittance: >=78% Input Mode: Fingertip or stylus Standard Protocol:USB | Non-touch Light Transmittance: >=92% | ||
| Interface Parameters | DC Port | 1*DC 2.1,Support 12V voltage power supply |
| USB-OTG | 1*typeA, external USB flash disk and computer can be connected | |
| Wigan output | 1*Wigan output [supporting 26-bit and 34-bit Wigan] | |
| RJ45 Ethernet | 1*10M/100M Ethernet | |
| Relay terminal | 1*Relay terminal,can communicate with various access controllers to control the opening/closing of gate or access control | |
| RS485 | 1*RS485 [half duplex communication, transmission distance greater than 100 meters] |
| Environment Parameters | Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C | |
| Relative Humidity | Humidity: 95% Non-Condensing | |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis | |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Other Parameters | Power input | DC 12V~36V |
| Static power | 18W | |
| Body Color | Sliver, Black Optional | |
| Warranty Policy | Three years ( one year free warranty ) |
