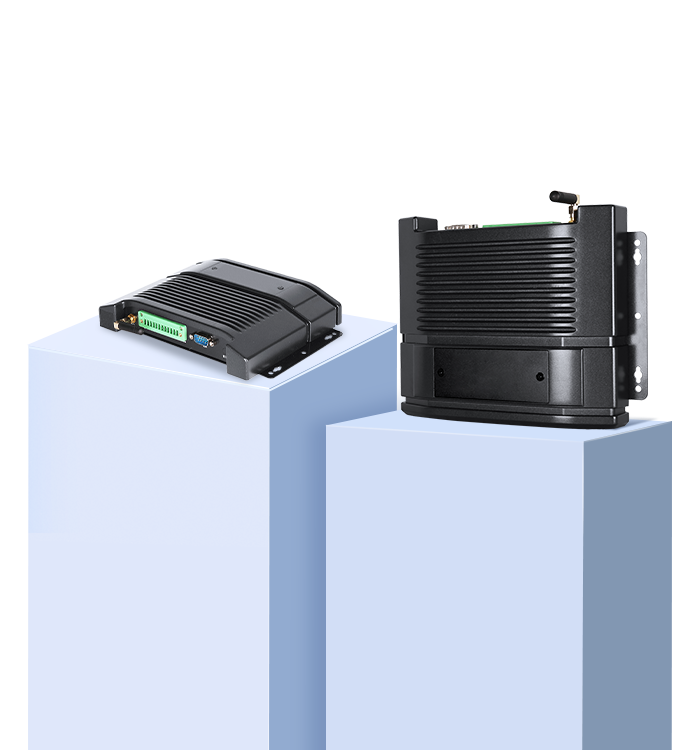

TouchThink A Series Mini PC
Industrial computer A Series running on the ARM architecture is a compact computing solution designed specifically for industrial applications that leverage ARM’s versatility and user-friendly interface. Offers a small form factor combined with the robustness required to withstand harsh industrial environments.
TouchThink Industrial Computer A Series
| Product Size | Weights | Body Colour | Quick Inquiry |
|---|---|---|---|
| 199.5*213.1*58.3 (L*W*H) | 1.9KG | Gun black | Inquiry Now |
| Product Features |
|---|
Ultra-thin Frame Design
Industrial Technology Design
| Product Parameters | ||
|---|---|---|
| Hardware Parameters | CPU: RK-3568 Quad-core 64-bit Cortex-A55 | Android 12.0, Linux5.10, Ubuntu/Debian |
| Memory | 2GB/4GB/8GB/16GB/32GB Optioal | |
| Storage | 8GB/16GB/32GB/64GB/128GB/256GB eMMC Optional | |
| GPU | ARM Mali G610 MP4 | |
| Decoding Resolution | HDMI Support up to 4K 3840*2160 | |
| Network Support | 4G, Ethernet, wireless peripheral expansion,etc. | |
| Power On | Support | |
| Remote Wakeup | Support | |
| HD Support | Support | |
| Interface Parameters | DC Port | 1*DC55*21 with thread, can support 12-36V wide voltage power supply |
| HDMI | 1*HDMI, Supporting HDMI data output, up to 4K | |
| SIM | 1*SIM, Supporting various formats (Depending on 3G/4G module) | |
| Network interface | 1*LAN, 10M/100M/1000M adaptive Ethernet | |
| USB | 2*USB 3.0 | |
| Industrial terminals | 1*12P Phoenix terminal (power supply/232*1/485*1/CAN*1/GPIO*3) |
| Environment Parameters | Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C | |
| Relative Humidity | Humidity: 95% Non-Condensing | |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis | |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Other Parameters | Power input | DC 12V-36V |
| Sizes | 199.5*213.1*58.3 (L*W*H) | |
| Weights | 1.9KG | |
| Static power | 15W | |
| Body Color | Gun black | |
| Installation Method | Supports desktop and rack mounting | |
| Warranty Policy | Three years ( one year free warranty ) |
