Vehicle Mounted S Series Monitor
Vehicle Mounted S Series Monitor is built to withstand the rigors of vehicle environments, including vibrations, shocks, temperature extremes, and exposure to dust and moisture. Ruggedized enclosures ensure reliable operation even in harsh conditions. Feature high brightness and high-contrast screens to ensure optimal visibility under varying lighting conditions.
TouchThink S Series Vehicle Mounted Monitor
| Product Size | Resolution | Aspect Ratio | Contrast Ratio | Brightness | Quick Inquiry |
|---|---|---|---|---|---|
| 10.1″ | 1280*800 | 16:10 | 1000:1 | 300 cd/m2 | Inquiry Now |
| Product Features |
|---|
Technological Aesthetics Design

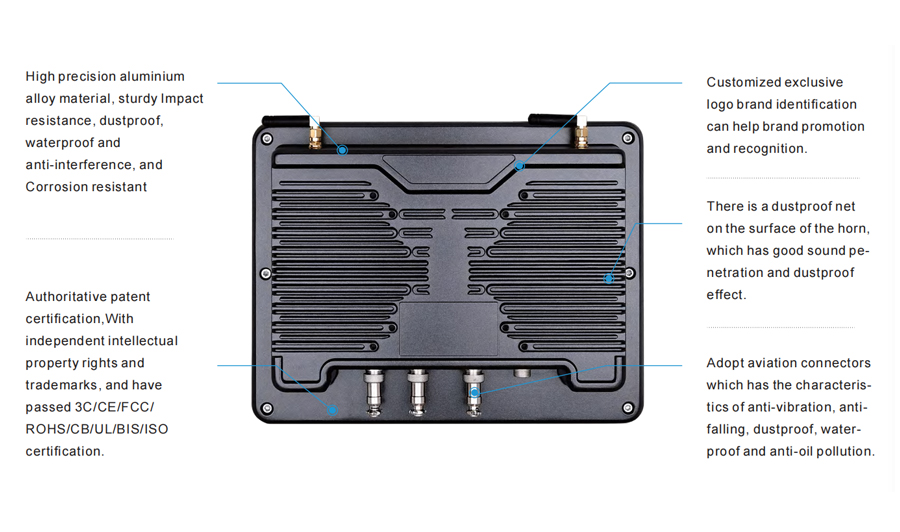

Upgraded Body Design
| Product Parameters | ||
|---|---|---|
| Hardware Parameters | CPU | RTD2513/RTD2556 |
| Material | Aluminum alloy | |
| Menu Language | Multilingual (default: English) | |
| Key Function | AUTO/MENU/POWER/LEFT/RIGHT | |
| Video Input | PC-RGB:Format Up to 1920*1080@60HZ; PC-RGB:Color 16bit,24bit,32bit | |
| Screen Parameters | Panel Type | Industrial control screen |
| Viewing Angle | Wide view / full view | |
| Backlight Type | LED, use time >=50000H | |
| Brightness | Brightness: 300cd/m2(can be customized =< 1500cd/m2) | |
| Display Color | 16.7M | |
| Contrast Ratio | 1000:1 |
| Touch Parameters | Projection capactivite touch Touch Point: 10-point Light Transmittance: >=88% Input Mode: handwriting or capactivite pen Standard Protocol:USB | Resistive touch 4-5wire/5 Wire Touch Point: single point Light Transmittance: >=78% Input Mode: Fingertip or stylus Standard Protocol:USB | Non-touch Light Transmittance: >=92% | ||
| Environment Parameters | Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C | |
| Relative Humidity | Humidity: 95% Non-Condensing | |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis | |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Other Parameters | Power input | DC 12V~36V |
| Static power | 18W | |
| Body Color | Black, Sliver Optional | |
| Installation Method | Supports snap-embedded,wall edbedded,wall mounted,desktop,louvered,cantilever-mounted,boom-mounted,etc. | |
| Warranty Policy | Three years ( one year free warranty ) |
