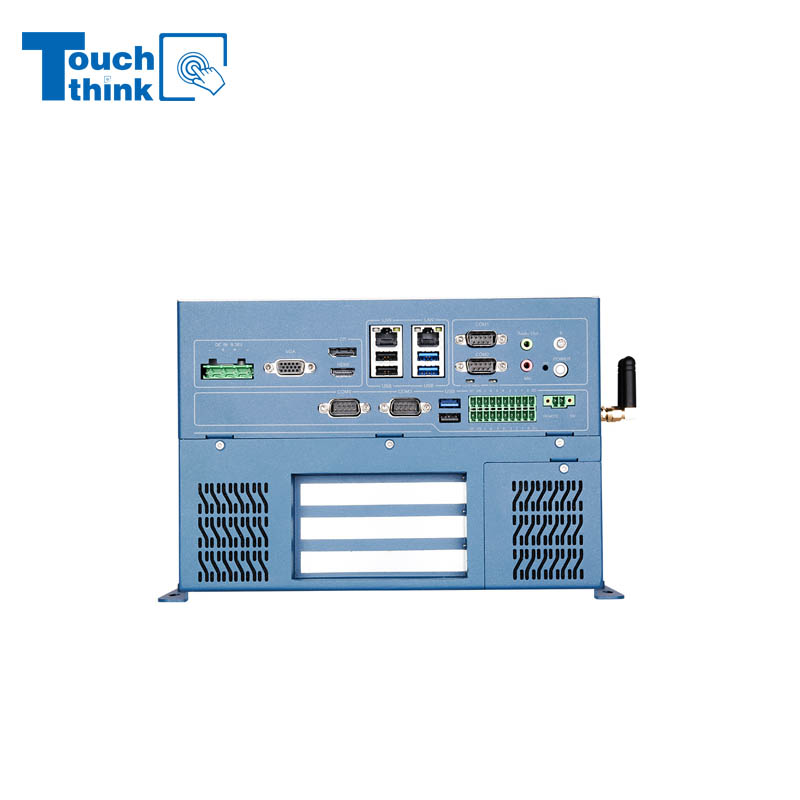

Industrial Computer Z Series IPC-A Dual-slots Version
It is a high-performance expandable industrial computer designed for the peripheral applications around the industrial Internet ofThings. It has two PCIe/PCI slots for enhanced expansion, it built with the H610 chipset, comes with an Intel® 12th generationAlder lake-S series processor, dual-channel DDR5 and rich I/O ports. With 9V-36V wide voltage input, excellent heat dissipationstructure and enhanced mechanical design, it ensures reliability and stability in harsh environments.
![](https://www.touchthink.net/wp-content/uploads/2024/09/Industrial-Computer-Z-Series-Dual-Slots-Version.png")
Modular Embedded Computer with Intel® Core 12/13/14th-Gen Processor 2.5GbE LAN
Size: 250mm x 294mm x 182.05mm
- Discrete CPU, supports Intel® 12th/13th/14th generation Core™ i3/i5/i7/i9 processors
- Rich I/O interfaces, USB*6, COM*4 and 16bit isolated GPIOs
- Powerful scalability, 1PCIEX16+132BIT PCI dual slots, compatible with graphics cards / data acquisition cards /Motion control cards and other types of expansion cards.
- Modularized industrial design, more convenient for expansion and upgrading.
- 8K+4K three-screen simultaneous display/disparate display, 1DP+1HDMI and 1*VGA
| Product Model | Dual-Slot Version | TPC06-WIPC |
| System Processor | CPU | Intel® Alder lake-S 12th Gen Core™ i9/i7/i5/i3/Pentium/Celeron LGA1700 CPU |
| CPU Model: I3-12100, I5-12400, I7-12700, I9-12900 (Upgradeable to 13th/14th generation discrete CPU) | ||
| Memory | Standard 16GB; Support 2*262-Pin SODIMM, dual-channel DDR5 4800MHz, max 64GB | |
| Storage | 2*2.5” SATA3, up to 6Gbps transfer speeds; 1*Full-length mSATA with SATA3.0, supports up to 6Gbps transfer rate | |
| Chipset | Intel® H610 PCH | |
| Operating System | Windows 10/11; Linux/Ubuntu/Redhat/Debian options | |

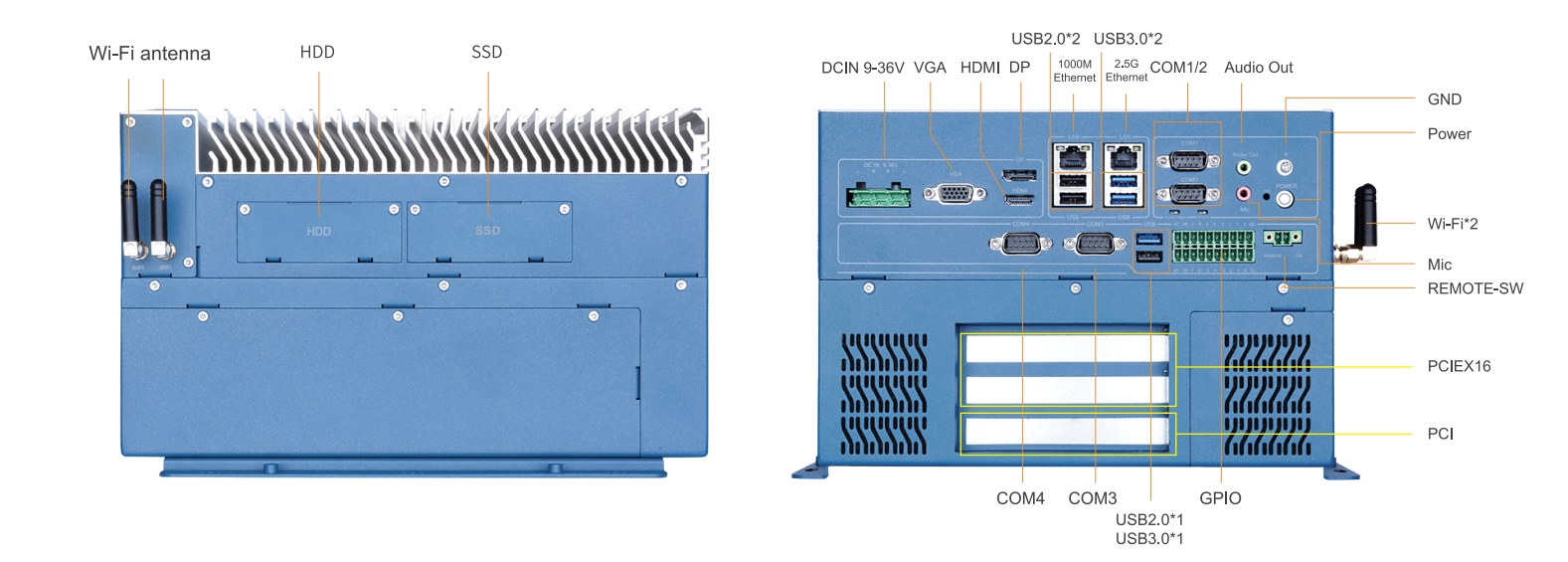

| I/O Ports | Extended Ports | 1*PCIE X16, 1*32 BIT PCI |
| USB | 3*USB3.0, 3*USB2.0, 4*USB2.0 pins (built-in) | |
| Ethernet | 2* RJ45 Ethernet (1000 Mbps + 2500 Mbps) | |
| Serial Port | 4*COM, supports upgrade to 6*COM (2*RS232/422/485 COM1, COM2 switchable by BIOS setting; 4*RS232/485 switchable by jump cap) | |
| Display Port | 1*DP, 1*HDMI, 1*VGA | |
| GPIO | 16-channel opto-isolated (can be upgraded with 16-channel non-isolated GPIOs) | |
| Wi-Fi/Bluetooth | 1*M.2 support Key-E interface WiFi/Bluetooth module | |
| 4G/5G | 1*M.2 support Key-B interface M.2 5G (3052/3042) module or M.2 4G (3042) module | |
| Audio | Realtek ALC897 audio, 1*Line out and 1*MIC high fidelity audio, support 5.1 channels | |
| Buttons/Indicators | 1* Power Button w/LED, 2-Pin Phoenix Terminal Remote Switch, AT-ATX DIP Switch, Clear Cmos DIP Switch | |
| Power | Power Supply | DC in 9-36V |
| Power Consumption | ≤150W | |
| Power Adapter | DC 24V adapter (optional) | |
| Reliability | Operating Temperature | -20℃～70℃ |
| Storage Temperature | -30°C~80°C | |
| Reliability Testing | Anti-static design, anti-surge design | |
| Mechanical | Material | SGCC galvanized sheet, aluminum alloy |
| Color | Silver + Dark Blue | |
| Installation | Wall-mounted, desktop, rack-mounted |
