4th Gen A Series Windows Panel PC
4th Gen A series X86 panel PC with a 10mm front panel,featuring intuitive touchscreen interfaces, industrial X86 All-In-One Panel PCs provide operators and technicians with easy access to information, controls, and data visualization, enhancing productivity and workflow efficiency.
TouchThink 4th Gen A Series Windows Panel PC
| J1900 Size | Resolution | Aspect Ratio | Contrast Ratio | Brightness | Send RFQ |
|---|---|---|---|---|---|
| 10.1″ | 1280*800 | 16:10 | 1000:1 | 300 cd/m2 | Inquiry Now |
| 10.4″ | 1024*768 | 4:3 | 1000:1 | 400 cd/m2 | Inquiry Now |
| 11.6″ | 1920*1080 | 16:9 | 1000:1 | 300 cd/m2 | Inquiry Now |
| 12.0″ | 1024*768 | 4:3 | 1000:1 | 500 cd/m2 | Inquiry Now |
| 15.0″ | 1024*768 | 4:3 | 1000:1 | 300 cd/m2 | Inquiry Now |
| 15.6″ | 1920*1080 | 16:9 | 800:1 | 300 cd/m2 | Inquiry Now |
| 17.0″ | 1280*1024 | 5:4 | 1000:1 | 300 cd/m2 | Inquiry Now |
| 17.3″ | 1920*1080 | 16:9 | 600:1 | 300 cd/m2 | Inquiry Now |
| 19.0″ | 1280*1024 | 5:4 | 1000:1 | 300 cd/m2 | Inquiry Now |
| 19.1″ | 1440*900 | 16:10 | 1000:1 | 300 cd/m2 | Inquiry Now |
| 21.5″ | 1920*1080 | 16:9 | 1000:1 | 300 cd/m2 | Inquiry Now |
| J4125 Size | Resolution | Aspect Ratio | Contrast Ratio | Brightness | Send RFQ |
|---|---|---|---|---|---|
| 10.1″ | 1280*800 | 16:10 | 1000:1 | 300 cd/m2 | J4125 |
| 10.4″ | 1024*768 | 4:3 | 1000:1 | 400 cd/m2 | J4125 |
| 11.6″ | 1920*1080 | 16:9 | 1000:1 | 300 cd/m2 | J4125 |
| 12.0″ | 1024*768 | 4:3 | 1000:1 | 500 cd/m2 | J4125 |
| 15.0″ | 1024*768 | 4:3 | 1000:1 | 300 cd/m2 | J4125 |
| 15.6″ | 1920*1080 | 16:9 | 800:1 | 300 cd/m2 | J4125 |
| 17.0″ | 1280*1024 | 5:4 | 1000:1 | 300 cd/m2 | J4125 |
| 17.3″ | 1920*1080 | 16:9 | 600:1 | 300 cd/m2 | J4125 |
| 19.0″ | 1280*1024 | 5:4 | 1000:1 | 300 cd/m2 | J4125 |
| 19.1″ | 1440*900 | 16:10 | 1000:1 | 300 cd/m2 | J4125 |
| 21.5″ | 1920*1080 | 16:9 | 1000:1 | 300 cd/m2 | J4125 |

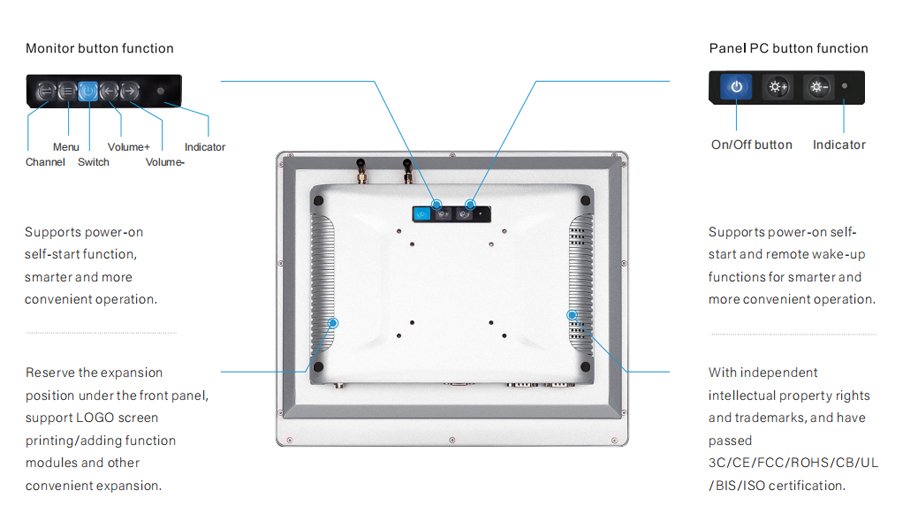

| Product Features |
|---|
Ultra-thin Frame Design
Industrial Technology Design
| Product Parameters | ||
|---|---|---|
| Hardware Parameters | CPU: Intel Celeron J1900 Quad Core 1.99GHz | Win7/10, Ubuntu,Centos,Redhat, Debian, Linux |
| CPU: Intel Celeron J4125 Quad Core 2.0GHz | Win10/11, Ubuntu,Centos,Linux | |
| CPU: Intel Celeron J6412 Quad Core 2.6GHz | Win10/11, Ubuntu,Centos,Linux | |
| Memory | 4G/8G/16G/32G Optional | |
| Storage | 64G/128G/256G/512G SSD, 1T/2T HDD Optional | |
| Integrated Graphics | Intel HD Graphics | |
| WIFI | Dual band 2.4G&5G | |
| BlueTooth | Support | |
| Network Support | 4G, Ethernet, WiFi/Bluetooth support, wireless peripheral expansion | |
| Screen Parameters | Panel Type | Industrial control screen |
| Viewing Angle | Wide view / full view | |
| Backlight Type | LED, use time >=50000H | |
| Brightness | 300cd/m2 (can be customized =< 1500cd/m2) | |
| Display Color | 16.7M | |
| Contrast Ratio | 1000:1 |
| Touch Parameters | Projection capactivite touch Touch Point: 10-point Light Transmittance: >=88% Input Mode: handwriting or capactivite pen Standard Protocol:USB | Resistive touch 4-5wire/5 Wire Touch Point: single point Light Transmittance: >=78% Input Mode: Fingertip or stylus Standard Protocol:USB | Non-touch Light Transmittance: >=92% | ||
| Interface Parameters | DC Port | 1*DC2.1(DC 12-36V) |
| HDMI | High-definition audio digital signal transmission, support HDMI data input. | |
| SIM | 1*SIM, Supporting various formats (Depending on 3G/4G module) | |
| Network interface | 1*LAN, 10M/100M/1000M adaptive Ethernet | |
| COM | 2*RS232 | |
| Audio interface | 1*Audio I/O, Support audio input and output |
| Environment Parameters | Working Temperature | -10°C~60°C |
| Storage Temperature | -20°C~70°C | |
| Relative Humidity | Humidity: 95% Non-Condensing | |
| Vibration Protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis | |
| Impact Protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Other Parameters | Power input | DC 12V~36V |
| Static power | 18W | |
| Installation Method | Supports snap-embedded,wall edbedded,wall mounted,desktop,louvered,cantilever-mounted,boom-mounted,etc. | |
| Warranty Policy | Three years ( one year free warranty ) |
